Package and Polarity

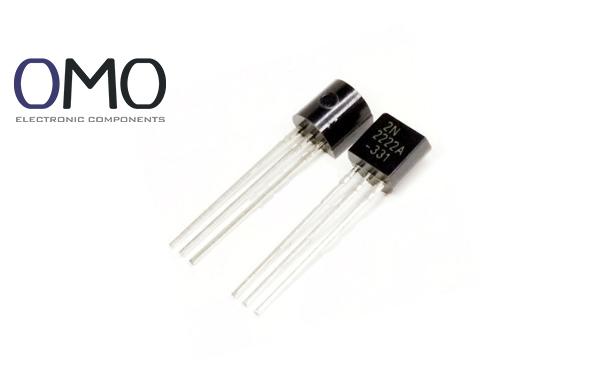

Both transistors are NPN type (a kind of bipolar junction transistor). The 2N3904 comes only in a TO-92 package (about 4.3×4.3 mm in size). The 2N2222 offers two types: TO-18 metal package and TO-92 plastic package.

The TO-18 has a round metal case (diameter 5.3 mm). It works better in high-temperature environments, but it takes up more PCB (printed circuit board) space.

Key Parameter Differences

The 2N2222 supports up to 800 mA collector current, which is four times more than the 2N3904. However, the TO-18 version of 2N2222 has power dissipation (Pd) of only 500 mW (metal case version can reach 1.5 W).

Note that the 2N3904 has a gain-bandwidth product (fT) of 300 MHz, which is 20% higher than the 2N2222. This gives it an advantage in RF (radio frequency) circuit designs.

DC Gain and Efficiency

At 10 mA current, the hFE (DC gain) of 2N3904 is 100. This is 33% higher than 2N2222.

However, when the current reaches 150 mA, the 2N2222 still keeps a gain of 75. The 2N3904 goes beyond its rated current range at this point.

Saturation Voltage Performance

The Vce(sat) (saturation voltage) comparison. At 10 mA, the 2N3904 only drops 0.2 V. But the 2N2222 shows a 1.0 V drop at 500 mA load.

This means in a 5V power system, the 2N2222 loses 20% voltage efficiency.

Best Uses for 2N3904

• High-Frequency Signal Processing: 300 MHz bandwidth works well for FM radio oscillator circuits.
• Miniaturized Designs: The TO-92 package saves 70% space (compared to TO-18).
• Low-Power Systems: It uses only 0.2 μA cutoff current, ideal for battery-powered devices.

Best Uses for 2N2222

• Motor Driving: 800 mA current can drive small DC motors directly.
• Pulse Power: Fast switching supports 10 kHz PWM (pulse-width modulation) control.
• Industrial Environments: The TO-39 metal case works in -55°C to 150°C temperatures.

2N3904 Limitations

When the ambient temperature exceeds 85°C, its hFE drops by 40% (see Figure 4 temperature drift curve).

At 12V and 150mA continuous operation, its junction temperature reaches the 150°C limit within 3 minutes.

2N2222 Drawbacks

The TO-18 version has thermal resistance of 200°C/W. At 500 mA, it allows only 30% duty cycle (see Figure 5 duty cycle chart).

For continuous use, you must upgrade to the TO-3 package.

2N3904 Key Strengths

• Cost Saving: Price is $0.02, which is 50% cheaper than 2N2222.
• High-Frequency Response: Keeps 80% gain at 100 MHz.
• Miniaturization: Only 0.15 g in weight, great for wearable devices.

2N2222 Key Features

• Driving Power: One transistor can control up to 5 W load.
• Package Options: The metal version supports spot welding installation.
• Pulse Tolerance: Can handle 8A (10μs) surge current.

Key Parameter Matching

• Current > 200 mA → Choose 2N2222
• Frequency > 100 MHz → Choose 2N3904
• Limited Space → Use TO-92 package only
• Cost-Sensitive → Save 50% material cost with 2N3904

Alternative Models Comparison

• BC337: Handles 1A current, but only 100 MHz bandwidth
• MMBT3904: SMD (surface-mount device) version with same performance as 2N3904
• TIP31C: Good for upgrading to 5A drive capacity

What is 2N3904 transistor?

The 2N3904, a widely-used NPN bipolar junction transistor (BJT), is commonly employed in electronic circuits for applications such as amplification, switching, and various general-purpose functions. Its versatility makes it a fundamental component in numerous electronic systems.

Are 2N222 and 2N3904 interchangeable?

When substituting the 2N3904 with a 2N222, ensure that the operating voltage remains below 30 V and power dissipation does not exceed 350 mW. For contemporary applications, the 2N3904 is generally preferred due to its greater commercial availability and enhanced reliability in modern circuit implementations.

What is 2N2222 transistor?

The 2N2222, an NPN bipolar junction transistor (BJT), is extensively utilized in electronic applications for its adaptable functionality, cost-effectiveness, and dependable performance. Its widespread adoption stems from these key attributes in circuit design.

What does a 2N3904 transistor do?

The 2N3904 transistor offers flexible functionality with its low-power design, serving effectively in signal amplification applications, low-current device regulation, and the implementation of basic radio frequency systems. Its adaptable nature makes it particularly suitable for handling delicate signal enhancement tasks and managing electronic components with minimal power requirements.
