VNV20N07-E

VNV20N07-E Overview

Product belongs to the OMNIFET, VIPower series. Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSO-10 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: - Output-Type: N-Channel Interface: On/Off Supplier device package: 10-PowerSO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 50 mOhm (Max). Voltage-Load range is 55V (Max). Our product delivers a 14A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 83000 mW This product operates at a 18 V supply voltage for reliable performance. Output current: 14 A Max on-resistance of 50 mOhms

VNV20N07-E Image

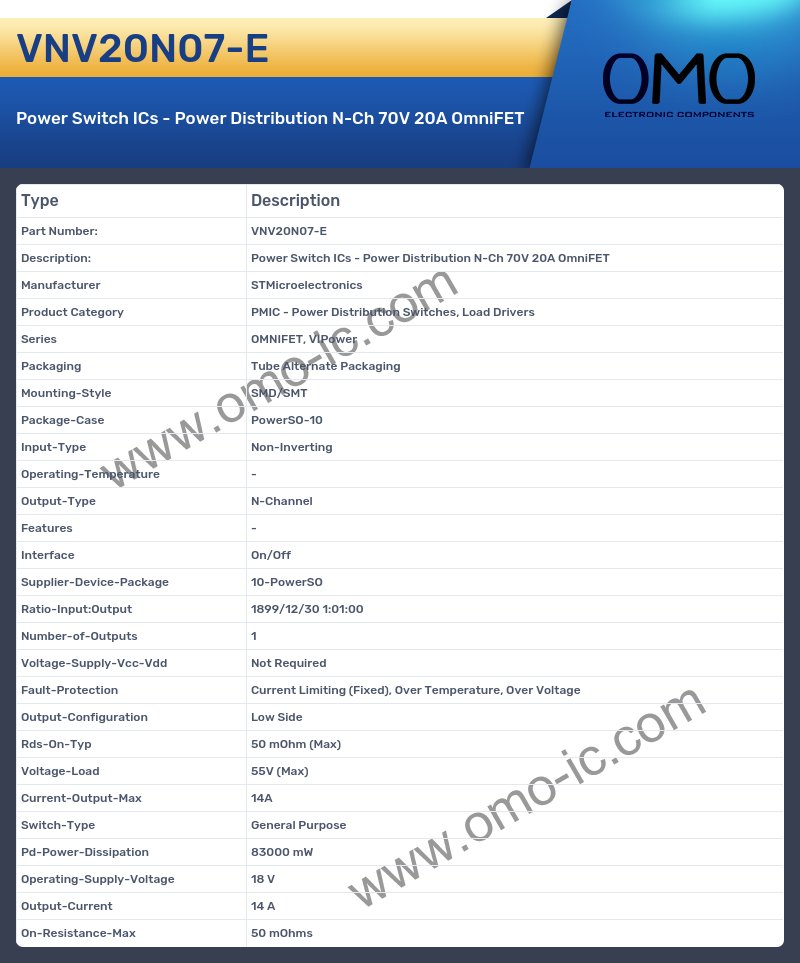

VNV20N07-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET, VIPower
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSO-10
• Input-Type Non-Inverting
• Operating-Temperature -
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package 10-PowerSO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 50 mOhm (Max)
• Voltage-Load 55V (Max)
• Current-Output-Max 14A
• Switch-Type General Purpose
• Pd-Power-Dissipation 83000 mW
• Operating-Supply-Voltage 18 V
• Output-Current 14 A
• On-Resistance-Max 50 mOhms
