VN330SPTR-E

VN330SPTR-E Overview

Product belongs to the VN330SP-E series. Type: High Side Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSO-10 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 10-PowerSO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 4 Supply Voltage: Not Required The High Side. The 200 mOhm (Max). Voltage-Load range is 10 V ~ 36 V. Our product delivers a 700mA of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Yes Maximum operating temperature of + 125 C Minimum operating temperature: - 25 C 6 mA is 92 nA. Output current: 700 mA This product has a 20 us of 16 ns. This product has a 50 us of 16 ns. Maximum supply voltage of 36 V Minimum supply voltage is 10 V Number-of-Drivers: 4 Driver This product has a Maximum-Turn-Off-Delay-Time of 30 us. 40 us maximum turn-on delay time

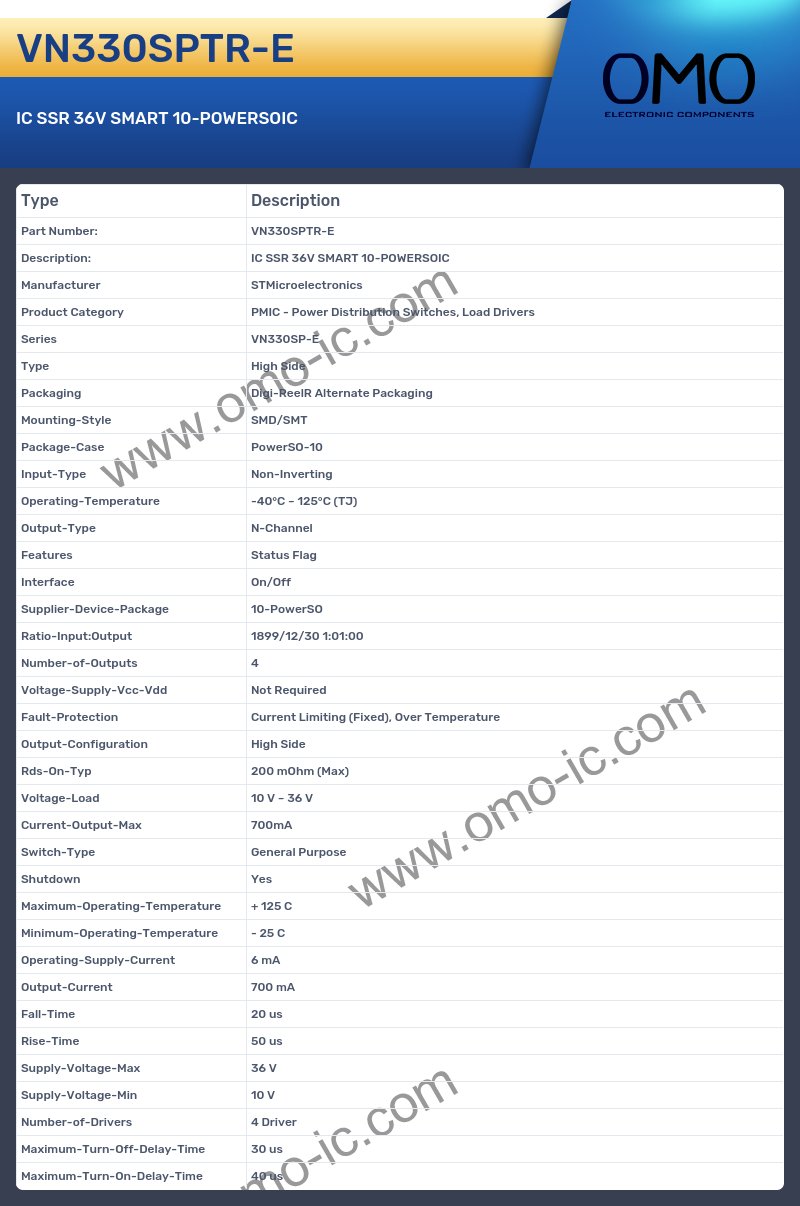

VN330SPTR-E Image

VN330SPTR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VN330SP-E
• Type High Side
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSO-10
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package 10-PowerSO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 200 mOhm (Max)
• Voltage-Load 10 V ~ 36 V
• Current-Output-Max 700mA
• Switch-Type General Purpose
• Shutdown Yes
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Current 6 mA
• Output-Current 700 mA
• Fall-Time 20 us
• Rise-Time 50 us
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 10 V
• Number-of-Drivers 4 Driver
• Maximum-Turn-Off-Delay-Time 30 us
• Maximum-Turn-On-Delay-Time 40 us
