VIPER53EDIP-E

VIPER53EDIP-E Overview

Product belongs to the VIPER series. Type: Off Line Switcher Tube is the packaging method for this product Weight of 0.080001 oz Through Hole Mounting-Style Wide + 25 C to + 125 C operating temperature range for diverse applications DIP-8 Operational temperature range: -40°C ~ 150°C (TC) Through Hole mounting type Supplier device package: 8-DIP Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has Yes. Topology: Flyback feedback Supply Voltage: 8.4 V ~ 19 V This product features 'Frequency-Switching' at Up to 300kHz for optimal performance. The Control-Features include EN, Frequency Control, Soft Start function. The product's Isolated is non-isolated. Maximum operating temperature of + 125 C 9 mA is 92 nA. Output current: 2.3 A Switching frequency is 300 kHz This product requires a minimum 9.3 V of 2.95 V. This product has a maximum 17 V of 20 V.

VIPER53EDIP-E Image

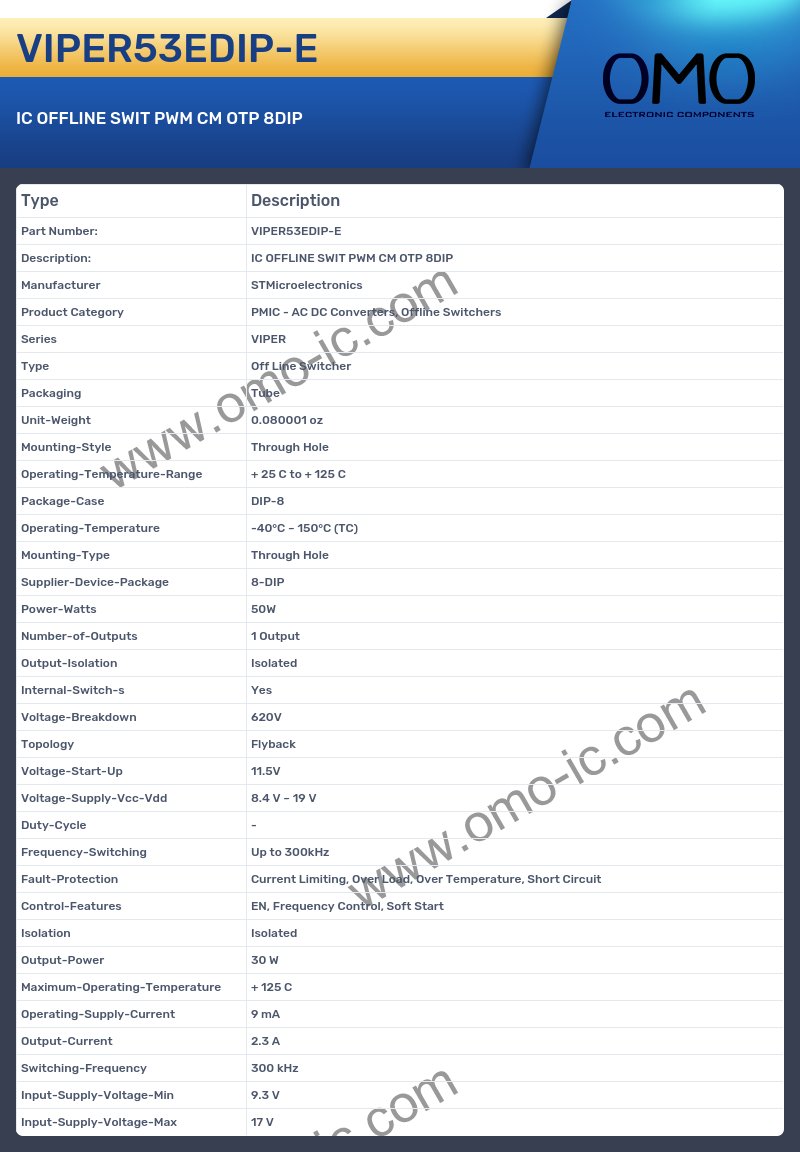

VIPER53EDIP-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series VIPER
• Type Off Line Switcher
• Packaging Tube
• Unit-Weight 0.080001 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range + 25 C to + 125 C
• Package-Case DIP-8
• Operating-Temperature -40°C ~ 150°C (TC)
• Mounting-Type Through Hole
• Supplier-Device-Package 8-DIP
• Power-Watts 50W
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown 620V
• Topology Flyback
• Voltage-Start-Up 11.5V
• Voltage-Supply-Vcc-Vdd 8.4 V ~ 19 V
• Duty-Cycle -
• Frequency-Switching Up to 300kHz
• Fault-Protection Current Limiting, Over Load, Over Temperature, Short Circuit
• Control-Features EN, Frequency Control, Soft Start
• Isolation Isolated
• Output-Power 30 W
• Maximum-Operating-Temperature + 125 C
• Operating-Supply-Current 9 mA
• Output-Current 2.3 A
• Switching-Frequency 300 kHz
• Input-Supply-Voltage-Min 9.3 V
• Input-Supply-Voltage-Max 17 V
