VIPER37LE

VIPER37LE Overview

Product belongs to the VIPer plus series. Type: Off Line Switcher Tube is the packaging method for this product Through Hole Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SDIP-10 Operational temperature range: -40°C ~ 150°C (TJ) Through Hole mounting type Supplier device package: 10-SDIP Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has Yes. Topology: Flyback feedback Supply Voltage: 8.5 V ~ 23.5 V This product features 'Frequency-Switching' at 60kHz for optimal performance. The Control-Features include - function. Maximum operating temperature of + 125 C 2.5 mA is 92 nA. Switching frequency is 60 kHz Maximum duty cycle of 80 % This product requires a minimum 8.5 V of 2.95 V. This product has a maximum 23.5 V of 20 V.

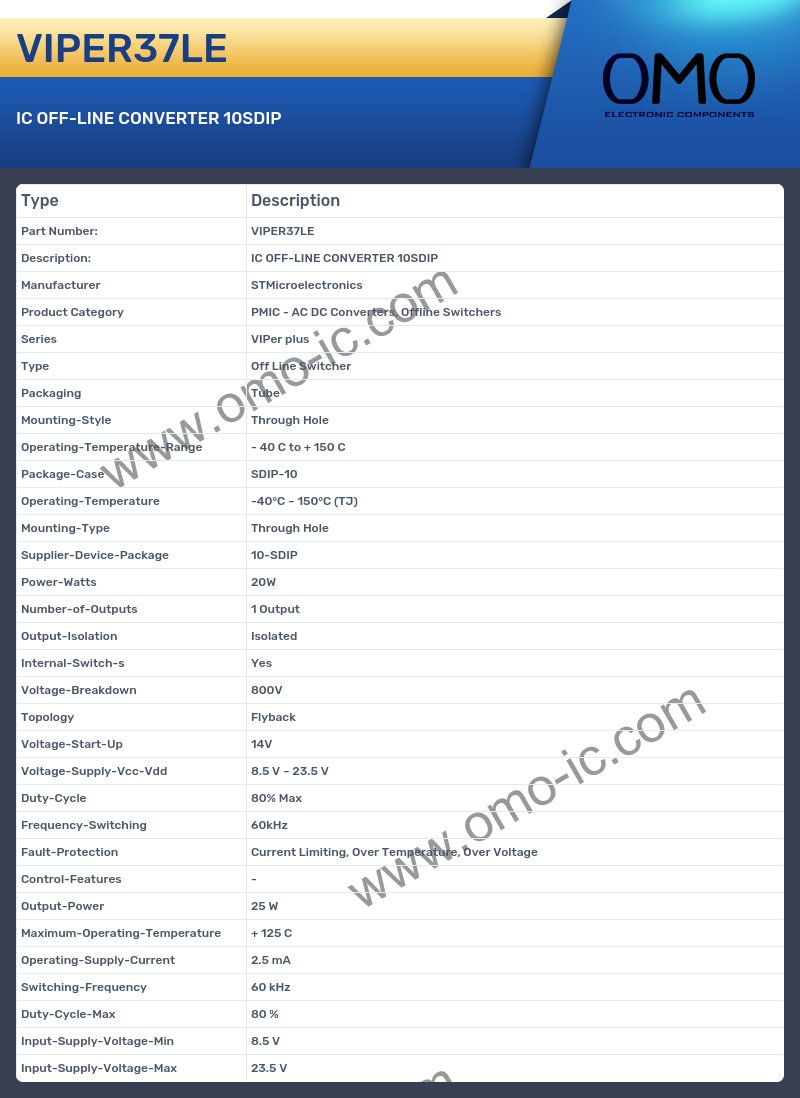

VIPER37LE Image

VIPER37LE Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series VIPer plus
• Type Off Line Switcher
• Packaging Tube
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case SDIP-10
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Supplier-Device-Package 10-SDIP
• Power-Watts 20W
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown 800V
• Topology Flyback
• Voltage-Start-Up 14V
• Voltage-Supply-Vcc-Vdd 8.5 V ~ 23.5 V
• Duty-Cycle 80% Max
• Frequency-Switching 60kHz
• Fault-Protection Current Limiting, Over Temperature, Over Voltage
• Control-Features -
• Output-Power 25 W
• Maximum-Operating-Temperature + 125 C
• Operating-Supply-Current 2.5 mA
• Switching-Frequency 60 kHz
• Duty-Cycle-Max 80 %
• Input-Supply-Voltage-Min 8.5 V
• Input-Supply-Voltage-Max 23.5 V
