VIPER22ASTR-E

VIPER22ASTR-E Overview

Product belongs to the VIPER series. Type: Off Line Switcher Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SO-8 Operational temperature range: -40°C ~ 150°C (TC) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has Yes. Topology: Flyback feedback Supply Voltage: 8 V ~ 38 V This product features 'Frequency-Switching' at 60kHz for optimal performance. The Control-Features include - function. Maximum operating temperature of + 150 C 4.5 mA is 92 nA. Switching frequency is 60 kHz This product requires a minimum 9 V of 2.95 V. This product has a maximum 38 V of 20 V.

VIPER22ASTR-E Image

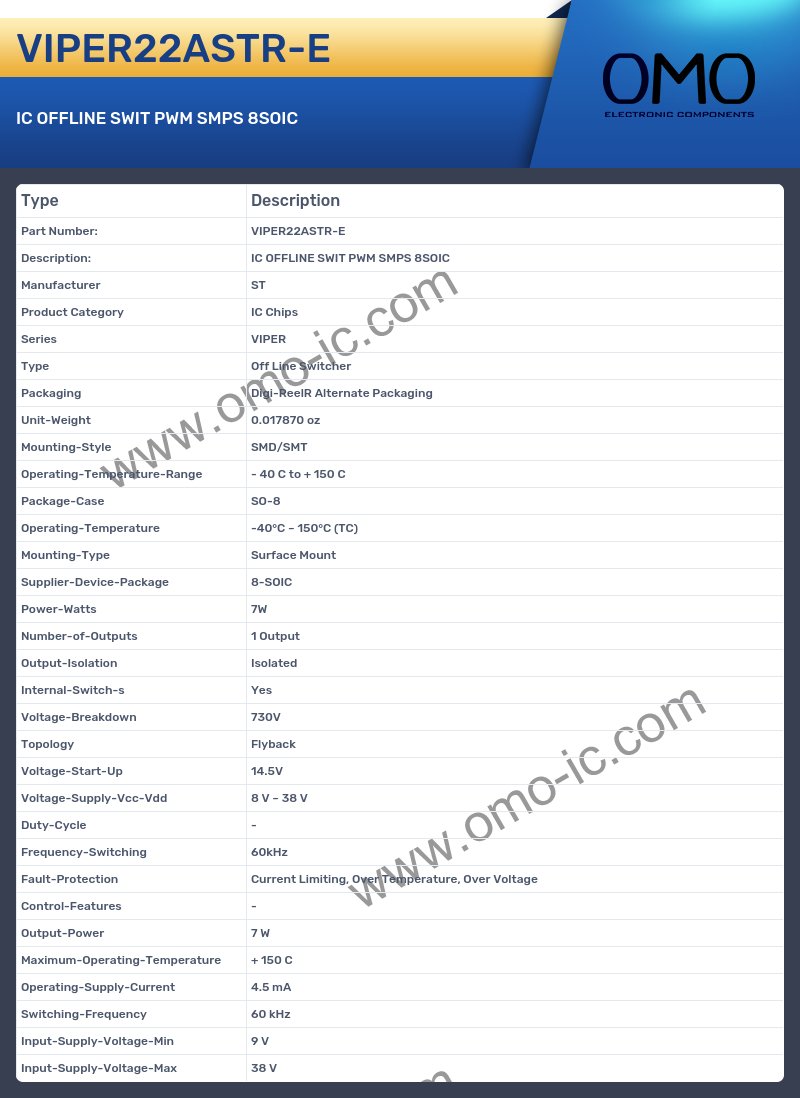

VIPER22ASTR-E Specifications

• Manufacturer ST
• Product Category IC Chips
• Series VIPER
• Type Off Line Switcher
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case SO-8
• Operating-Temperature -40°C ~ 150°C (TC)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SOIC
• Power-Watts 7W
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown 730V
• Topology Flyback
• Voltage-Start-Up 14.5V
• Voltage-Supply-Vcc-Vdd 8 V ~ 38 V
• Duty-Cycle -
• Frequency-Switching 60kHz
• Fault-Protection Current Limiting, Over Temperature, Over Voltage
• Control-Features -
• Output-Power 7 W
• Maximum-Operating-Temperature + 150 C
• Operating-Supply-Current 4.5 mA
• Switching-Frequency 60 kHz
• Input-Supply-Voltage-Min 9 V
• Input-Supply-Voltage-Max 38 V
