VIPER20ASPTR-E

VIPER20ASPTR-E Overview

Product belongs to the VIPER series. Type: PWM Low-Standby High Performance Controller Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PowerSO-10 Operational temperature range: - Surface Mount mounting type Supplier device package: 10-PowerSO Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has Yes. Topology: Flyback feedback Supply Voltage: 8 V ~ 15 V This product features 'Frequency-Switching' at Up to 200kHz for optimal performance. The Control-Features include - function. Output voltage: 700 V 13 mA is 92 nA. Output current: 500 mA Switching frequency is 100 kHz Maximum duty cycle of 50 % This product requires a minimum 12.6 V of 2.95 V. This product has a maximum 13.4 V of 20 V.

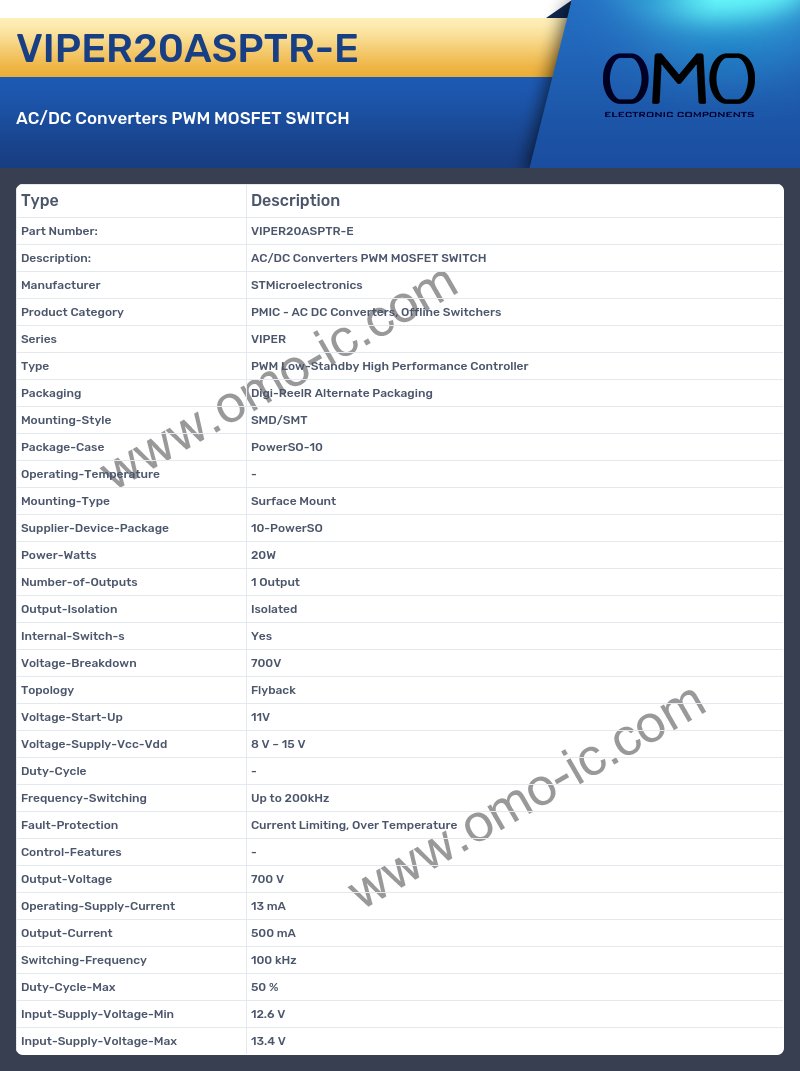

VIPER20ASPTR-E Image

VIPER20ASPTR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series VIPER
• Type PWM Low-Standby High Performance Controller
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PowerSO-10
• Operating-Temperature -
• Mounting-Type Surface Mount
• Supplier-Device-Package 10-PowerSO
• Power-Watts 20W
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown 700V
• Topology Flyback
• Voltage-Start-Up 11V
• Voltage-Supply-Vcc-Vdd 8 V ~ 15 V
• Duty-Cycle -
• Frequency-Switching Up to 200kHz
• Fault-Protection Current Limiting, Over Temperature
• Control-Features -
• Output-Voltage 700 V
• Operating-Supply-Current 13 mA
• Output-Current 500 mA
• Switching-Frequency 100 kHz
• Duty-Cycle-Max 50 %
• Input-Supply-Voltage-Min 12.6 V
• Input-Supply-Voltage-Max 13.4 V
