VIPER12ADIP-E

VIPER12ADIP-E Overview

Product belongs to the VIPER series. Type: Off Line Switcher Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications PDIP-8 Operational temperature range: -40°C ~ 150°C (TC) Through Hole mounting type Supplier device package: 8-DIP Number-of-Outputs: 1 Output Output-Isolation: Non-Isolated This product has Yes. Topology: - feedback Supply Voltage: 9 V ~ 38 V This product features 'Frequency-Switching' at 60kHz for optimal performance. The Control-Features include - function. Maximum operating temperature of + 125 C Output voltage: 38 V 4.5 mA is 92 nA. Switching frequency is 60 kHz Maximum duty cycle of 16 % This product requires a minimum 9 V of 2.95 V. This product has a maximum 38 V of 20 V.

VIPER12ADIP-E Image

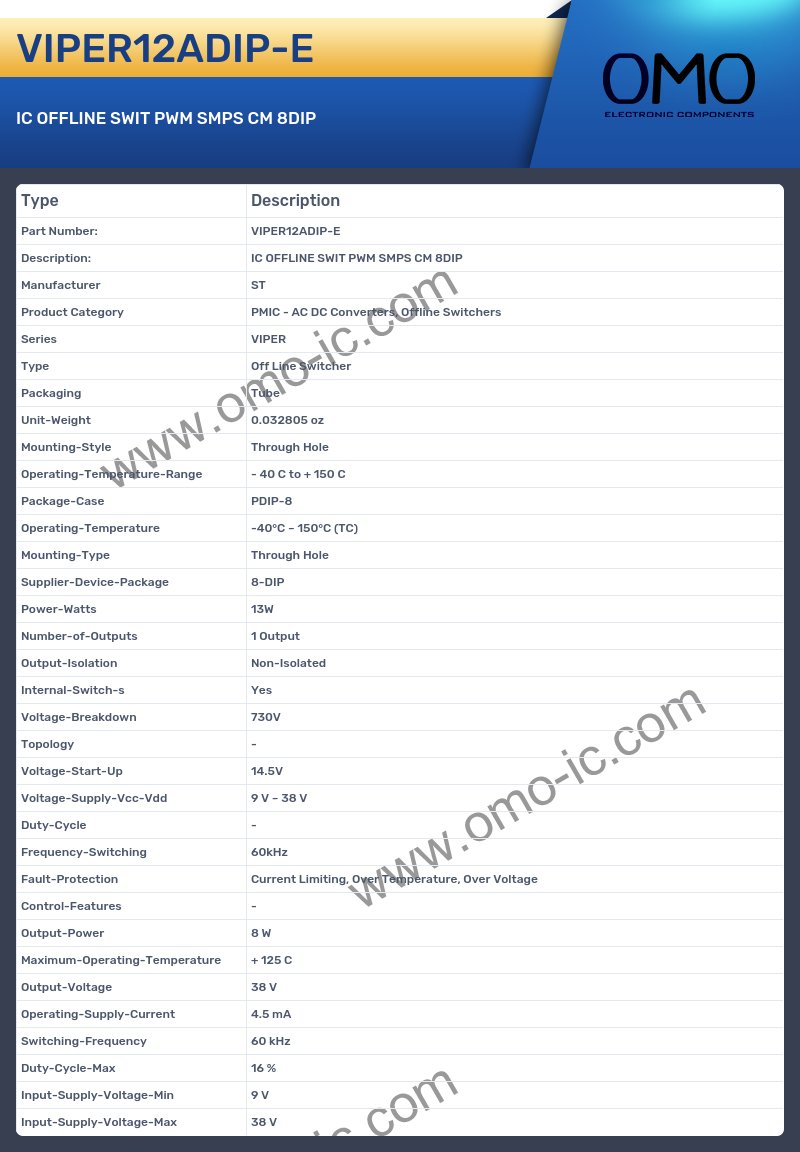

VIPER12ADIP-E Specifications

• Manufacturer ST
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series VIPER
• Type Off Line Switcher
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case PDIP-8
• Operating-Temperature -40°C ~ 150°C (TC)
• Mounting-Type Through Hole
• Supplier-Device-Package 8-DIP
• Power-Watts 13W
• Number-of-Outputs 1 Output
• Output-Isolation Non-Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown 730V
• Topology -
• Voltage-Start-Up 14.5V
• Voltage-Supply-Vcc-Vdd 9 V ~ 38 V
• Duty-Cycle -
• Frequency-Switching 60kHz
• Fault-Protection Current Limiting, Over Temperature, Over Voltage
• Control-Features -
• Output-Power 8 W
• Maximum-Operating-Temperature + 125 C
• Output-Voltage 38 V
• Operating-Supply-Current 4.5 mA
• Switching-Frequency 60 kHz
• Duty-Cycle-Max 16 %
• Input-Supply-Voltage-Min 9 V
• Input-Supply-Voltage-Max 38 V
