VIPER06LSTR

VIPER06LSTR Overview

Product belongs to the VIPer plus series. Type: PWM Low-Standby High Performance Controller Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications SSO-10 Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 10-SSO Number-of-Outputs: 1 Output Output-Isolation: Either This product has Yes. Topology: Buck, Flyback feedback Supply Voltage: 11.5 V ~ 23.5 V This product features 'Frequency-Switching' at 60kHz for optimal performance. The Control-Features include - function. Maximum operating temperature of + 125 C Output voltage: 800 V 1.45 mA is 92 nA. Switching frequency is 60 kHz Maximum duty cycle of 80 % This product requires a minimum 11.5 V of 2.95 V. This product has a maximum 23.5 V of 20 V.

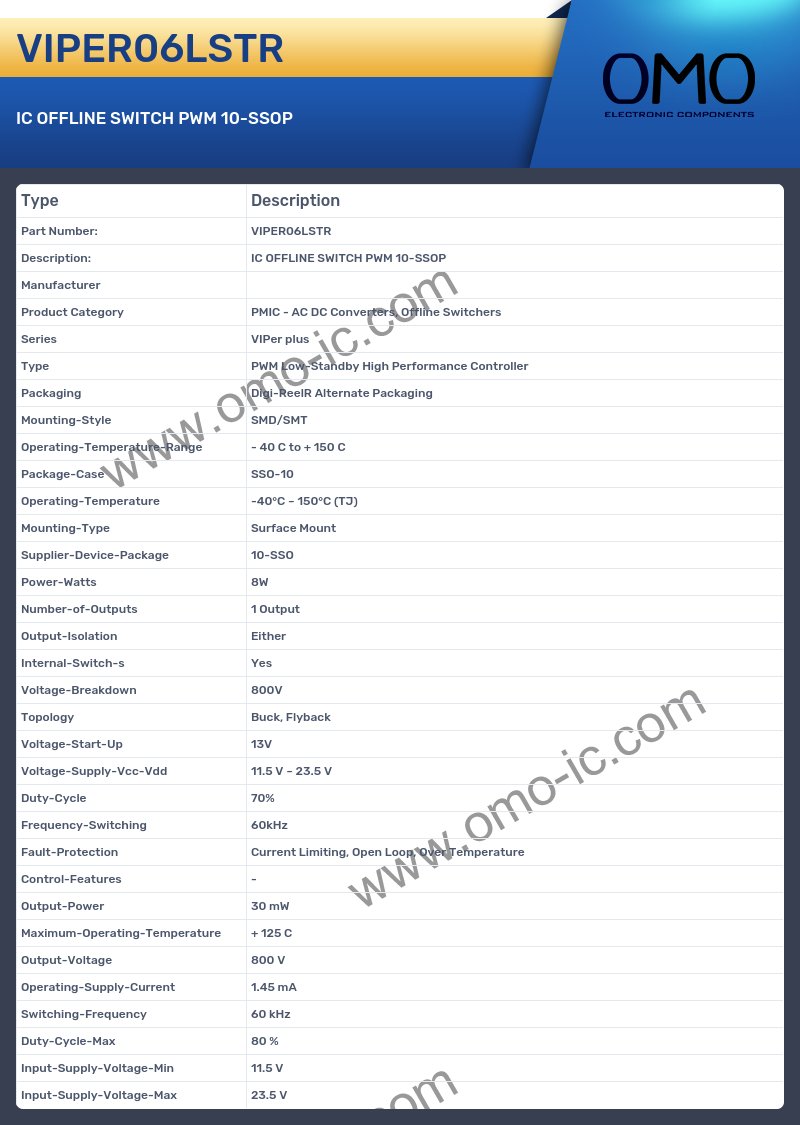

VIPER06LSTR Image

VIPER06LSTR Specifications

• Manufacturer
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series VIPer plus
• Type PWM Low-Standby High Performance Controller
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case SSO-10
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 10-SSO
• Power-Watts 8W
• Number-of-Outputs 1 Output
• Output-Isolation Either
• Internal-Switch-s Yes
• Voltage-Breakdown 800V
• Topology Buck, Flyback
• Voltage-Start-Up 13V
• Voltage-Supply-Vcc-Vdd 11.5 V ~ 23.5 V
• Duty-Cycle 70%
• Frequency-Switching 60kHz
• Fault-Protection Current Limiting, Open Loop, Over Temperature
• Control-Features -
• Output-Power 30 mW
• Maximum-Operating-Temperature + 125 C
• Output-Voltage 800 V
• Operating-Supply-Current 1.45 mA
• Switching-Frequency 60 kHz
• Duty-Cycle-Max 80 %
• Input-Supply-Voltage-Min 11.5 V
• Input-Supply-Voltage-Max 23.5 V
