USBULC1606-4M8

USBULC1606-4M8 Overview

Product belongs to the USB series. Type: Steering (Rail to Rail) Digi-ReelR is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 8-UFQFN Exposed Pad Operational temperature range: -30°C ~ 85°C (TA) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 4 Channel Supplier device package: 8-UQFN (1.7x1.35) 3 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of -. The Voltage-Breakdown-Min is -. Yes Power-Line-Protection - Capacitance-Frequency Power-off control: 70 W Maximum operating temperature of + 85 C Minimum operating temperature: - 30 C Breakdown-Voltage: 6.8 V The Cd-Diode-Capacitance is 0.95 pF 6 V working voltage Polarity: Unidirectional 2.5 A of IPP, Peak Pulse, and Current 15 kV of Vesd-Voltage-ESD-Contact - Vesd-Voltage-ESD-Air-Gap

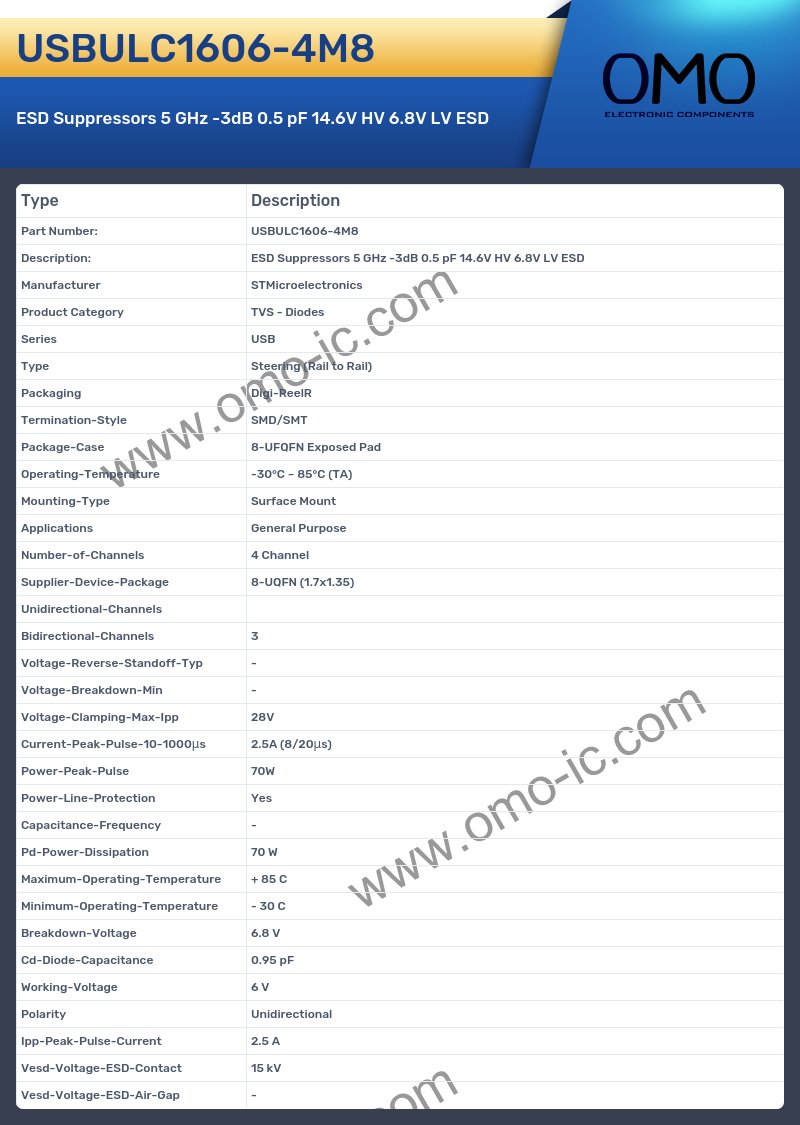

USBULC1606-4M8 Image

USBULC1606-4M8 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series USB
• Type Steering (Rail to Rail)
• Packaging Digi-ReelR
• Termination-Style SMD/SMT
• Package-Case 8-UFQFN Exposed Pad
• Operating-Temperature -30°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 4 Channel
• Supplier-Device-Package 8-UQFN (1.7x1.35)
• Unidirectional-Channels
• Bidirectional-Channels 3
• Voltage-Reverse-Standoff-Typ -
• Voltage-Breakdown-Min -
• Voltage-Clamping-Max-Ipp 28V
• Current-Peak-Pulse-10-1000μs 2.5A (8/20μs)
• Power-Peak-Pulse 70W
• Power-Line-Protection Yes
• Capacitance-Frequency -
• Pd-Power-Dissipation 70 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 30 C
• Breakdown-Voltage 6.8 V
• Cd-Diode-Capacitance 0.95 pF
• Working-Voltage 6 V
• Polarity Unidirectional
• Ipp-Peak-Pulse-Current 2.5 A
• Vesd-Voltage-ESD-Contact 15 kV
• Vesd-Voltage-ESD-Air-Gap -
