USBDF01W5

USBDF01W5 Overview

Product belongs to the IPAD series. Type: Low Pass Digi-ReelR Alternate Packaging is the packaging method for this product The Height of the product is 0.043" (1.10mm). 5-TSSOP, SC-70-5, SOT-353 RC (Pi) is the technology used. Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Rated voltage range of - Versatile USB applications for maximum usability Number of channels: 2 Filter order is 2nd -25dB @ 900MHz of 10dB for superior noise reduction 33 Ohms Resistance Channel There are two Values: R = 33 Ohms, C = 47pF. ESD-Protection": " Yes

USBDF01W5 Image

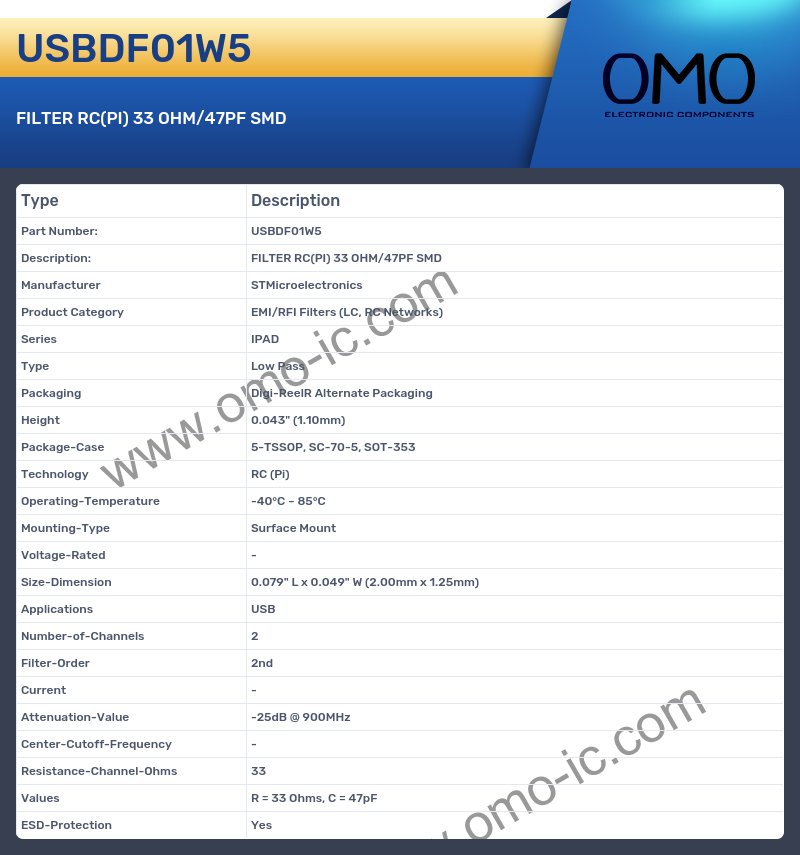

USBDF01W5 Specifications

• Manufacturer STMicroelectronics
• Product Category EMI/RFI Filters (LC, RC Networks)
• Series IPAD
• Type Low Pass
• Packaging Digi-ReelR Alternate Packaging
• Height 0.043" (1.10mm)
• Package-Case 5-TSSOP, SC-70-5, SOT-353
• Technology RC (Pi)
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Voltage-Rated -
• Size-Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
• Applications USB
• Number-of-Channels 2
• Filter-Order 2nd
• Current -
• Attenuation-Value -25dB @ 900MHz
• Center-Cutoff-Frequency -
• Resistance-Channel-Ohms 33
• Values R = 33 Ohms, C = 47pF
• ESD-Protection Yes
