USB6B1

USB6B1 Overview

Product belongs to the USB series. Type: Steering (Rail to Rail) Tube Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 8-SOIC (0.154", 3.90mm Width) Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Versatile General Purpose applications for maximum usability Number of channels: 2 Channel Supplier device package: 8-SO 2 Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5.25V. The Voltage-Breakdown-Min is 6V. Yes Power-Line-Protection - Capacitance-Frequency Power-off control: 500 W Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Breakdown-Voltage: 6 V The Cd-Diode-Capacitance is 15 pF 5.25 V working voltage Polarity: Unidirectional 8 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap This product operates at a 5.25 V supply voltage for reliable performance.

USB6B1 Image

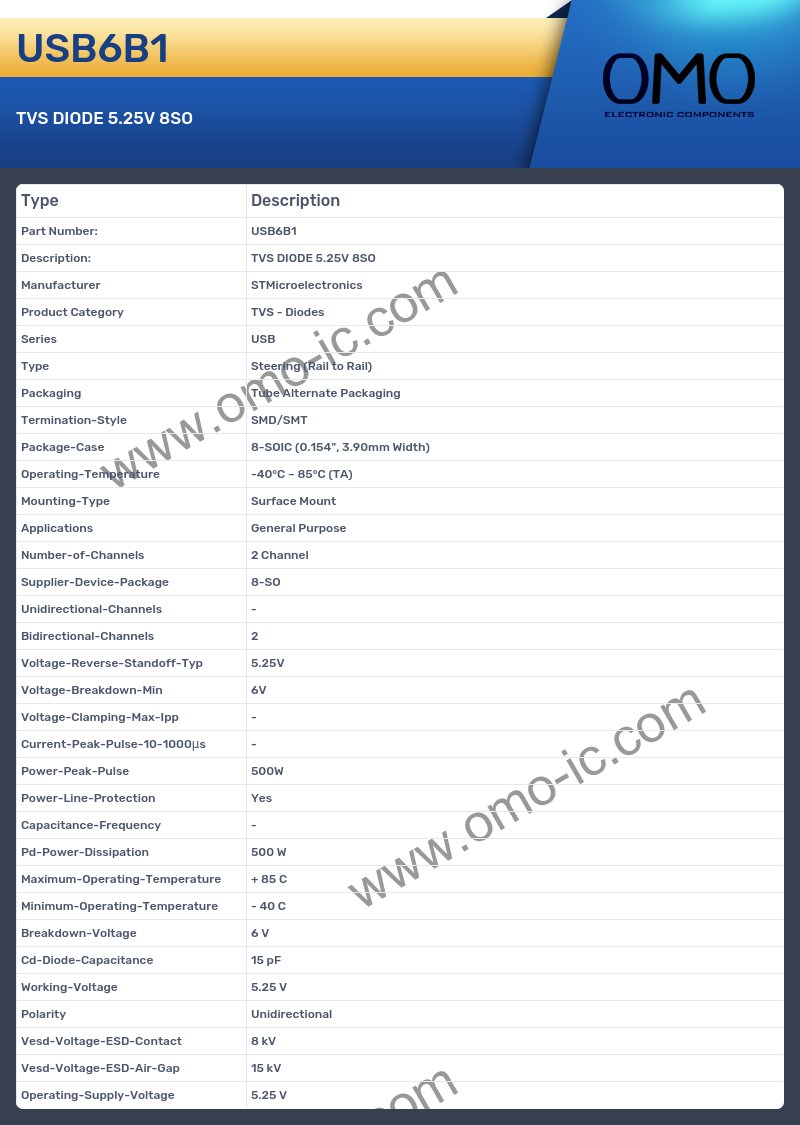

USB6B1 Specifications

• Manufacturer STMicroelectronics
• Product Category TVS - Diodes
• Series USB
• Type Steering (Rail to Rail)
• Packaging Tube Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Applications General Purpose
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-SO
• Unidirectional-Channels -
• Bidirectional-Channels 2
• Voltage-Reverse-Standoff-Typ 5.25V
• Voltage-Breakdown-Min 6V
• Voltage-Clamping-Max-Ipp -
• Current-Peak-Pulse-10-1000μs -
• Power-Peak-Pulse 500W
• Power-Line-Protection Yes
• Capacitance-Frequency -
• Pd-Power-Dissipation 500 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 6 V
• Cd-Diode-Capacitance 15 pF
• Working-Voltage 5.25 V
• Polarity Unidirectional
• Vesd-Voltage-ESD-Contact 8 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
• Operating-Supply-Voltage 5.25 V
