ULQ2004ADR

ULQ2004ADR Overview

Product belongs to the ULQ2004A series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004984 oz SMD/SMT Mounting-Style 16-SOIC (0.154", 3.90mm Width) Surface Mount mounting type Supplier device package: 16-SOIC Configuration Array 7 Transistor type: 7 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at -. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A

ULQ2004ADR Image

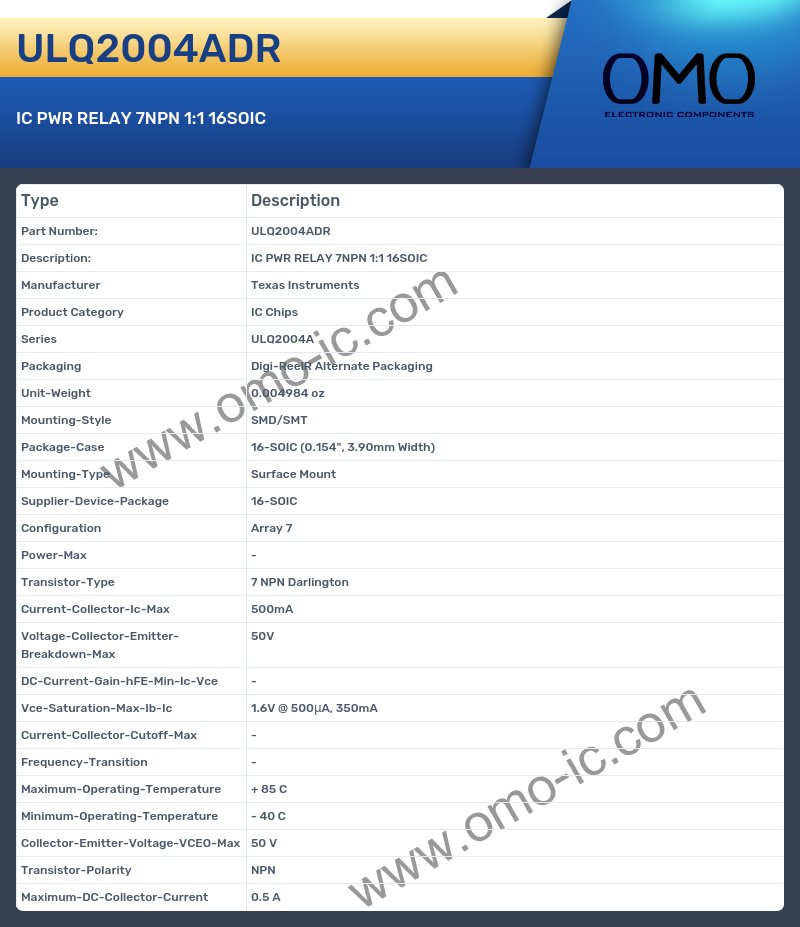

ULQ2004ADR Specifications

• Manufacturer Texas Instruments
• Product Category IC Chips
• Series ULQ2004A
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.004984 oz
• Mounting-Style SMD/SMT
• Package-Case 16-SOIC (0.154", 3.90mm Width)
• Mounting-Type Surface Mount
• Supplier-Device-Package 16-SOIC
• Configuration Array 7
• Power-Max -
• Transistor-Type 7 NPN Darlington
• Current-Collector-Ic-Max 500mA
• Voltage-Collector-Emitter-Breakdown-Max 50V
• DC-Current-Gain-hFE-Min-Ic-Vce -
• Vce-Saturation-Max-Ib-Ic 1.6V @ 500μA, 350mA
• Current-Collector-Cutoff-Max -
• Frequency-Transition -
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Collector-Emitter-Voltage-VCEO-Max 50 V
• Transistor-Polarity NPN
• Maximum-DC-Collector-Current 0.5 A
