| Mfr. #: | ULN2801A |
|---|---|
| निर्माता: | STMicroelectronics |
| विवरण: | Darlington Transistors Eight NPN Array |
| जीवन चक्र: | यस निर्माताबाट नयाँ। |
| डाटा पाना: | ULN2801A डाटा पाना |
Product belongs to the ULN2801A series. Tube is the packaging method for this product Weight of 0.044801 oz Through Hole Mounting-Style 18-DIP (0.300", 7.62mm) Through Hole mounting type Supplier device package: 18-DIP Configuration Octal Transistor type: 8 NPN Darlington Maximum current collector Ic is 500mA . Maximum collector-emitter breakdown voltage of 50V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 350mA, 2V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 1.6V @ 500μA, 350mA Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C Rated VCEO up to 50 V The transistor polarity is NPN. Max DC collector current: 0.5 A This product is capable of handling a 500 mA continuous collector current. Minimum hfe for DC collector-base gain is 1000.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

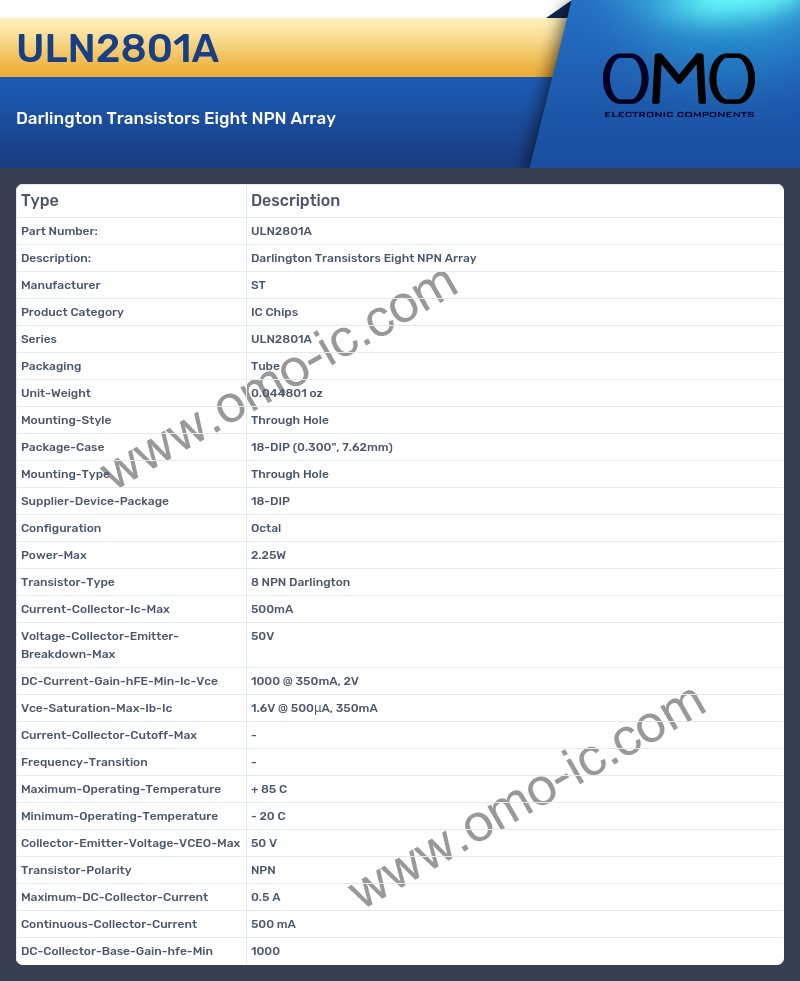

ULN2801A Specifications
A: What is the Series of the product?
Q: The Series of the product is ULN2801A.
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.044801 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed 18-DIP (0.300", 7.62mm)
A: At what frequency does the Mounting-Type?
Q: The product Mounting-Type is Through Hole.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 18-DIP.
A: Is the cutoff frequency of the product Configuration?
Q: Yes, the product's Configuration is indeed Octal
A: What is the Transistor-Type of the product?
Q: The Transistor-Type of the product is 8 NPN Darlington.
A: What is the Current-Collector-Ic-Max of the product?
Q: The Current-Collector-Ic-Max of the product is 500mA.
A: Is the cutoff frequency of the product Voltage-Collector-Emitter-Breakdown-Max?
Q: Yes, the product's Voltage-Collector-Emitter-Breakdown-Max is indeed 50V
A: At what frequency does the DC-Current-Gain-hFE-Min-Ic-Vce?
Q: The product DC-Current-Gain-hFE-Min-Ic-Vce is 1000 @ 350mA, 2V.
A: Is the cutoff frequency of the product Vce-Saturation-Max-Ib-Ic?
Q: Yes, the product's Vce-Saturation-Max-Ib-Ic is indeed 1.6V @ 500μA, 350mA
A: At what frequency does the Maximum-Operating-Temperature?
Q: The product Maximum-Operating-Temperature is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 20 C.
A: At what frequency does the Collector-Emitter-Voltage-VCEO-Max?
Q: The product Collector-Emitter-Voltage-VCEO-Max is 50 V.
A: What is the Transistor-Polarity of the product?
Q: The Transistor-Polarity of the product is NPN.
A: What is the Maximum-DC-Collector-Current of the product?
Q: The Maximum-DC-Collector-Current of the product is 0.5 A.
A: Is the cutoff frequency of the product Continuous-Collector-Current?
Q: Yes, the product's Continuous-Collector-Current is indeed 500 mA
A: Is the cutoff frequency of the product DC-Collector-Base-Gain-hfe-Min?
Q: Yes, the product's DC-Collector-Base-Gain-hfe-Min is indeed 1000
