UCC37322P

UCC37322P Overview

Product belongs to the UCC37322 series. Type: Low Side Tube is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style Configuration Non-Inverting Number-of-Outputs: 1 Power-off control: 350 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 1 mA is 92 nA. Output current: 9 A This product has a 20 ns of 16 ns. This product has a 35 ns of 16 ns. Maximum supply voltage of 15 V Minimum supply voltage is 4 V PDIP-8 Number-of-Drivers: 1 Driver

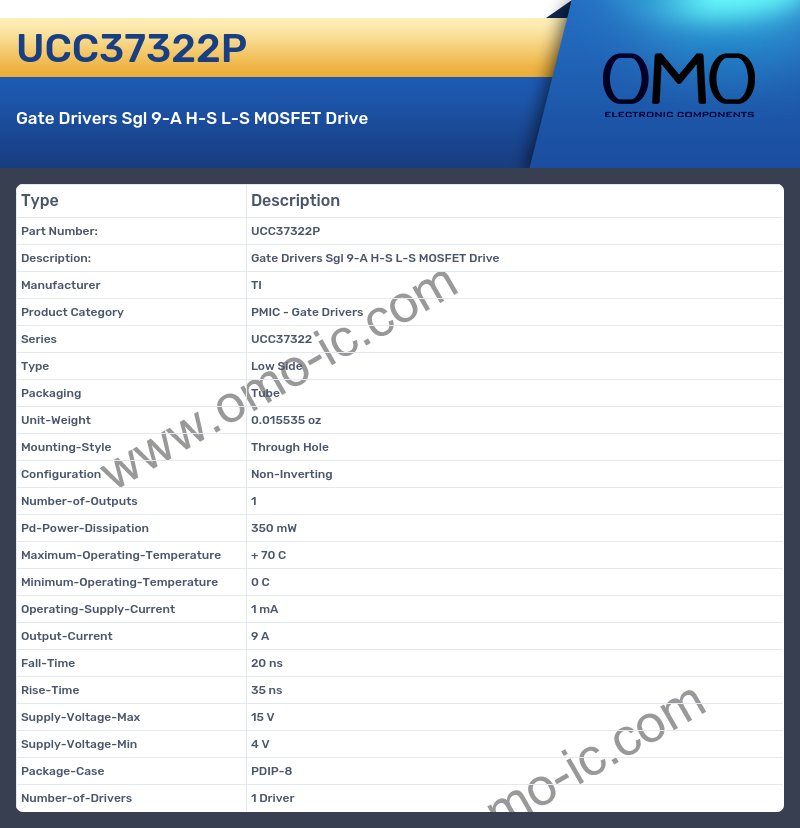

UCC37322P Image

UCC37322P Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series UCC37322
• Type Low Side
• Packaging Tube
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Configuration Non-Inverting
• Number-of-Outputs 1
• Pd-Power-Dissipation 350 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 1 mA
• Output-Current 9 A
• Fall-Time 20 ns
• Rise-Time 35 ns
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 4 V
• Package-Case PDIP-8
• Number-of-Drivers 1 Driver
