UCC28C43DR

UCC28C43DR Overview

Product belongs to the UCC28C43 series. Type: Current Mode PWM Controllers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style Wide - 40 C to + 105 C operating temperature range for diverse applications SOIC-8 Operational temperature range: -40°C ~ 105°C (TJ) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 8-SOIC Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback Supply Voltage: 7.6 V ~ 18 V This product features 'Frequency-Switching' at - for optimal performance. The Control-Features include Frequency Control function. The Positive. Output-Phases: 1 Maximum duty cycle of 100 % The value of No is included as a product attribute. No enabled Serial Interfaces: - The product's Isolated is non-isolated. Maximum operating temperature of + 105 C Output voltage: 18 V 2.3 mA is 92 nA. Output current: 200 mA Switching frequency is 1 MHz This product requires a minimum 7.6 V of 2.95 V. This product has a maximum 18 V of 20 V.

UCC28C43DR Image

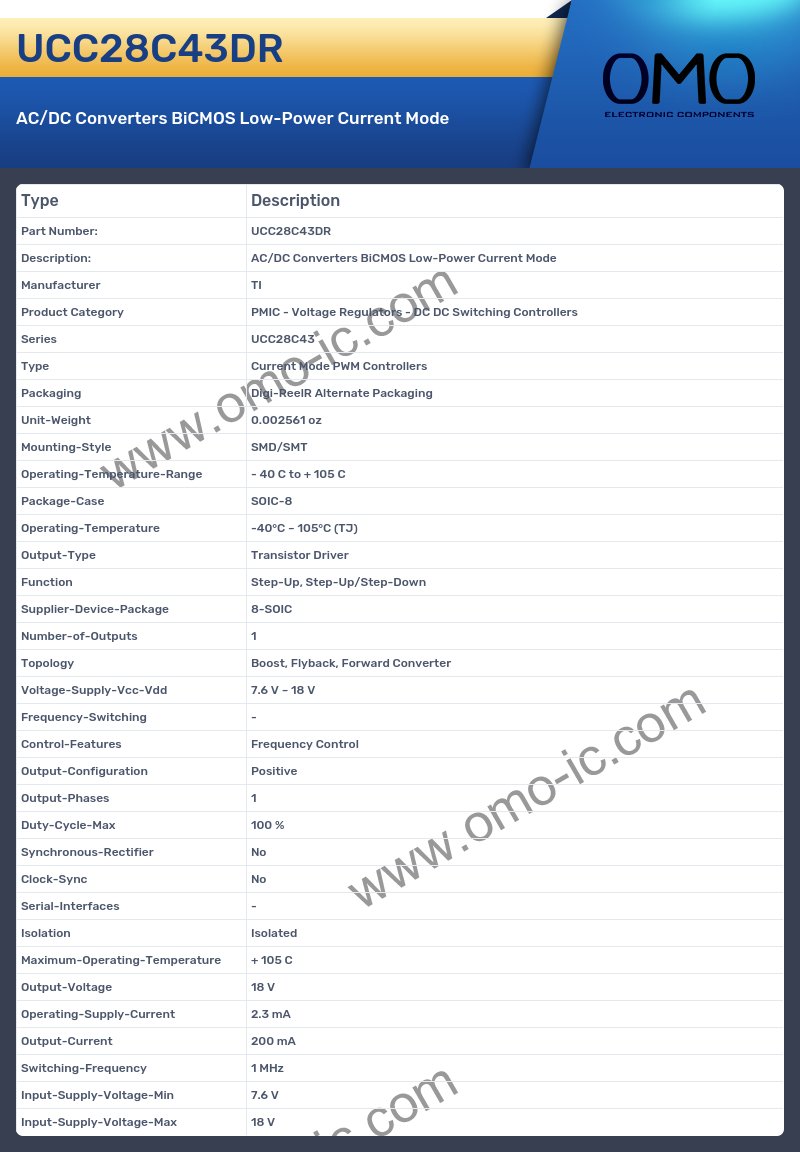

UCC28C43DR Specifications

• Manufacturer TI
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC28C43
• Type Current Mode PWM Controllers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 105 C
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 105°C (TJ)
• Output-Type Transistor Driver
• Function Step-Up, Step-Up/Step-Down
• Supplier-Device-Package 8-SOIC
• Number-of-Outputs 1
• Topology Boost, Flyback, Forward Converter
• Voltage-Supply-Vcc-Vdd 7.6 V ~ 18 V
• Frequency-Switching -
• Control-Features Frequency Control
• Output-Configuration Positive
• Output-Phases 1
• Duty-Cycle-Max 100 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Isolation Isolated
• Maximum-Operating-Temperature + 105 C
• Output-Voltage 18 V
• Operating-Supply-Current 2.3 mA
• Output-Current 200 mA
• Switching-Frequency 1 MHz
• Input-Supply-Voltage-Min 7.6 V
• Input-Supply-Voltage-Max 18 V
