UCC28720DR

UCC28720DR Overview

Product belongs to the UCC28720 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.008960 oz SMD/SMT Mounting-Style SOIC-7 Operational temperature range: -40°C ~ 125°C (TJ) Surface Mount mounting type Supplier device package: 7-SOIC Output-Isolation: Isolated This product has No. Topology: Flyback feedback Supply Voltage: 9 V ~ 35 V This product features 'Frequency-Switching' at 650Hz ~ 80kHz for optimal performance. The Control-Features include - function. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 8.1 V to 35 V supply voltage for reliable performance. Switching frequency is 0.68 kHz to 80 kHz The UCC28720EVM-212. Maximum duty cycle of 99 %

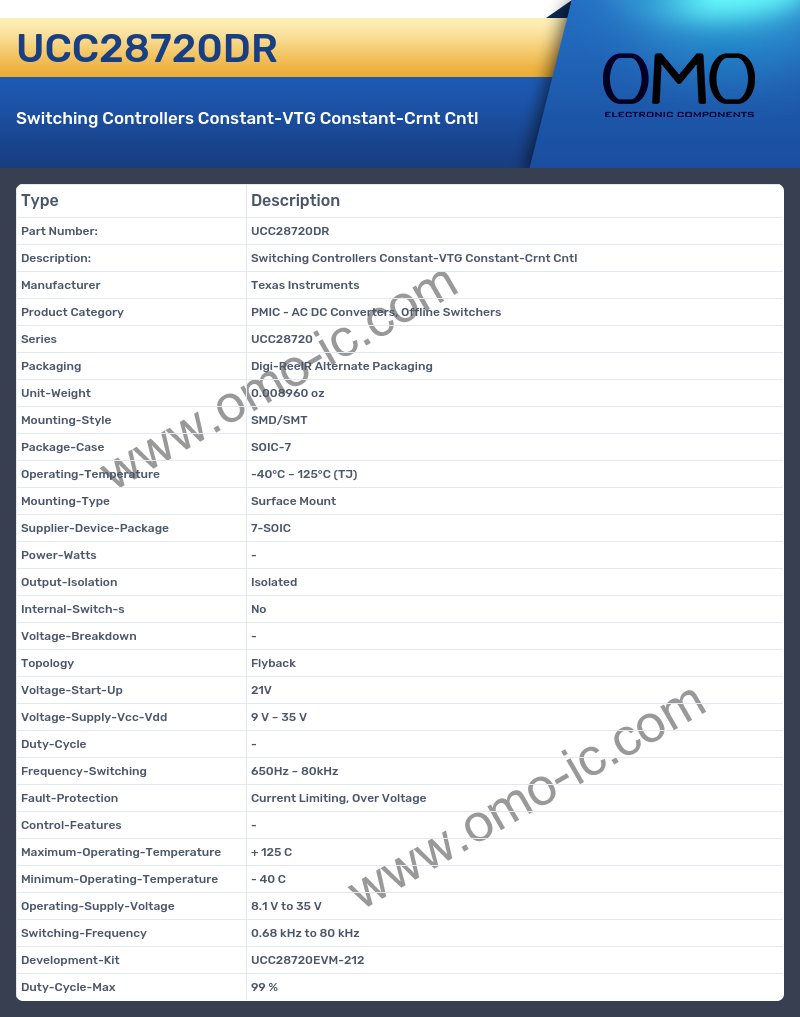

UCC28720DR Image

UCC28720DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series UCC28720
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.008960 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-7
• Operating-Temperature -40°C ~ 125°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 7-SOIC
• Power-Watts -
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Flyback
• Voltage-Start-Up 21V
• Voltage-Supply-Vcc-Vdd 9 V ~ 35 V
• Duty-Cycle -
• Frequency-Switching 650Hz ~ 80kHz
• Fault-Protection Current Limiting, Over Voltage
• Control-Features -
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 8.1 V to 35 V
• Switching-Frequency 0.68 kHz to 80 kHz
• Development-Kit UCC28720EVM-212
• Duty-Cycle-Max 99 %
