UCC28083DR

UCC28083DR Overview

Product belongs to the UCC28083 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 2 Output Output-Isolation: Isolated This product has No. Topology: Push-Pull feedback Supply Voltage: 8.3 V ~ 15 V This product features 'Frequency-Switching' at 50kHz ~ 1MHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output current: 1000 mA Switching frequency is 1000 kHz This product has a 25 ns of 16 ns. This product has a 25 ns of 16 ns. Maximum duty cycle of 50 %

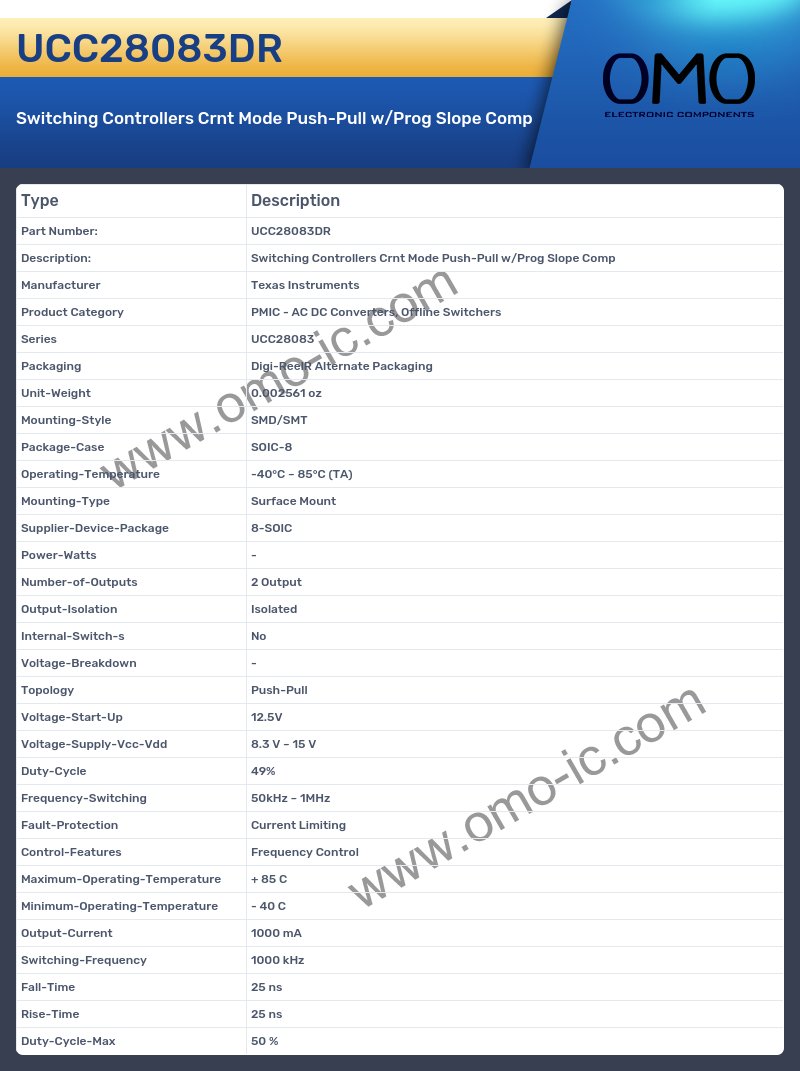

UCC28083DR Image

UCC28083DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series UCC28083
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Supplier-Device-Package 8-SOIC
• Power-Watts -
• Number-of-Outputs 2 Output
• Output-Isolation Isolated
• Internal-Switch-s No
• Voltage-Breakdown -
• Topology Push-Pull
• Voltage-Start-Up 12.5V
• Voltage-Supply-Vcc-Vdd 8.3 V ~ 15 V
• Duty-Cycle 49%
• Frequency-Switching 50kHz ~ 1MHz
• Fault-Protection Current Limiting
• Control-Features Frequency Control
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Current 1000 mA
• Switching-Frequency 1000 kHz
• Fall-Time 25 ns
• Rise-Time 25 ns
• Duty-Cycle-Max 50 %
