UCC27322D

UCC27322D Overview

Product belongs to the UCC27322 series. Type: Low Side Tube is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style Configuration Non-Inverting Number-of-Outputs: 1 Power-off control: 650 mW Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C 1 mA is 92 nA. Output current: 9 A This product has a 20 ns of 16 ns. This product has a 35 ns of 16 ns. Maximum supply voltage of 15 V Minimum supply voltage is 4 V SOIC-8 Number-of-Drivers: 1 Driver

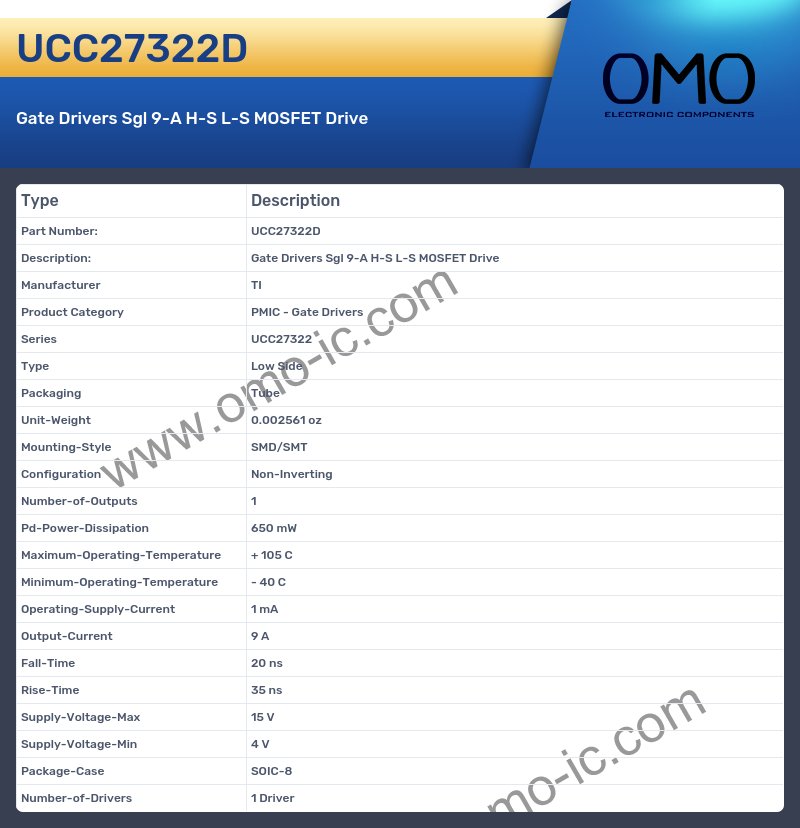

UCC27322D Image

UCC27322D Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series UCC27322
• Type Low Side
• Packaging Tube
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Configuration Non-Inverting
• Number-of-Outputs 1
• Pd-Power-Dissipation 650 mW
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1 mA
• Output-Current 9 A
• Fall-Time 20 ns
• Rise-Time 35 ns
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 4 V
• Package-Case SOIC-8
• Number-of-Drivers 1 Driver
