UC3707N Overview

Product belongs to the UC3707 series. Type: High Speed Tube is the packaging method for this product Weight of 0.037172 oz Through Hole Mounting-Style Configuration Inverting Non-Inverting Number-of-Outputs: 2 Power-off control: 2000 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 15 mA is 92 nA. This product has a 65 ns of 16 ns. This product has a 60 ns of 16 ns. Minimum supply voltage is 5 V PDIP-16 Number-of-Drivers: 2 Driver

UC3707N Image

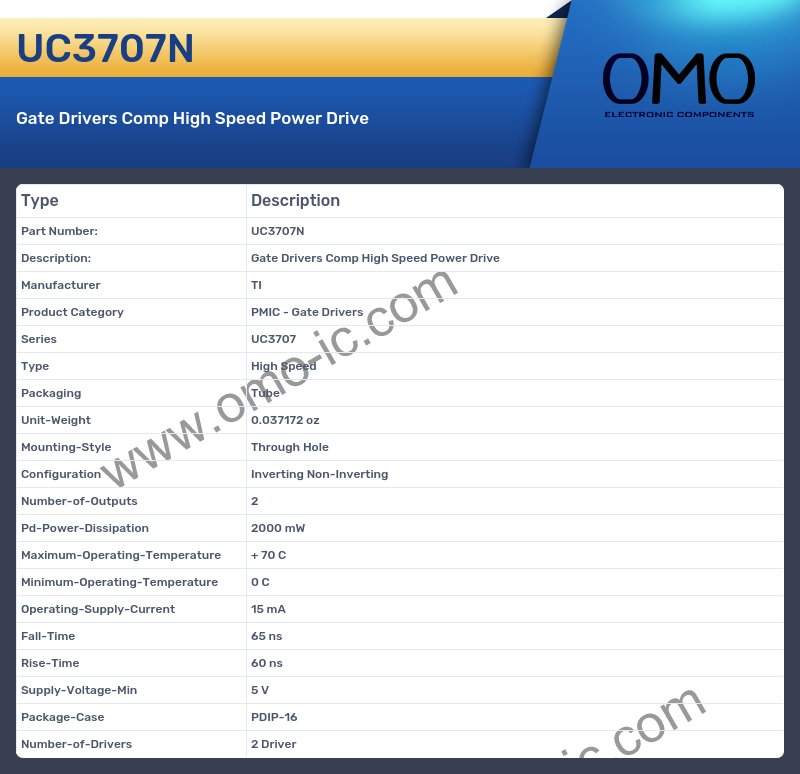

UC3707N Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series UC3707
• Type High Speed
• Packaging Tube
• Unit-Weight 0.037172 oz
• Mounting-Style Through Hole
• Configuration Inverting Non-Inverting
• Number-of-Outputs 2
• Pd-Power-Dissipation 2000 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 15 mA
• Fall-Time 65 ns
• Rise-Time 60 ns
• Supply-Voltage-Min 5 V
• Package-Case PDIP-16
• Number-of-Drivers 2 Driver
