TSX3702IQ2T

TSX3702IQ2T Overview

Product belongs to the TSX3702 series. This product is categorized as Analog Comparators Type: General Purpose Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.001319 oz SMD/SMT Mounting-Style DFN-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Push-Pull Number of channels: 2 Channel Supplier device package: 8-DFN (2x2) Voltage supply range: 2.7 V ~ 16 V 2 element 8μA maximum quiescent current. Maximum propagation delay: - Hysteresis value of - 2.8 us response time Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 5 uA is 92 nA. Maximum supply voltage of 16 V Minimum supply voltage is 2.7 V General Purpose comparator type Input bias current of 10 pA The 5 mV. The 10 pA. 2.8 us is 23 microseconds. The 89 dB. 6 mA The CMRR-Common-Mode-Rejection-Ratio is 85 dB.

TSX3702IQ2T Image

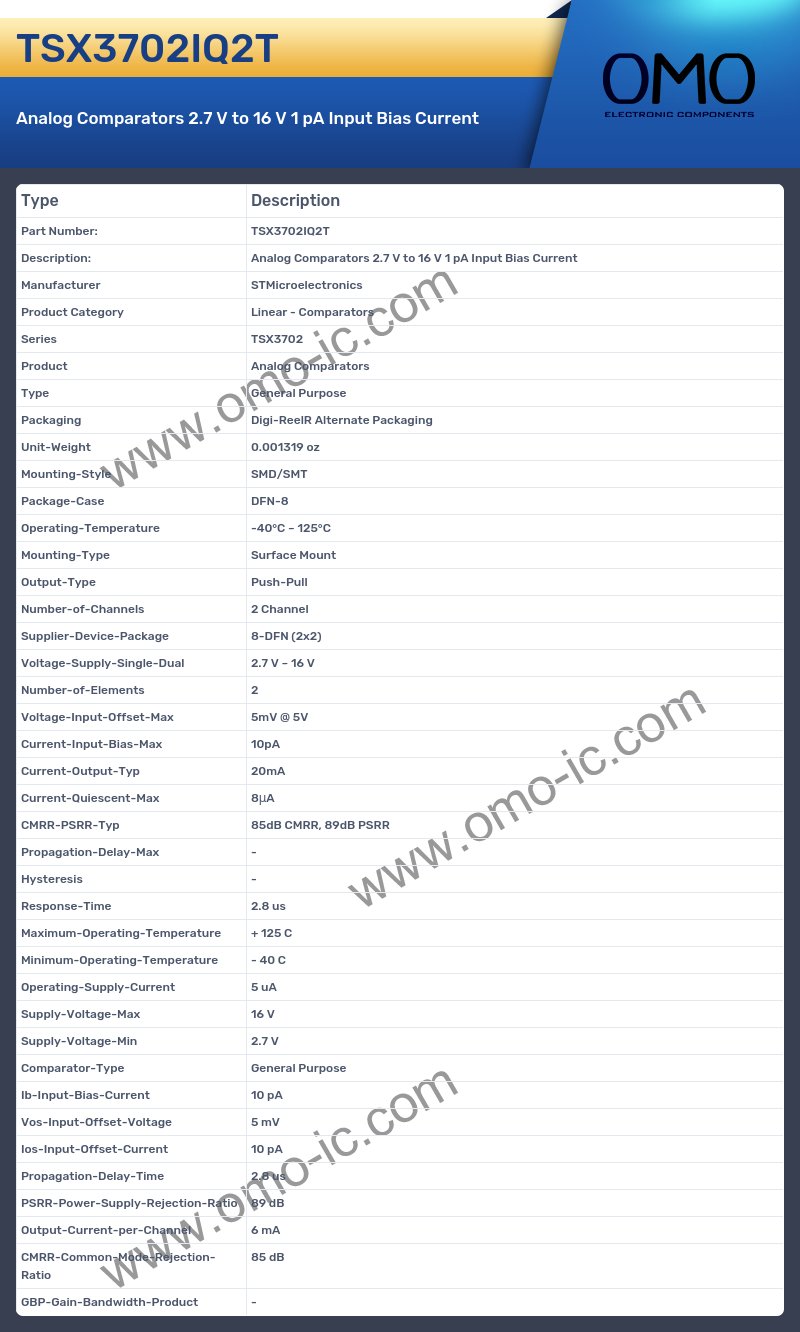

TSX3702IQ2T Specifications

• Manufacturer STMicroelectronics
• Product Category Linear - Comparators
• Series TSX3702
• Product Analog Comparators
• Type General Purpose
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.001319 oz
• Mounting-Style SMD/SMT
• Package-Case DFN-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Number-of-Channels 2 Channel
• Supplier-Device-Package 8-DFN (2x2)
• Voltage-Supply-Single-Dual 2.7 V ~ 16 V
• Number-of-Elements 2
• Voltage-Input-Offset-Max 5mV @ 5V
• Current-Input-Bias-Max 10pA
• Current-Output-Typ 20mA
• Current-Quiescent-Max 8μA
• CMRR-PSRR-Typ 85dB CMRR, 89dB PSRR
• Propagation-Delay-Max -
• Hysteresis -
• Response-Time 2.8 us
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5 uA
• Supply-Voltage-Max 16 V
• Supply-Voltage-Min 2.7 V
• Comparator-Type General Purpose
• Ib-Input-Bias-Current 10 pA
• Vos-Input-Offset-Voltage 5 mV
• Ios-Input-Offset-Current 10 pA
• Propagation-Delay-Time 2.8 us
• PSRR-Power-Supply-Rejection-Ratio 89 dB
• Output-Current-per-Channel 6 mA
• CMRR-Common-Mode-Rejection-Ratio 85 dB
• GBP-Gain-Bandwidth-Product -
