TS522IDT Overview

Product belongs to the TS522 series. This product is categorized as Operational Amplifiers Reel is the packaging method for this product Weight of 0.017870 oz SMD/SMT Mounting-Style Bipolar is the technology used. Number of channels: 2 Channel The amplifier is of Low Noise Amplifier type. Power-off control: No Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 5 mA is 92 nA. Maximum supply voltage of 30 V Minimum supply voltage is 5 V SO-8 Input bias current of 750 nA The 850 uV. 37 mA The CMRR-Common-Mode-Rejection-Ratio is 80 dB. The 4.5 nV/sqrt Hz of this product is 110 nV/sqrt Hz. The 0.5 pA/sqrt Hz. Maximum dual supply voltage: +/- 15 V Minimum dual supply voltage of +/- 2.5 V

TS522IDT Image

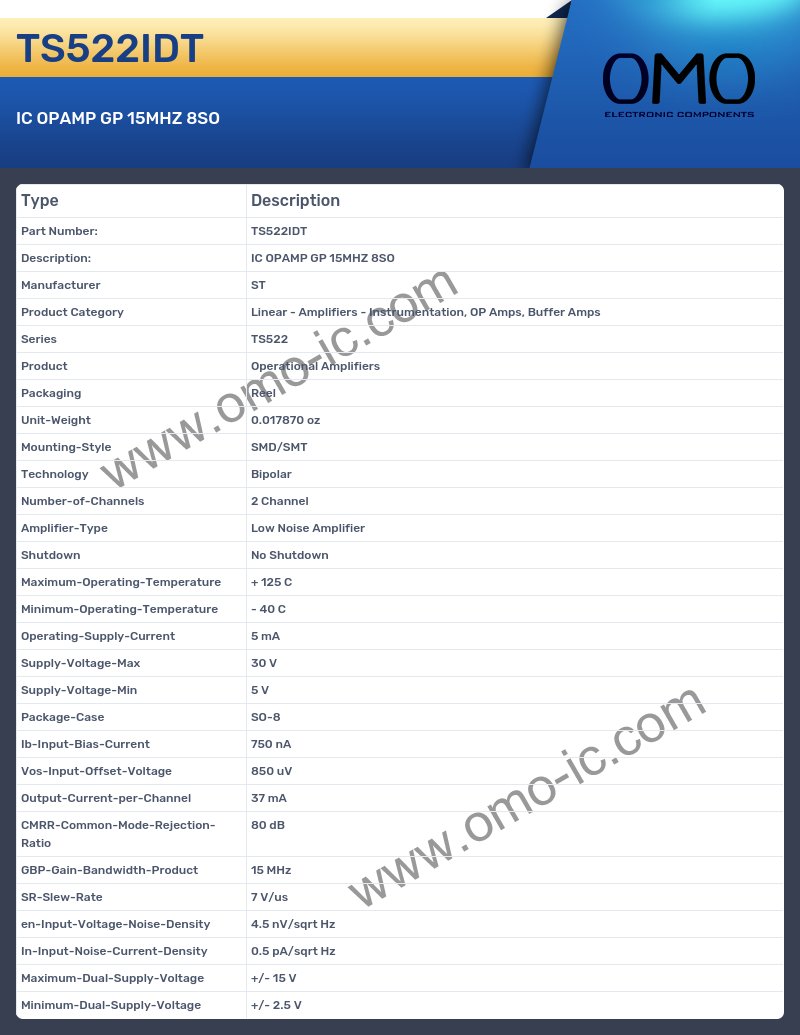

TS522IDT Specifications

• Manufacturer ST
• Product Category Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
• Series TS522
• Product Operational Amplifiers
• Packaging Reel
• Unit-Weight 0.017870 oz
• Mounting-Style SMD/SMT
• Technology Bipolar
• Number-of-Channels 2 Channel
• Amplifier-Type Low Noise Amplifier
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 5 mA
• Supply-Voltage-Max 30 V
• Supply-Voltage-Min 5 V
• Package-Case SO-8
• Ib-Input-Bias-Current 750 nA
• Vos-Input-Offset-Voltage 850 uV
• Output-Current-per-Channel 37 mA
• CMRR-Common-Mode-Rejection-Ratio 80 dB
• GBP-Gain-Bandwidth-Product 15 MHz
• SR-Slew-Rate 7 V/us
• en-Input-Voltage-Noise-Density 4.5 nV/sqrt Hz
• In-Input-Noise-Current-Density 0.5 pA/sqrt Hz
• Maximum-Dual-Supply-Voltage +/- 15 V
• Minimum-Dual-Supply-Voltage +/- 2.5 V
