TS3V340DRE4

TS3V340DRE4 Overview

Product belongs to the TS3V340 series. This product is categorized as Video Switches Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004998 oz SMD/SMT Mounting-Style SOIC-16 Operational temperature range: -40°C ~ 85°C Surface Mount mounting type Product function is Video Switch. Supplier device package: 16-SOIC - is 8. Voltage supply source: Analog and digital Single Supply Configuration 4 x SPDT Circuit type: 4 x SPDT 6 Ohm maximum on-state resistance Voltage supply range: 3 V ~ 3.6 V This product has a 700nA of 200μA. The - 500 MHz bandwidth Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 3 V to 3.6 V supply voltage for reliable performance. Maximum supply voltage of 3.6 V Minimum supply voltage is 3 V 3.5 ns is 23 microseconds. Single Supply supply type Max on-resistance of 6 Ohms Maximum off time: 7 ns 4 Switch switch functionality Maximum on-time: 7 ns The maximum switch voltage for this product is 3.3 V The 100 mA

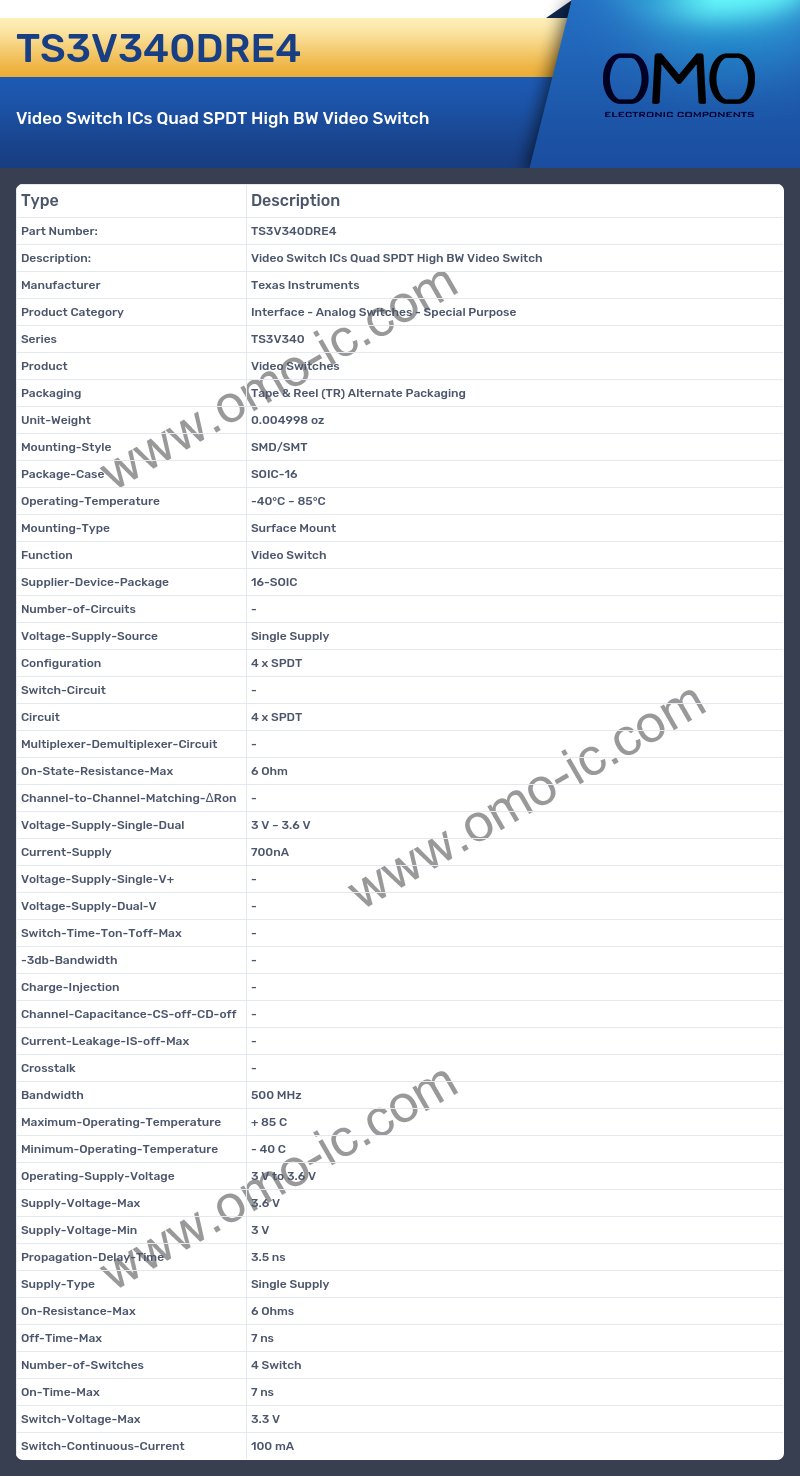

TS3V340DRE4 Image

TS3V340DRE4 Specifications

• Manufacturer Texas Instruments
• Product Category Interface - Analog Switches - Special Purpose
• Series TS3V340
• Product Video Switches
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004998 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-16
• Operating-Temperature -40°C ~ 85°C
• Mounting-Type Surface Mount
• Function Video Switch
• Supplier-Device-Package 16-SOIC
• Number-of-Circuits -
• Voltage-Supply-Source Single Supply
• Configuration 4 x SPDT
• Switch-Circuit -
• Circuit 4 x SPDT
• Multiplexer-Demultiplexer-Circuit -
• On-State-Resistance-Max 6 Ohm
• Channel-to-Channel-Matching-ΔRon -
• Voltage-Supply-Single-Dual 3 V ~ 3.6 V
• Current-Supply 700nA
• Voltage-Supply-Single-V+ -
• Voltage-Supply-Dual-V -
• Switch-Time-Ton-Toff-Max -
• -3db-Bandwidth -
• Charge-Injection -
• Channel-Capacitance-CS-off-CD-off -
• Current-Leakage-IS-off-Max -
• Crosstalk -
• Bandwidth 500 MHz
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 3 V to 3.6 V
• Supply-Voltage-Max 3.6 V
• Supply-Voltage-Min 3 V
• Propagation-Delay-Time 3.5 ns
• Supply-Type Single Supply
• On-Resistance-Max 6 Ohms
• Off-Time-Max 7 ns
• Number-of-Switches 4 Switch
• On-Time-Max 7 ns
• Switch-Voltage-Max 3.3 V
• Switch-Continuous-Current 100 mA
