TPS767D301PWP

TPS767D301PWP Overview

Product belongs to the TPS767D301 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.004180 oz SMD/SMT Mounting-Style HTSSOP-28 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Adjustable Fixed Supplier device package: 28-HTSSOP 2.7 V ~ 10 V voltage input Number-of-Outputs: 2 Output Output voltage: 3.3V, 1.5 V ~ 5.5 V Positive Fixed and Adjustable regulator topology The product has 2 of 1. Power-off control: 5.07 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Output voltage: 1.5 V to 5.5 V/3.3 V Maximum Input Voltage: 10 V Output current: 1 A The product's + 2.7 V is 5.1 V. Load regulation is 3 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 85 uA The 0.35 V at 1 A. The maximum 575 mV at 1 A is 360 mV. This product's 0.01 % / V is 0.01 %/V.

TPS767D301PWP Image

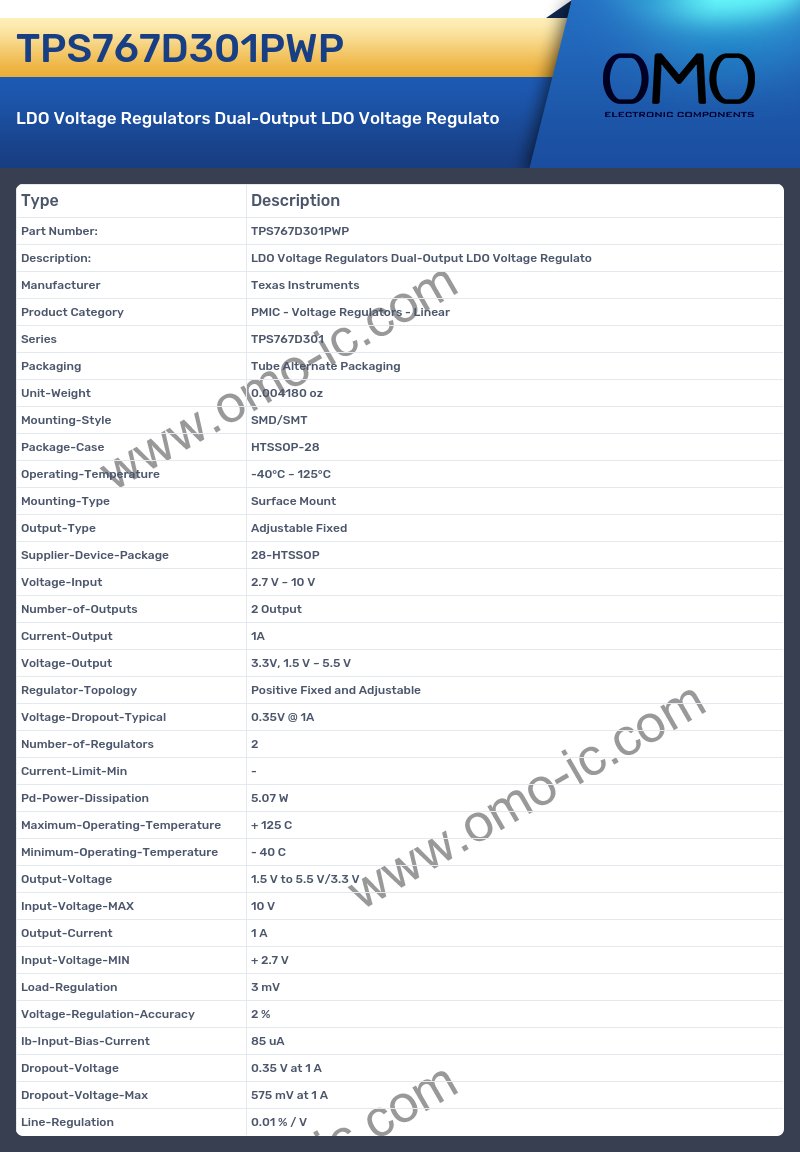

TPS767D301PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS767D301
• Packaging Tube Alternate Packaging
• Unit-Weight 0.004180 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-28
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Adjustable Fixed
• Supplier-Device-Package 28-HTSSOP
• Voltage-Input 2.7 V ~ 10 V
• Number-of-Outputs 2 Output
• Current-Output 1A
• Voltage-Output 3.3V, 1.5 V ~ 5.5 V
• Regulator-Topology Positive Fixed and Adjustable
• Voltage-Dropout-Typical 0.35V @ 1A
• Number-of-Regulators 2
• Current-Limit-Min -
• Pd-Power-Dissipation 5.07 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.5 V to 5.5 V/3.3 V
• Input-Voltage-MAX 10 V
• Output-Current 1 A
• Input-Voltage-MIN + 2.7 V
• Load-Regulation 3 mV
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 85 uA
• Dropout-Voltage 0.35 V at 1 A
• Dropout-Voltage-Max 575 mV at 1 A
• Line-Regulation 0.01 % / V
