TPS71025P

TPS71025P Overview

Product belongs to the TPS71025 series. Tube Alternate Packaging is the packaging method for this product Weight of 0.015535 oz Through Hole Mounting-Style PDIP-8 Operational temperature range: 0°C ~ 125°C Through Hole mounting type Output-Type: Fixed Supplier device package: 8-PDIP 2.97 V ~ 10 V voltage input Number-of-Outputs: 1 Output Output voltage: 2.5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 1.175 W Maximum operating temperature of + 125 C Minimum operating temperature: 0 C Output voltage: 2.5 V Maximum Input Voltage: 10 V Output current: 500 mA The product's + 2.97 V is 5.1 V. Load regulation is 60 mV. The voltage regulation accuracy of this product is 2 %. Input bias current of 292 uA This product has a 390 uA of 7 mA, making it ideal for low-power applications. The 0.0057 V at 10 mA. The maximum 7.5 mV at 10 mA is 360 mV. This product's 23 mV is 0.01 %/V.

TPS71025P Image

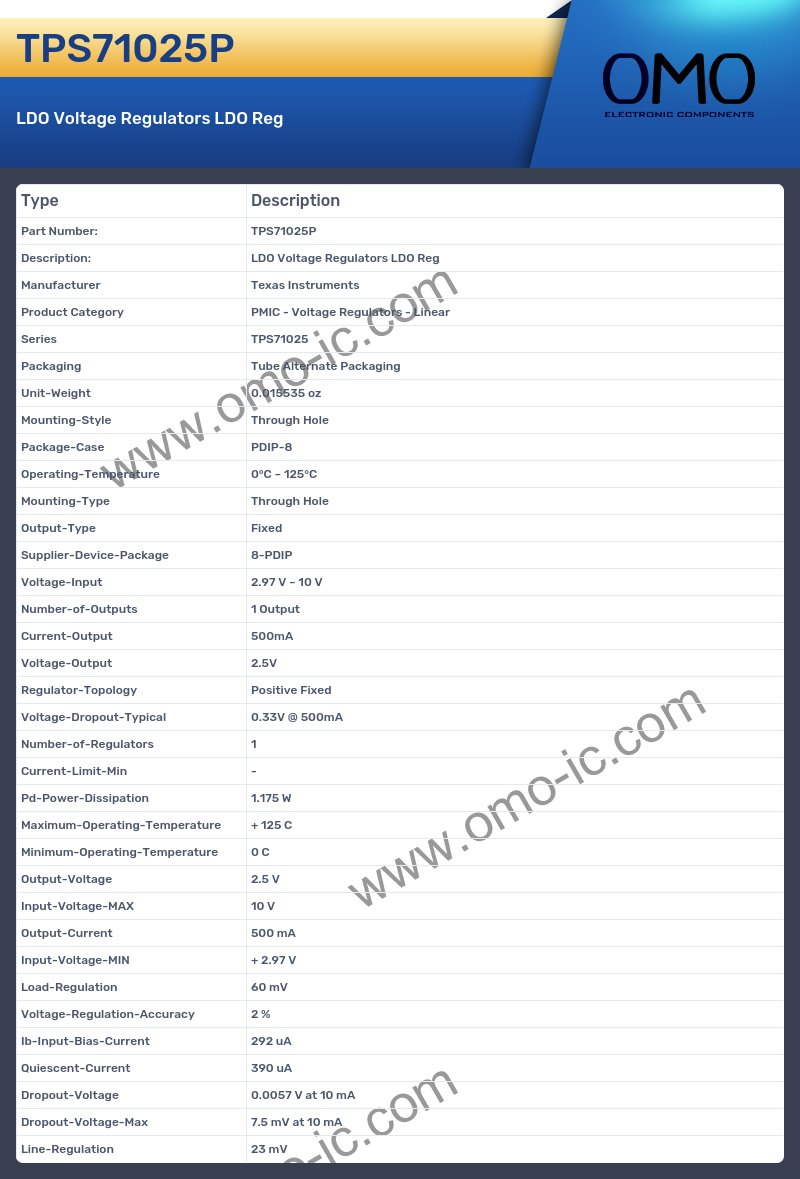

TPS71025P Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TPS71025
• Packaging Tube Alternate Packaging
• Unit-Weight 0.015535 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Operating-Temperature 0°C ~ 125°C
• Mounting-Type Through Hole
• Output-Type Fixed
• Supplier-Device-Package 8-PDIP
• Voltage-Input 2.97 V ~ 10 V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output 2.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.33V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min -
• Pd-Power-Dissipation 1.175 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage 2.5 V
• Input-Voltage-MAX 10 V
• Output-Current 500 mA
• Input-Voltage-MIN + 2.97 V
• Load-Regulation 60 mV
• Voltage-Regulation-Accuracy 2 %
• Ib-Input-Bias-Current 292 uA
• Quiescent-Current 390 uA
• Dropout-Voltage 0.0057 V at 10 mA
• Dropout-Voltage-Max 7.5 mV at 10 mA
• Line-Regulation 23 mV
