TPS63020DSJR

TPS63020DSJR Overview

Product belongs to the TPS63020 series. Type: Voltage Converter Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 85 C operating temperature range for diverse applications VSON-14 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Adjustable Product function is Step-Up/Step-Down. Supplier device package: 14-VSON (4x3) Number-of-Outputs: 1 Topology: Buck-Boost feedback This product features 'Frequency-Switching' at 2.4MHz for optimal performance. The Positive. Minimum fixed output voltage is 1.2V . The value of Yes is included as a product attribute. The minimum input voltage is 1.8V. The 5.5V. Power-off control: Shutdown Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 1.2 V to 5.5 V 50 uA is 92 nA. Input Voltage Range: 1.8 V to 5.5 V Maximum Input Voltage: 5.5 V Output current: 3 A Switching frequency is 2.4 MHz The product's 1.8 V is 5.1 V. Load regulation is 0.5 %. The TPS63020EVM-487. Minimum supply voltage is 1.8 V

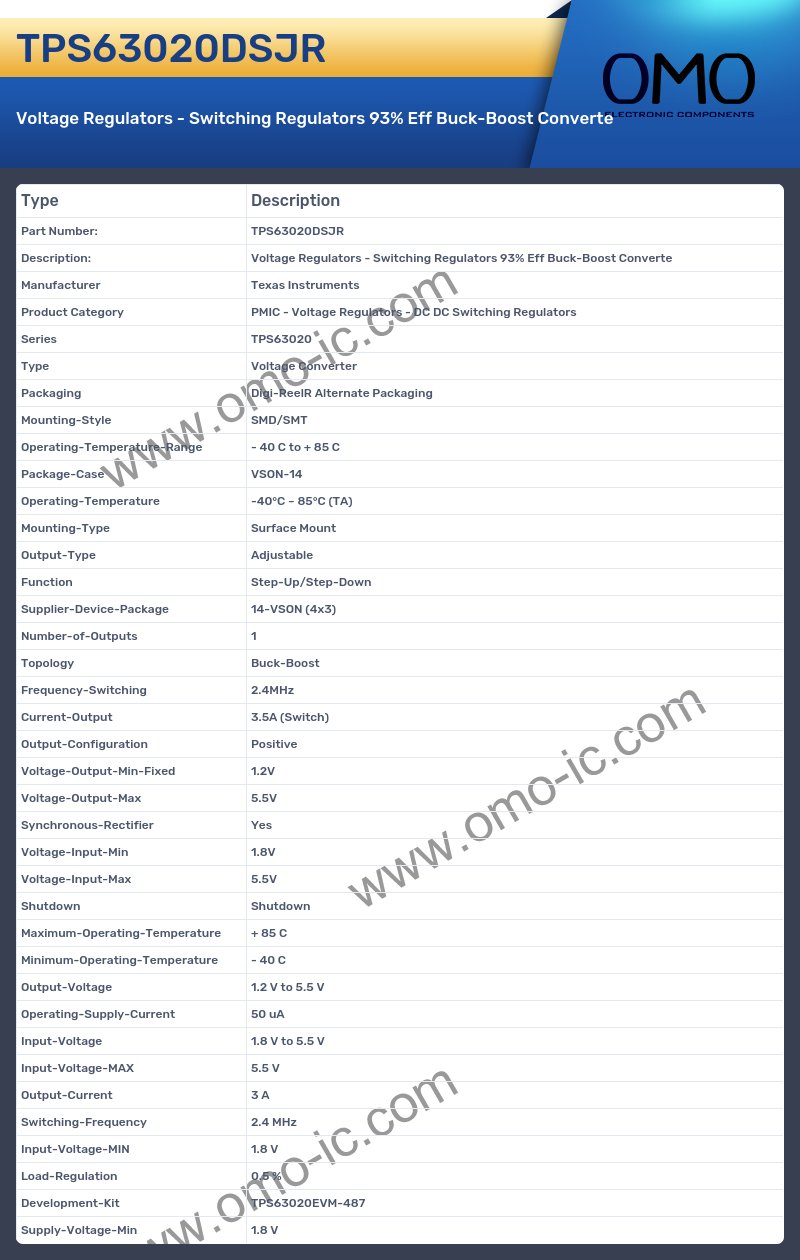

TPS63020DSJR Image

TPS63020DSJR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Regulators
• Series TPS63020
• Type Voltage Converter
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 85 C
• Package-Case VSON-14
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Adjustable
• Function Step-Up/Step-Down
• Supplier-Device-Package 14-VSON (4x3)
• Number-of-Outputs 1
• Topology Buck-Boost
• Frequency-Switching 2.4MHz
• Current-Output 3.5A (Switch)
• Output-Configuration Positive
• Voltage-Output-Min-Fixed 1.2V
• Voltage-Output-Max 5.5V
• Synchronous-Rectifier Yes
• Voltage-Input-Min 1.8V
• Voltage-Input-Max 5.5V
• Shutdown Shutdown
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 1.2 V to 5.5 V
• Operating-Supply-Current 50 uA
• Input-Voltage 1.8 V to 5.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 3 A
• Switching-Frequency 2.4 MHz
• Input-Voltage-MIN 1.8 V
• Load-Regulation 0.5 %
• Development-Kit TPS63020EVM-487
• Supply-Voltage-Min 1.8 V
