TPS40428RHAT

TPS40428RHAT Overview

Product belongs to the TPS40428 series. This product is categorized as Switching Controllers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.003668 oz SMD/SMT Mounting-Style VQFN-40 Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: PWM Signal Product function is Step-Down. Supplier device package: 40-VQFN (6x6) Number-of-Outputs: 2 Topology: Buck feedback Supply Voltage: 4.5 V ~ 20 V This product features 'Frequency-Switching' at 200kHz ~ 1.5MHz for optimal performance. The Control-Features include Frequency Control, Phase Control, Power Good function. The Positive. Output-Phases: 2 Maximum duty cycle of 50 % The value of No is included as a product attribute. Yes enabled Serial Interfaces: PMBus Power-off control: Yes The product's Isolated is non-isolated. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C This product operates at a 20 V supply voltage for reliable performance. Output voltage: 3.3 V 5 V This product is an PMBus synchronous buck driverless controller. 17.3 mA is 92 nA. Input Voltage Range: 20 V Output current: 40 mA Switching frequency is 200 kHz to 1.5 MHz This product has a 300 ns of 16 ns. This product has a 300 ns of 16 ns.

TPS40428RHAT Image

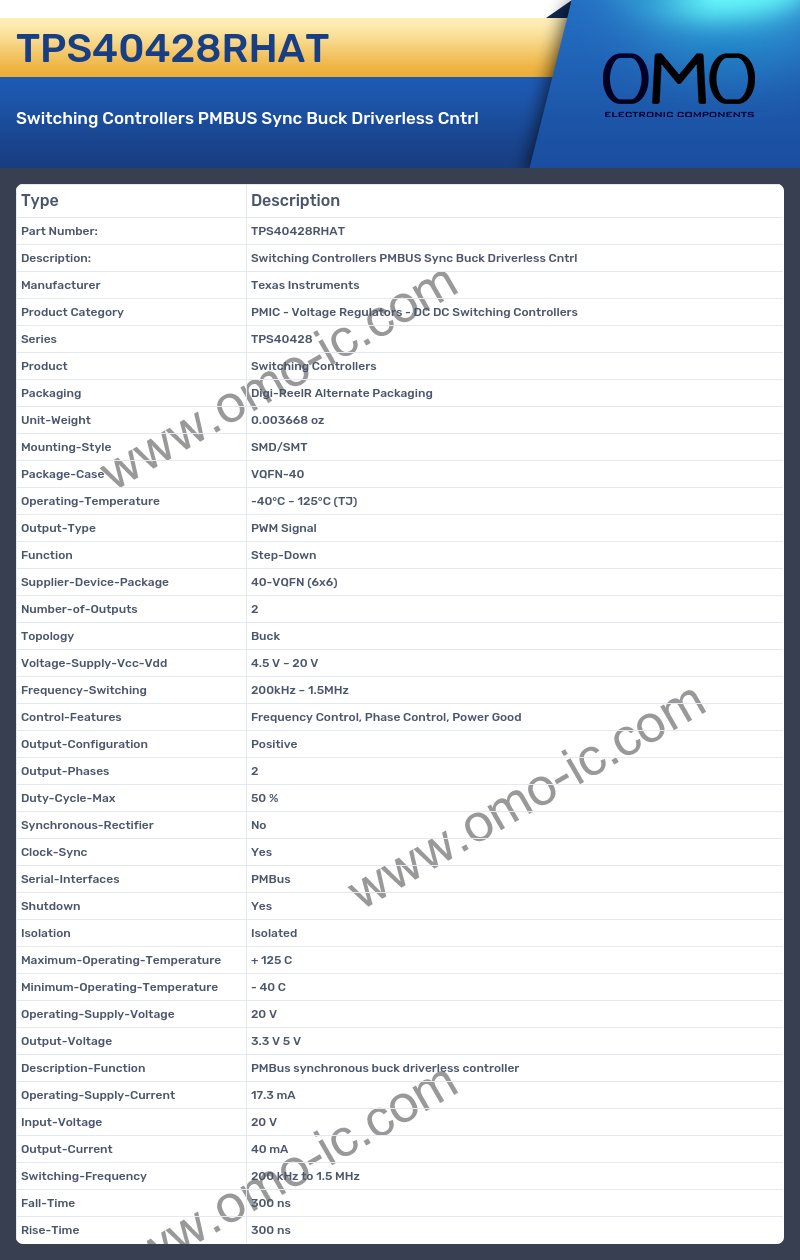

TPS40428RHAT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series TPS40428
• Product Switching Controllers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.003668 oz
• Mounting-Style SMD/SMT
• Package-Case VQFN-40
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type PWM Signal
• Function Step-Down
• Supplier-Device-Package 40-VQFN (6x6)
• Number-of-Outputs 2
• Topology Buck
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 20 V
• Frequency-Switching 200kHz ~ 1.5MHz
• Control-Features Frequency Control, Phase Control, Power Good
• Output-Configuration Positive
• Output-Phases 2
• Duty-Cycle-Max 50 %
• Synchronous-Rectifier No
• Clock-Sync Yes
• Serial-Interfaces PMBus
• Shutdown Yes
• Isolation Isolated
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 20 V
• Output-Voltage 3.3 V 5 V
• Description-Function PMBus synchronous buck driverless controller
• Operating-Supply-Current 17.3 mA
• Input-Voltage 20 V
• Output-Current 40 mA
• Switching-Frequency 200 kHz to 1.5 MHz
• Fall-Time 300 ns
• Rise-Time 300 ns
