TPS3306-15DR

TPS3306-15DR Overview

Product belongs to the TPS3306-15 series. Type: Multi-Voltage Supervisor Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Output-Type: Open Collector / Drain Supplier device package: 8-SOIC The Open Drain or Open Collector. This product's Active Low. This product has 2 monitored voltages. The reset timeout for this product is 70 ms Minimum. This product's 1.4V, 2.93V. Power-off control: 725 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 15 uA is 92 nA. This product does not have Backup capability. Maximum supply voltage of 6 V Minimum supply voltage is 2.7 V This product includes Watchdog This product's 1.5 V 3.3 V is 2.32 V. This product can only 2 Input at a time. This product features a No Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have Yes capability. The product's 100 ms is 200 ms. 1.4 V 2.93 V is set to 2.29 V.

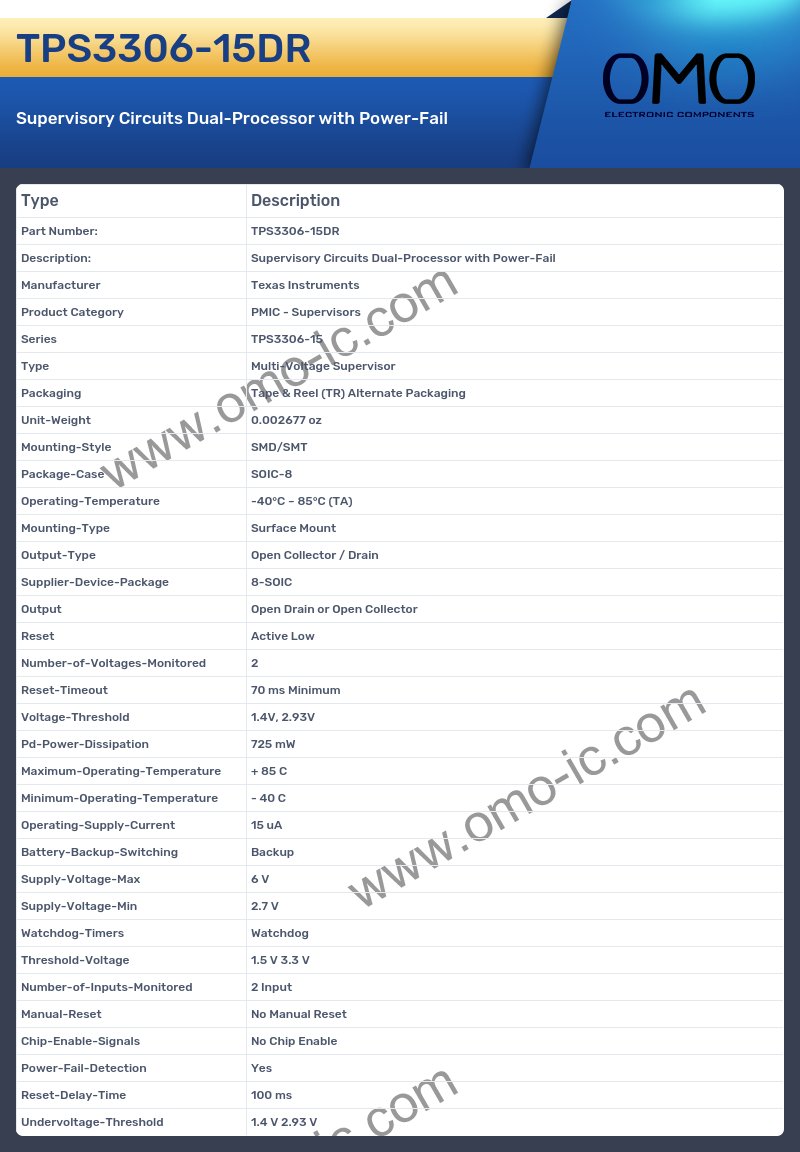

TPS3306-15DR Image

TPS3306-15DR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3306-15
• Type Multi-Voltage Supervisor
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Collector / Drain
• Supplier-Device-Package 8-SOIC
• Output Open Drain or Open Collector
• Reset Active Low
• Number-of-Voltages-Monitored 2
• Reset-Timeout 70 ms Minimum
• Voltage-Threshold 1.4V, 2.93V
• Pd-Power-Dissipation 725 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 15 uA
• Battery-Backup-Switching Backup
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2.7 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 1.5 V 3.3 V
• Number-of-Inputs-Monitored 2 Input
• Manual-Reset No Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection Yes
• Reset-Delay-Time 100 ms
• Undervoltage-Threshold 1.4 V 2.93 V
