TPS3305-18D

TPS3305-18D Overview

Product belongs to the TPS3305-18 series. Type: Multi-Voltage Supervisor Tube Alternate Packaging is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TJ) Surface Mount mounting type Output-Type: Push-Pull Supplier device package: 8-SOIC The Push-Pull, Totem Pole. This product's Active High/Active Low. This product has 2 monitored voltages. The reset timeout for this product is 140 ms Minimum. This product's 1.68V, 2.93V. Power-off control: 725 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C 15 uA is 92 nA. This product does not have No Backup capability. Maximum supply voltage of 6 V Minimum supply voltage is 2.7 V This product includes Watchdog This product's 1.8 V 3.3 V is 2.32 V. This product can only 2 Input at a time. This product features a Manual Reset function that allows for manual reset. This product does not support No Chip Enable. This product does not have No capability. The product's 200 ms is 200 ms. 1.68 V 2.93 V is set to 2.29 V.

TPS3305-18D Image

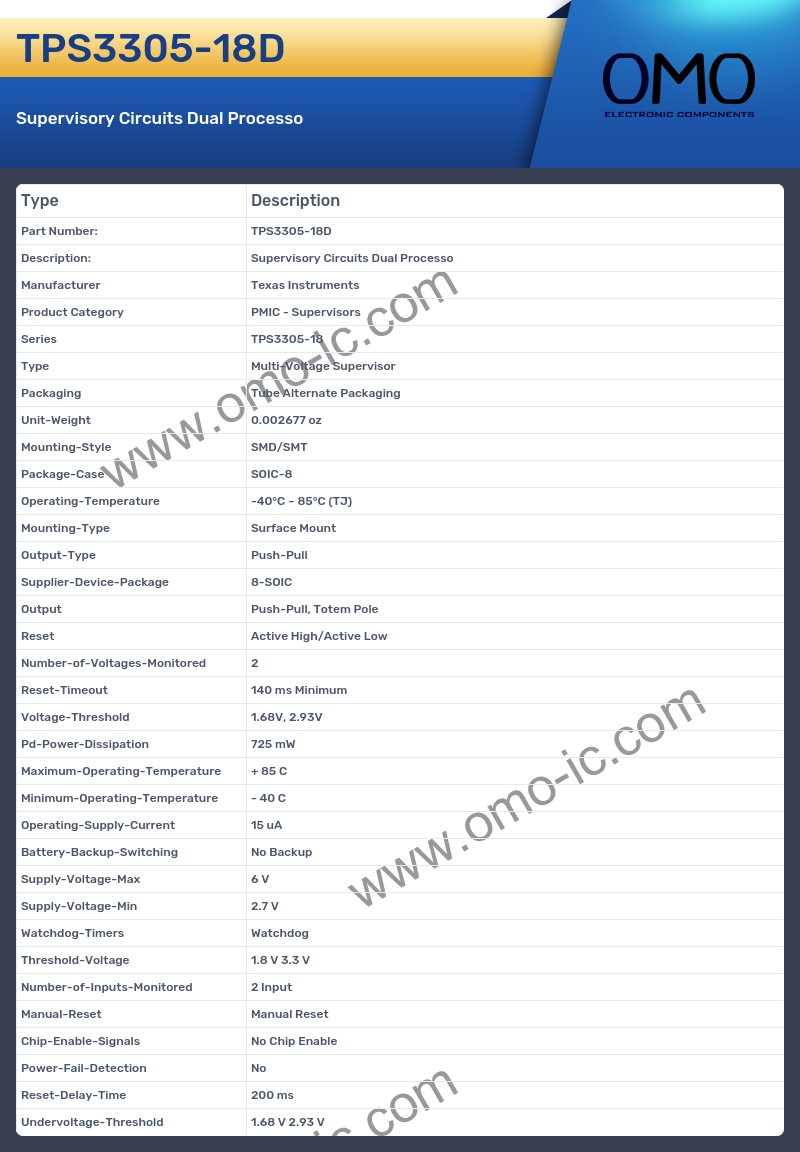

TPS3305-18D Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series TPS3305-18
• Type Multi-Voltage Supervisor
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature -40°C ~ 85°C (TJ)
• Mounting-Type Surface Mount
• Output-Type Push-Pull
• Supplier-Device-Package 8-SOIC
• Output Push-Pull, Totem Pole
• Reset Active High/Active Low
• Number-of-Voltages-Monitored 2
• Reset-Timeout 140 ms Minimum
• Voltage-Threshold 1.68V, 2.93V
• Pd-Power-Dissipation 725 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 15 uA
• Battery-Backup-Switching No Backup
• Supply-Voltage-Max 6 V
• Supply-Voltage-Min 2.7 V
• Watchdog-Timers Watchdog
• Threshold-Voltage 1.8 V 3.3 V
• Number-of-Inputs-Monitored 2 Input
• Manual-Reset Manual Reset
• Chip-Enable-Signals No Chip Enable
• Power-Fail-Detection No
• Reset-Delay-Time 200 ms
• Undervoltage-Threshold 1.68 V 2.93 V
