TPS2836D

TPS2836D Overview

Product belongs to the TPS2836 series. Type: High Side/Low Side Tube is the packaging method for this product Weight of 0.002677 oz SMD/SMT Mounting-Style Configuration Non-Inverting Number-of-Outputs: 2 Power-off control: 600 mW Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 3 mA is 92 nA. Output current: 2.4 A This product has a 40 ns of 16 ns. This product has a 50 ns of 16 ns. Maximum supply voltage of 15 V Minimum supply voltage is 4.5 V SOIC-8 Number-of-Drivers: 2 Driver

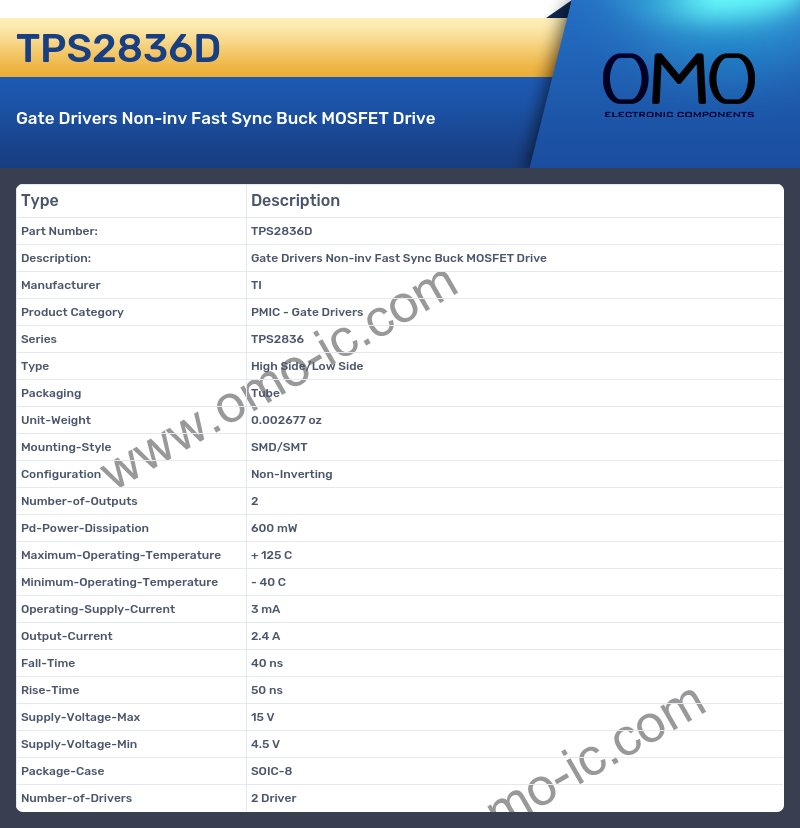

TPS2836D Image

TPS2836D Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series TPS2836
• Type High Side/Low Side
• Packaging Tube
• Unit-Weight 0.002677 oz
• Mounting-Style SMD/SMT
• Configuration Non-Inverting
• Number-of-Outputs 2
• Pd-Power-Dissipation 600 mW
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 3 mA
• Output-Current 2.4 A
• Fall-Time 40 ns
• Rise-Time 50 ns
• Supply-Voltage-Max 15 V
• Supply-Voltage-Min 4.5 V
• Package-Case SOIC-8
• Number-of-Drivers 2 Driver
