TPS23770PWP

TPS23770PWP Overview

Product belongs to the TPS23770 series. Type: Controller (PD), DC/DC Tube Alternate Packaging is the packaging method for this product Weight of 0.002885 oz SMD/SMT Mounting-Style HTSSOP-20 Operational temperature range: -40°C ~ 85°C Number of channels: 1 Voltage Supply Range: 0 V ~ 67 V Supplier device package: 20-HTSSOP This product has a 1mA of 200μA. This product has Both. This product features an Auxiliary-Sense attribute, specifically No. Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C This product operates at a 0 V to 67 V supply voltage for reliable performance. This product complies with the 802.3af standard for reliable and efficient flash memory access. 1.1 mA is 92 nA. Maximum duty cycle of 50 % Max on-resistance of 1 Ohms This product's 450 mA feature is adjustable.

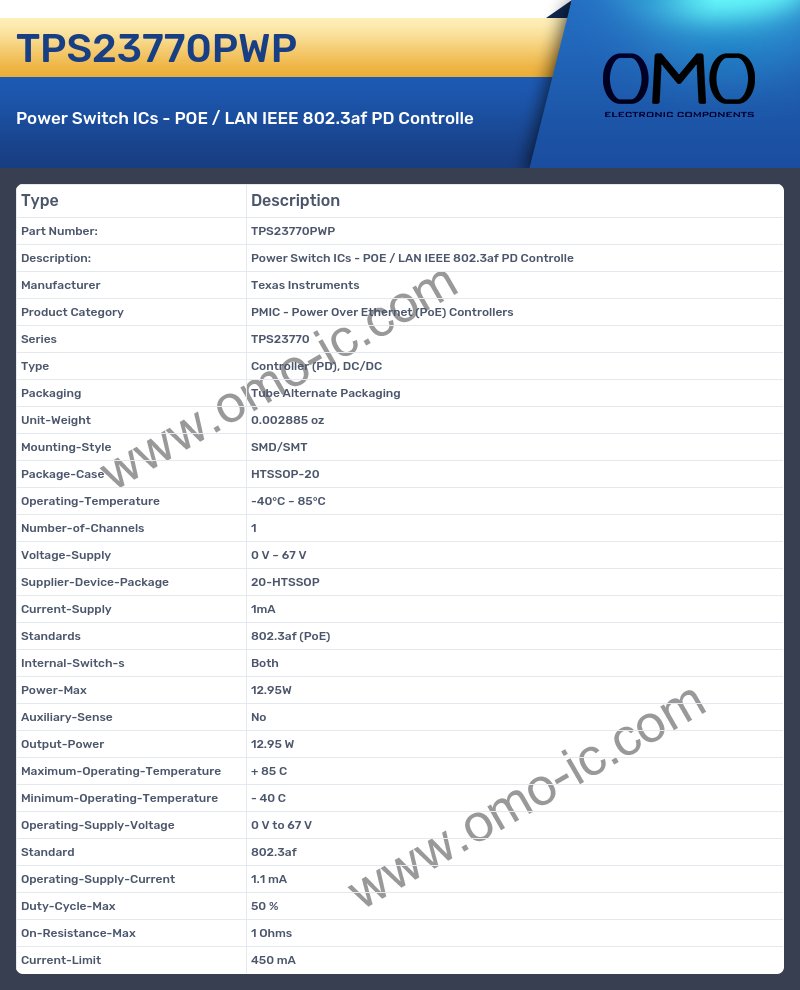

TPS23770PWP Image

TPS23770PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Power Over Ethernet (PoE) Controllers
• Series TPS23770
• Type Controller (PD), DC/DC
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002885 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-20
• Operating-Temperature -40°C ~ 85°C
• Number-of-Channels 1
• Voltage-Supply 0 V ~ 67 V
• Supplier-Device-Package 20-HTSSOP
• Current-Supply 1mA
• Standards 802.3af (PoE)
• Internal-Switch-s Both
• Power-Max 12.95W
• Auxiliary-Sense No
• Output-Power 12.95 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 0 V to 67 V
• Standard 802.3af
• Operating-Supply-Current 1.1 mA
• Duty-Cycle-Max 50 %
• On-Resistance-Max 1 Ohms
• Current-Limit 450 mA
