TPD4E110DPWR

TPD4E110DPWR Overview

Product belongs to the TPD4E110 series. Type: Steering (Rail to Rail) Digi-ReelR Alternate Packaging is the packaging method for this product This product's Termination-Style is ' SMD/SMT ' for easy integration into your design. 4-XFDFN Exposed Pad Operational temperature range: -40°C ~ 125°C (TA) Surface Mount mounting type Versatile HDMI applications for maximum usability Number of channels: 4 Channel Supplier device package: 4-X2SON (0.80x0.80) Bidirectional-Channels The Voltage-Reverse-Standoff-Typ is set at a maximum of 5.5V (Max). The Voltage-Breakdown-Min is 6.5V. Yes Power-Line-Protection - Capacitance-Frequency Power-off control: 18 W Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C Breakdown-Voltage: 6.5 V Clamping-Voltage: 13 V The Cd-Diode-Capacitance is 0.45 pF 5.5 V working voltage Polarity: Unidirectional 5 A of IPP, Peak Pulse, and Current 12 kV of Vesd-Voltage-ESD-Contact 15 kV Vesd-Voltage-ESD-Air-Gap

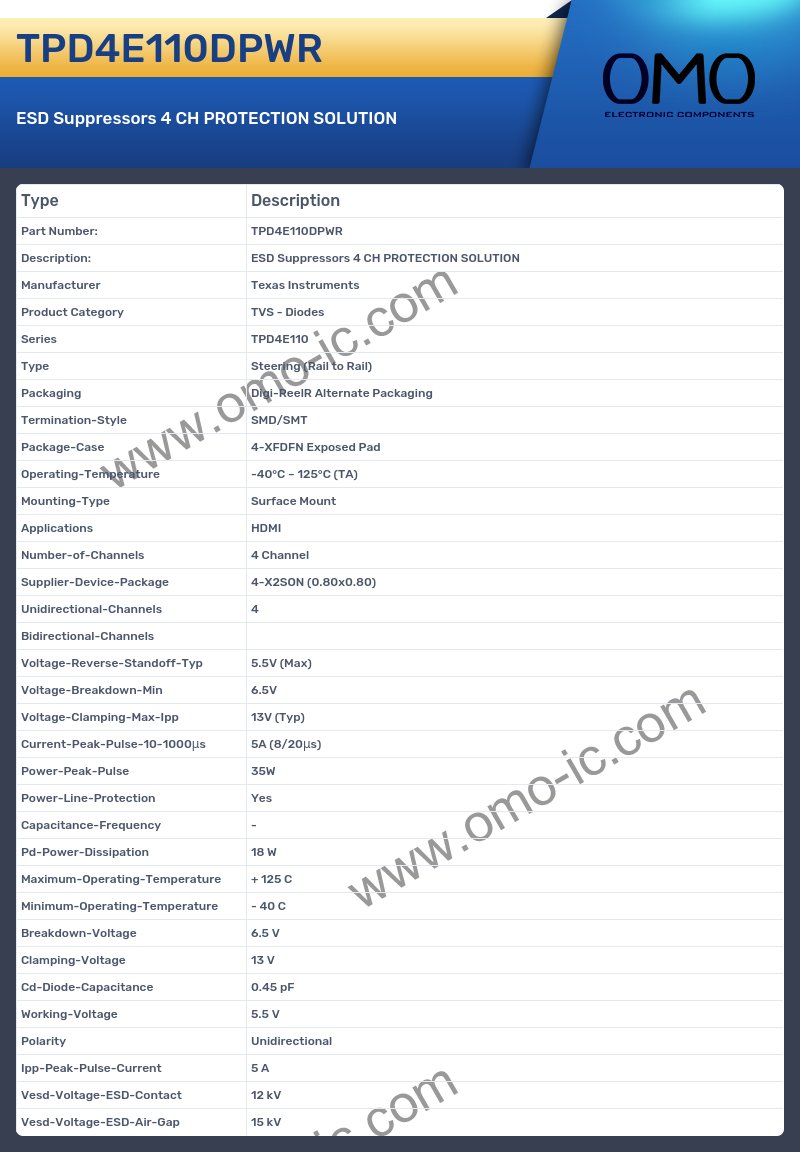

TPD4E110DPWR Image

TPD4E110DPWR Specifications

• Manufacturer Texas Instruments
• Product Category TVS - Diodes
• Series TPD4E110
• Type Steering (Rail to Rail)
• Packaging Digi-ReelR Alternate Packaging
• Termination-Style SMD/SMT
• Package-Case 4-XFDFN Exposed Pad
• Operating-Temperature -40°C ~ 125°C (TA)
• Mounting-Type Surface Mount
• Applications HDMI
• Number-of-Channels 4 Channel
• Supplier-Device-Package 4-X2SON (0.80x0.80)
• Unidirectional-Channels 4
• Bidirectional-Channels
• Voltage-Reverse-Standoff-Typ 5.5V (Max)
• Voltage-Breakdown-Min 6.5V
• Voltage-Clamping-Max-Ipp 13V (Typ)
• Current-Peak-Pulse-10-1000μs 5A (8/20μs)
• Power-Peak-Pulse 35W
• Power-Line-Protection Yes
• Capacitance-Frequency -
• Pd-Power-Dissipation 18 W
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Breakdown-Voltage 6.5 V
• Clamping-Voltage 13 V
• Cd-Diode-Capacitance 0.45 pF
• Working-Voltage 5.5 V
• Polarity Unidirectional
• Ipp-Peak-Pulse-Current 5 A
• Vesd-Voltage-ESD-Contact 12 kV
• Vesd-Voltage-ESD-Air-Gap 15 kV
