TP2104N3-G

TP2104N3-G Overview

Product belongs to the - series. Alternate Packaging is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-226-3, TO-92-3 (TO-226AA) Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-92-3 Configuration Single This product uses an MOSFET P-Channel, Metal Oxide FET-Type transistor. Transistor type: 1 P-Channel 40V This product has an 60pF @ 25V value of 300pF @ 25V. This product's Logic Level Gate. 175mA (Tj) continuous drain-ID current at 25°C; This product has an 6 Ohm @ 500mA, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 740 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 4 ns of 16 ns. This product has a 4 ns of 16 ns. This product's 20 V. The ID of continuous drain current is - 250 mA. This product has a Vds-Drain-Source-Breakdown-Voltageof - 40 V. The 6 Ohms for this product is 12 Ohms. The transistor polarity is P-Channel. 'Typical-Turn-Off-Delay-Time' of 5 ns This product has a 4 ns. This product operates in Enhancement channel mode for optimal performance.

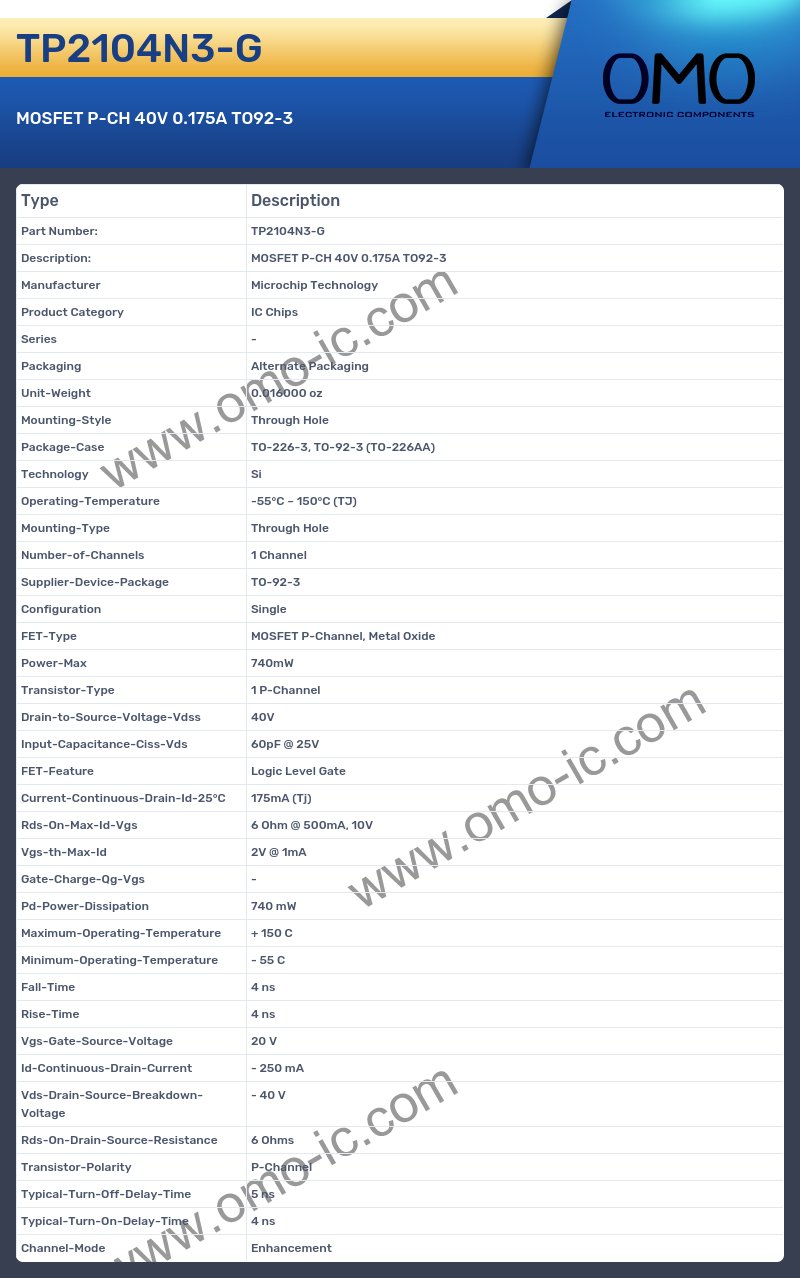

TP2104N3-G Image

TP2104N3-G Specifications

• Manufacturer Microchip Technology
• Product Category IC Chips
• Series -
• Packaging Alternate Packaging
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-226-3, TO-92-3 (TO-226AA)
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Number-of-Channels 1 Channel
• Supplier-Device-Package TO-92-3
• Configuration Single
• FET-Type MOSFET P-Channel, Metal Oxide
• Power-Max 740mW
• Transistor-Type 1 P-Channel
• Drain-to-Source-Voltage-Vdss 40V
• Input-Capacitance-Ciss-Vds 60pF @ 25V
• FET-Feature Logic Level Gate
• Current-Continuous-Drain-Id-25°C 175mA (Tj)
• Rds-On-Max-Id-Vgs 6 Ohm @ 500mA, 10V
• Vgs-th-Max-Id 2V @ 1mA
• Gate-Charge-Qg-Vgs -
• Pd-Power-Dissipation 740 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 4 ns
• Rise-Time 4 ns
• Vgs-Gate-Source-Voltage 20 V
• Id-Continuous-Drain-Current - 250 mA
• Vds-Drain-Source-Breakdown-Voltage - 40 V
• Rds-On-Drain-Source-Resistance 6 Ohms
• Transistor-Polarity P-Channel
• Typical-Turn-Off-Delay-Time 5 ns
• Typical-Turn-On-Delay-Time 4 ns
• Channel-Mode Enhancement
