TLV70725DQNT Overview

Product belongs to the TLV70725 series. This product is categorized as LDO Regulators Type: Low-Noise Low-Dropout Regulator Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style X2SON-4 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 4-X2SON (1x1) Up to 5.5V voltage input Number-of-Outputs: 1 Output Output voltage: 2.5V Positive Fixed regulator topology The product has 1 of 1. Power-off control: 400 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output voltage: 2.5 V Maximum Input Voltage: 5.5 V Output current: 200 mA The product's 2 V is 5.1 V. Load regulation is 10 mV. The voltage regulation accuracy of this product is 0.5 %. The maximum 300 mV is 360 mV. This product's 1 mV is 0.01 %/V. The product's 70 dB is -20 dB.

TLV70725DQNT Image

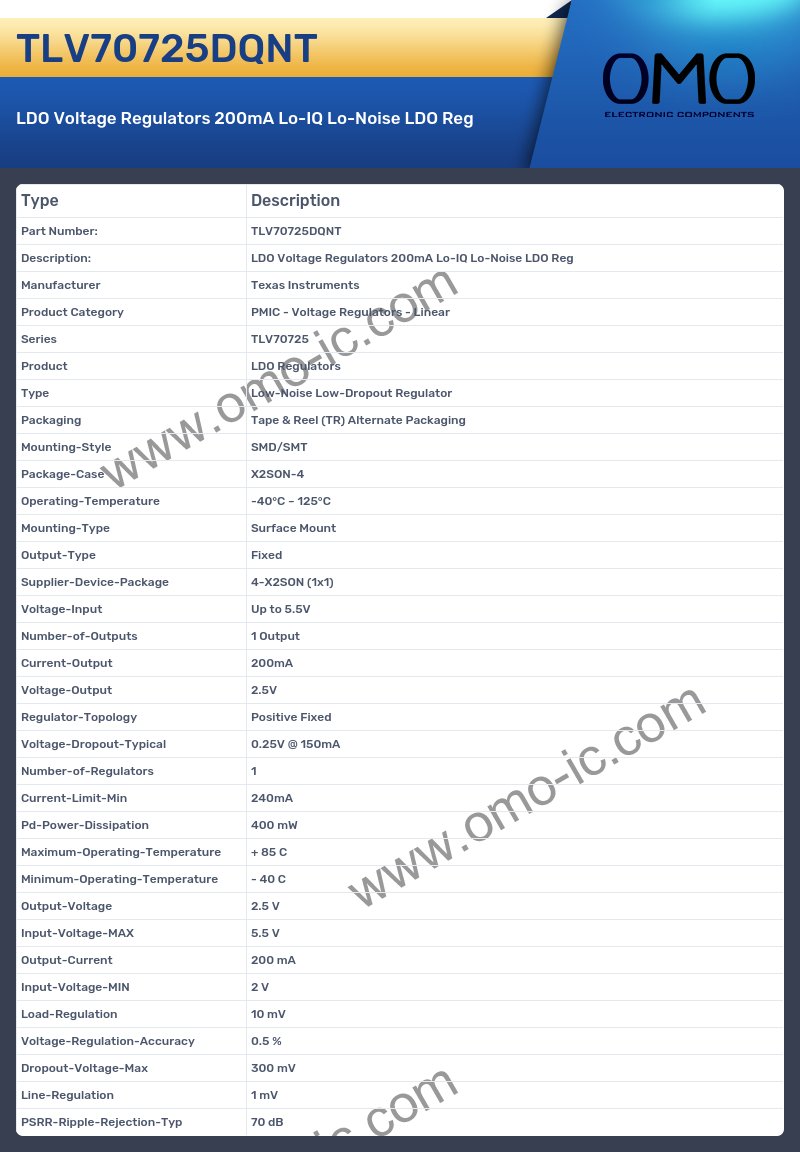

TLV70725DQNT Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series TLV70725
• Product LDO Regulators
• Type Low-Noise Low-Dropout Regulator
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case X2SON-4
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 4-X2SON (1x1)
• Voltage-Input Up to 5.5V
• Number-of-Outputs 1 Output
• Current-Output 200mA
• Voltage-Output 2.5V
• Regulator-Topology Positive Fixed
• Voltage-Dropout-Typical 0.25V @ 150mA
• Number-of-Regulators 1
• Current-Limit-Min 240mA
• Pd-Power-Dissipation 400 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Output-Voltage 2.5 V
• Input-Voltage-MAX 5.5 V
• Output-Current 200 mA
• Input-Voltage-MIN 2 V
• Load-Regulation 10 mV
• Voltage-Regulation-Accuracy 0.5 %
• Dropout-Voltage-Max 300 mV
• Line-Regulation 1 mV
• PSRR-Ripple-Rejection-Typ 70 dB
