TLC548ID

TLC548ID Overview

Product belongs to the TLC548 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 The Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 1 Channel Supplier device package: 8-SOIC This product's 45.5k. Data-Interface: SPI 8 bits The Voltage-Supply-Analog is 3 V ~ 6 V. The Voltage Supply Digital for this product is 3 V ~ 6 V. Configuration S/H-ADC The architecture of this product is SAR . External is the reference type. 1 units Power-off control: 15 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Serial SPI interface type Number-of-Converters: 1 Converter 45.5 kS/s Sampling Rate Analog supply voltage: 3 V to 6 V Digital Supply Voltage: 3 V to 6 V Integral Nonlinearity: +/- 0.5 LSB Differential nonlinearity: +/- 0.5 LSB

TLC548ID Image

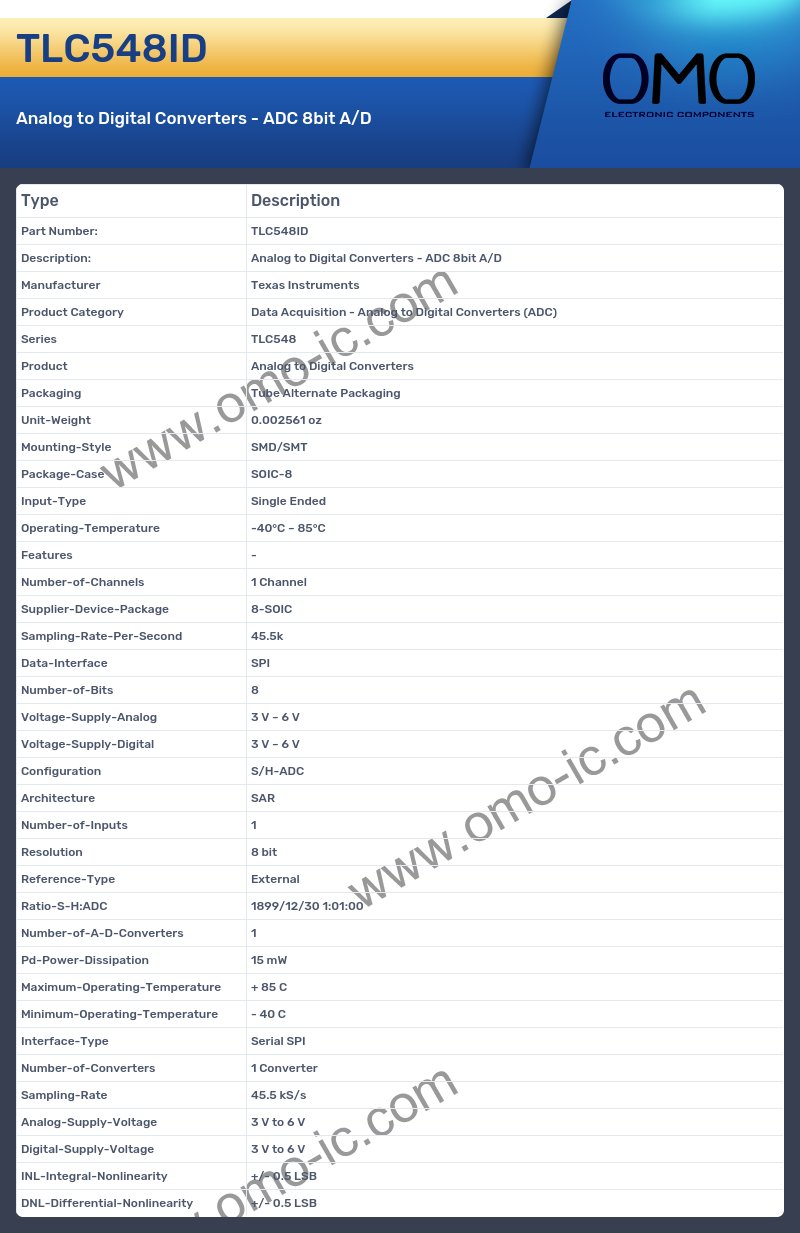

TLC548ID Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series TLC548
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features -
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Sampling-Rate-Per-Second 45.5k
• Data-Interface SPI
• Number-of-Bits 8
• Voltage-Supply-Analog 3 V ~ 6 V
• Voltage-Supply-Digital 3 V ~ 6 V
• Configuration S/H-ADC
• Architecture SAR
• Number-of-Inputs 1
• Resolution 8 bit
• Reference-Type External
• Ratio-S-H:ADC 1899/12/30 1:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 15 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 40 C
• Interface-Type Serial SPI
• Number-of-Converters 1 Converter
• Sampling-Rate 45.5 kS/s
• Analog-Supply-Voltage 3 V to 6 V
• Digital-Supply-Voltage 3 V to 6 V
• INL-Integral-Nonlinearity +/- 0.5 LSB
• DNL-Differential-Nonlinearity +/- 0.5 LSB
