TL712CDR Overview

Product belongs to the TL712 series. This product is categorized as Analog Comparators Type: Differential Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 The Rail to Rail for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Complementary, Push-Pull, Tri-State, TTL Number of channels: 1 Channel Supplier device package: 8-SOIC Voltage supply range: 4.75 V ~ 5.25 V 1 element 20mA maximum quiescent current. Maximum propagation delay: 25ns Hysteresis value of 5mV 25 ns response time Power-off control: No Shutdown Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 20 mA is 92 nA. Maximum supply voltage of 5.25 V Minimum supply voltage is 4.75 V Differential comparator type Input bias current of 600 uA The 5 mV. The 0 V to 5.5 V. 16 mA

TL712CDR Image

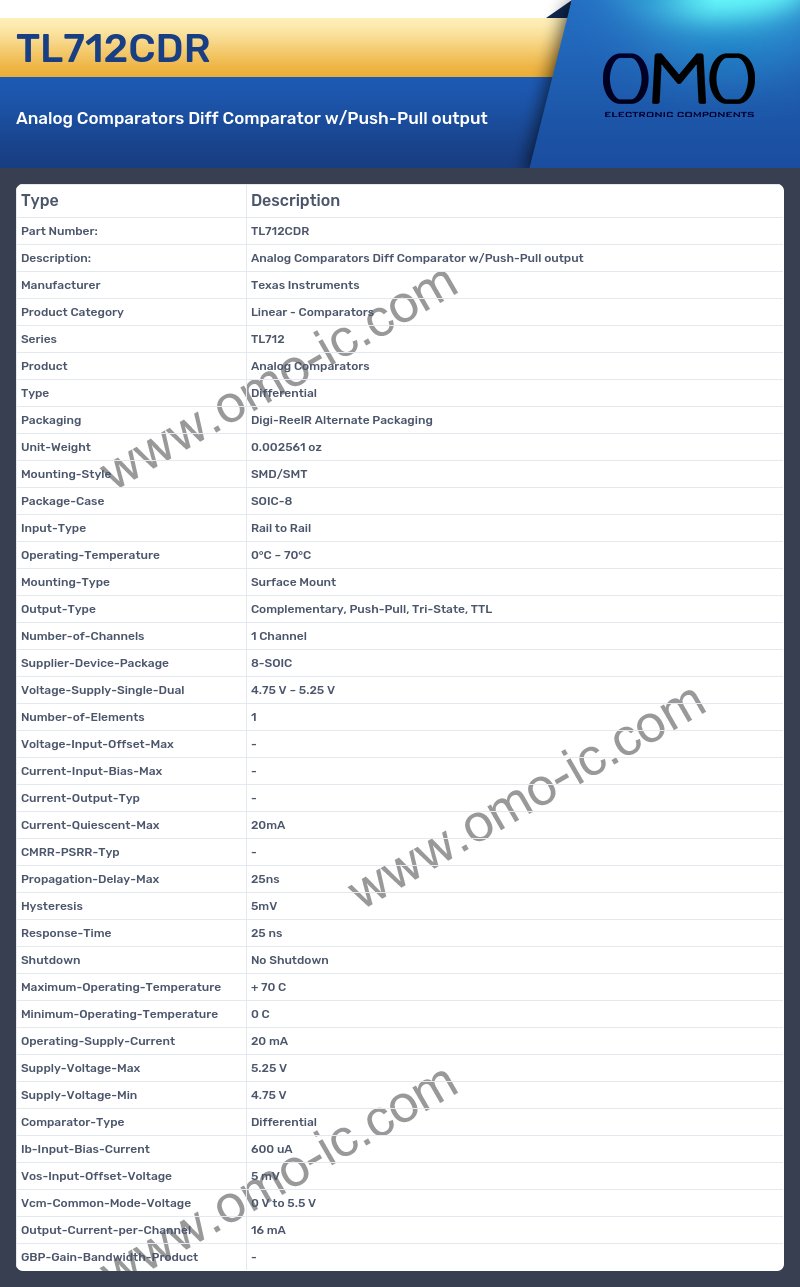

TL712CDR Specifications

• Manufacturer Texas Instruments
• Product Category Linear - Comparators
• Series TL712
• Product Analog Comparators
• Type Differential
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Input-Type Rail to Rail
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Complementary, Push-Pull, Tri-State, TTL
• Number-of-Channels 1 Channel
• Supplier-Device-Package 8-SOIC
• Voltage-Supply-Single-Dual 4.75 V ~ 5.25 V
• Number-of-Elements 1
• Voltage-Input-Offset-Max -
• Current-Input-Bias-Max -
• Current-Output-Typ -
• Current-Quiescent-Max 20mA
• CMRR-PSRR-Typ -
• Propagation-Delay-Max 25ns
• Hysteresis 5mV
• Response-Time 25 ns
• Shutdown No Shutdown
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 20 mA
• Supply-Voltage-Max 5.25 V
• Supply-Voltage-Min 4.75 V
• Comparator-Type Differential
• Ib-Input-Bias-Current 600 uA
• Vos-Input-Offset-Voltage 5 mV
• Vcm-Common-Mode-Voltage 0 V to 5.5 V
• Output-Current-per-Channel 16 mA
• GBP-Gain-Bandwidth-Product -
