TIP126

TIP126 Overview

Bulk is the packaging method for this product Weight of 0.042823 oz Through Hole Mounting-Style TO-220-3 Configuration Single Power-off control: 65 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to - 80 V The transistor polarity is PNP. The - 80 V voltage rating is 40 V. - 5 V rating of 5 V This product is capable of handling a - 5 A continuous collector current. Minimum hfe for DC collector-base gain is 1000. - 2 mA Maximum Collector Cut-off Current;

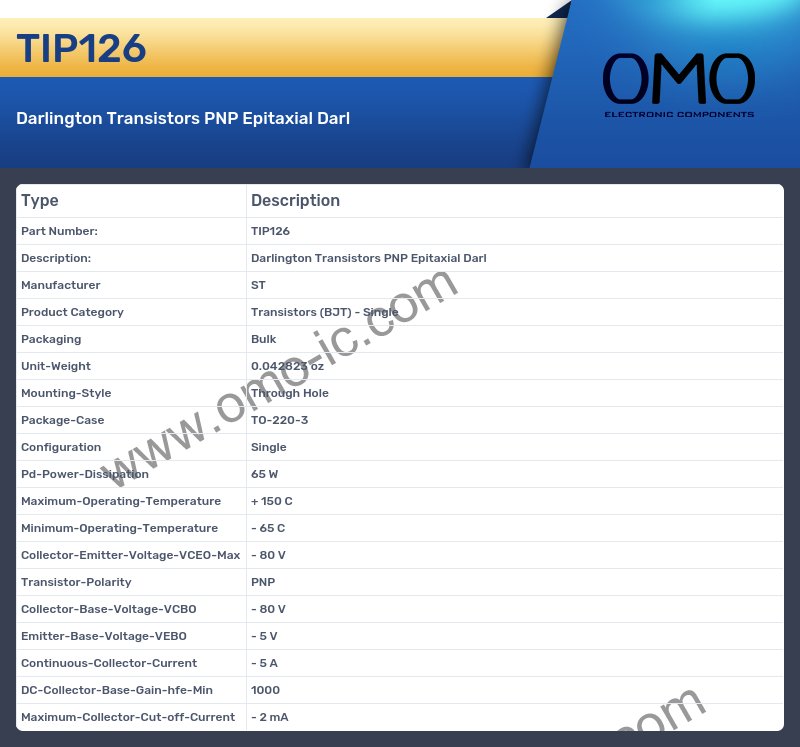

TIP126 Image

TIP126 Specifications

• Manufacturer ST
• Product Category Transistors (BJT) - Single
• Packaging Bulk
• Unit-Weight 0.042823 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Configuration Single
• Pd-Power-Dissipation 65 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max - 80 V
• Transistor-Polarity PNP
• Collector-Base-Voltage-VCBO - 80 V
• Emitter-Base-Voltage-VEBO - 5 V
• Continuous-Collector-Current - 5 A
• DC-Collector-Base-Gain-hfe-Min 1000
• Maximum-Collector-Cut-off-Current - 2 mA
