TIP120 Overview

Product belongs to the Darlingtons series. Tube is the packaging method for this product The TIP120_NL is listed as a Part-Aliase. Weight of 0.081130 oz Through Hole Mounting-Style TO-220-3 Through Hole mounting type Supplier device package: TO-220AB Configuration Single Transistor type: NPN - Darlington Maximum current collector Ic is 5A . Maximum collector-emitter breakdown voltage of 60V DC current gain minimum (hFE) of Ic/Vce at 1000 @ 3A, 3V. Product Attribute: Vce-Saturation-Max-Ib-Ic: 4V @ 20mA, 5A Power-off control: 2 W Maximum operating temperature of + 150 C Minimum operating temperature: - 65 C Rated VCEO up to 60 V The transistor polarity is NPN. The 60 V voltage rating is 40 V. 5 V rating of 5 V Max DC collector current: 5 A This product is capable of handling a 5 A continuous collector current. Minimum hfe for DC collector-base gain is 1000. 100 of 605. 200 uA Maximum Collector Cut-off Current;

TIP120 Image

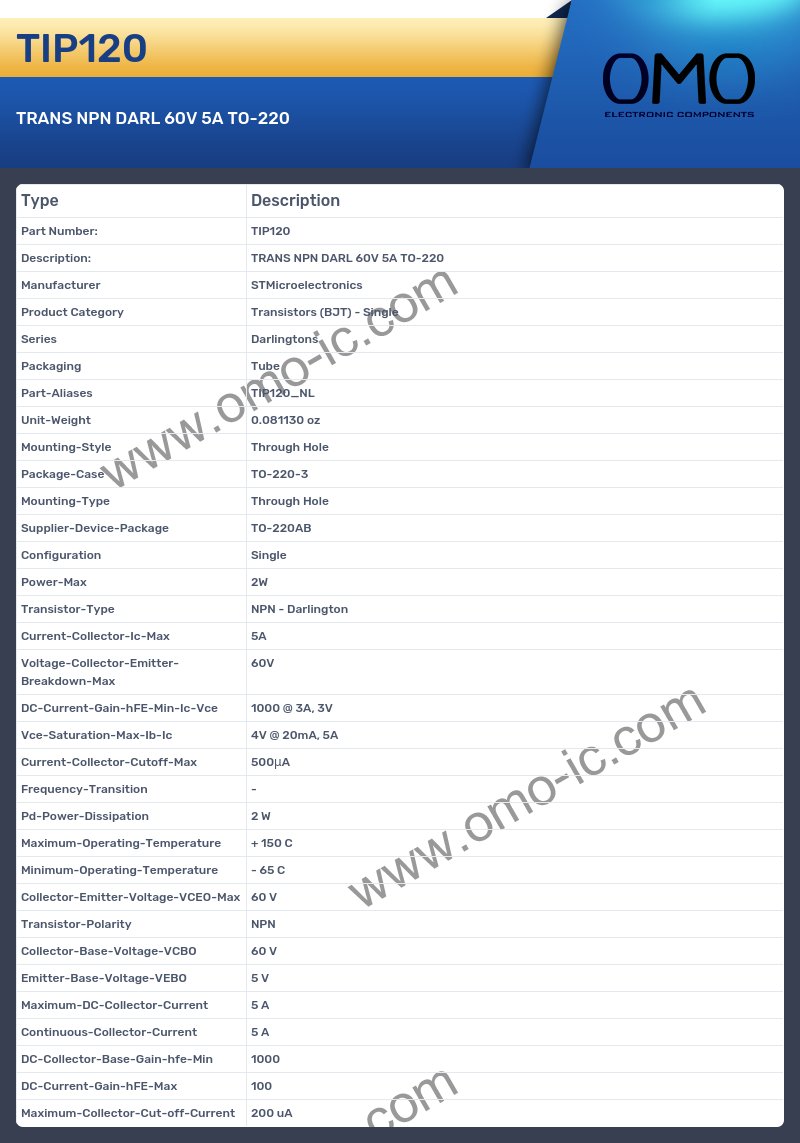

TIP120 Specifications

• Manufacturer STMicroelectronics
• Product Category Transistors (BJT) - Single
• Series Darlingtons
• Packaging Tube
• Part-Aliases TIP120_NL
• Unit-Weight 0.081130 oz
• Mounting-Style Through Hole
• Package-Case TO-220-3
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220AB
• Configuration Single
• Power-Max 2W
• Transistor-Type NPN - Darlington
• Current-Collector-Ic-Max 5A
• Voltage-Collector-Emitter-Breakdown-Max 60V
• DC-Current-Gain-hFE-Min-Ic-Vce 1000 @ 3A, 3V
• Vce-Saturation-Max-Ib-Ic 4V @ 20mA, 5A
• Current-Collector-Cutoff-Max 500μA
• Frequency-Transition -
• Pd-Power-Dissipation 2 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 65 C
• Collector-Emitter-Voltage-VCEO-Max 60 V
• Transistor-Polarity NPN
• Collector-Base-Voltage-VCBO 60 V
• Emitter-Base-Voltage-VEBO 5 V
• Maximum-DC-Collector-Current 5 A
• Continuous-Collector-Current 5 A
• DC-Collector-Base-Gain-hfe-Min 1000
• DC-Current-Gain-hFE-Max 100
• Maximum-Collector-Cut-off-Current 200 uA
