THS8135PHP

THS8135PHP Overview

Product belongs to the THS8135 series. This product is categorized as Digital to Analog Converters Type: Video DAC Tray Alternate Packaging is the packaging method for this product Weight of 0.004744 oz SMD/SMT Mounting-Style HTQFP-48 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Voltage Number of channels: 3 Channel Voltage Supply Range: 1.65 V ~ 2 V, 3 V ~ 3.6 V Supplier device package: 48-HTQFP (7x7) Resolution-Bits: 10 b This product's 240M. Data-Interface: Parallel Voltage supply source: Analog and digital Analog and Digital The architecture of this product is Current Steering . Internal is the reference type. The 15 ns is an impressive 15 us. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Maximum supply voltage of 3.3 V Minimum supply voltage is 1.8 V Number-of-Converters: 3 Converter 240 MS/s Sampling Rate Integral Nonlinearity: - 2 LSB / 1.5 LSB

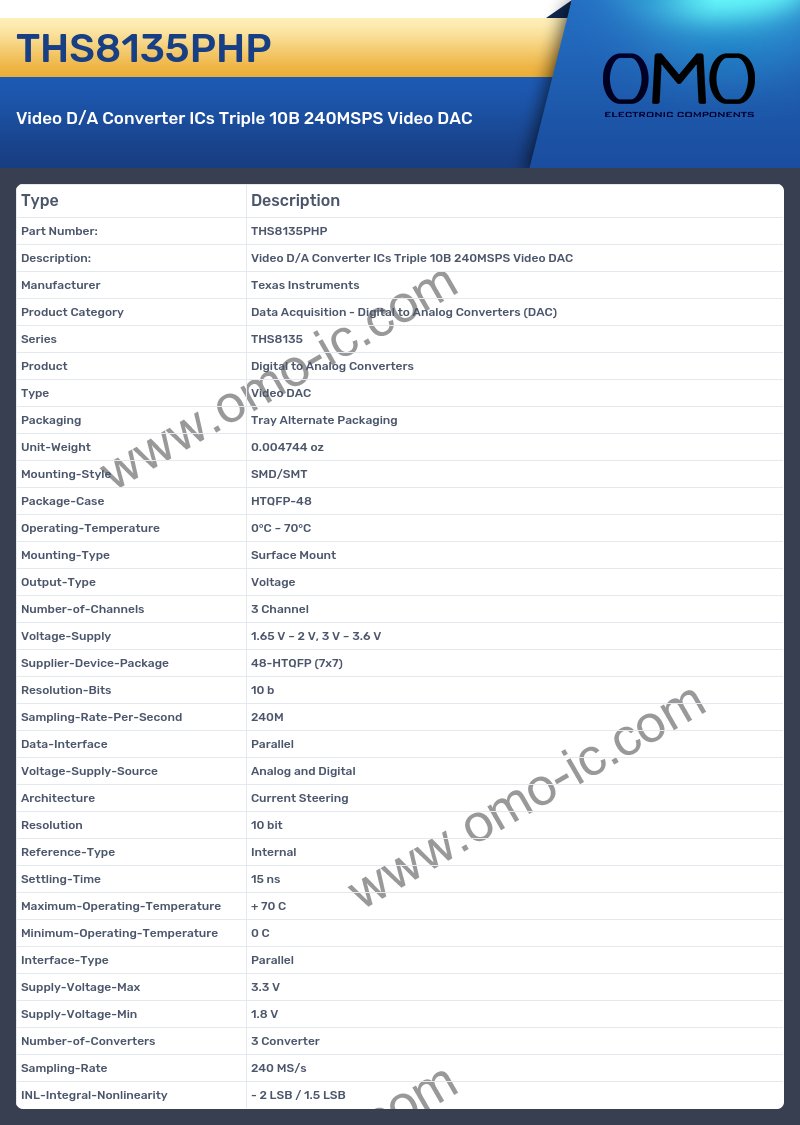

THS8135PHP Image

THS8135PHP Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Digital to Analog Converters (DAC)
• Series THS8135
• Product Digital to Analog Converters
• Type Video DAC
• Packaging Tray Alternate Packaging
• Unit-Weight 0.004744 oz
• Mounting-Style SMD/SMT
• Package-Case HTQFP-48
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Voltage
• Number-of-Channels 3 Channel
• Voltage-Supply 1.65 V ~ 2 V, 3 V ~ 3.6 V
• Supplier-Device-Package 48-HTQFP (7x7)
• Resolution-Bits 10 b
• Sampling-Rate-Per-Second 240M
• Data-Interface Parallel
• Voltage-Supply-Source Analog and Digital
• Architecture Current Steering
• Resolution 10 bit
• Reference-Type Internal
• Settling-Time 15 ns
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• Supply-Voltage-Max 3.3 V
• Supply-Voltage-Min 1.8 V
• Number-of-Converters 3 Converter
• Sampling-Rate 240 MS/s
• INL-Integral-Nonlinearity - 2 LSB / 1.5 LSB
