THS1007IDA

THS1007IDA Overview

Product belongs to the THS1007 series. This product is categorized as Analog to Digital Converters Tube is the packaging method for this product Weight of 0.006113 oz SMD/SMT Mounting-Style TSSOP-32 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: -40°C ~ 85°C Number of channels: 2 Channel/4 Channel Supplier device package: 32-TSSOP This product's 6M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 5V. Configuration S/H-MUX-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 216 mW Maximum operating temperature of + 85 C Minimum operating temperature: - 30 C Parallel interface type Signal-to-Noise Ratio of 61 dB Number-of-Converters: 1 Converter 6 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 3 V to 5.25 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

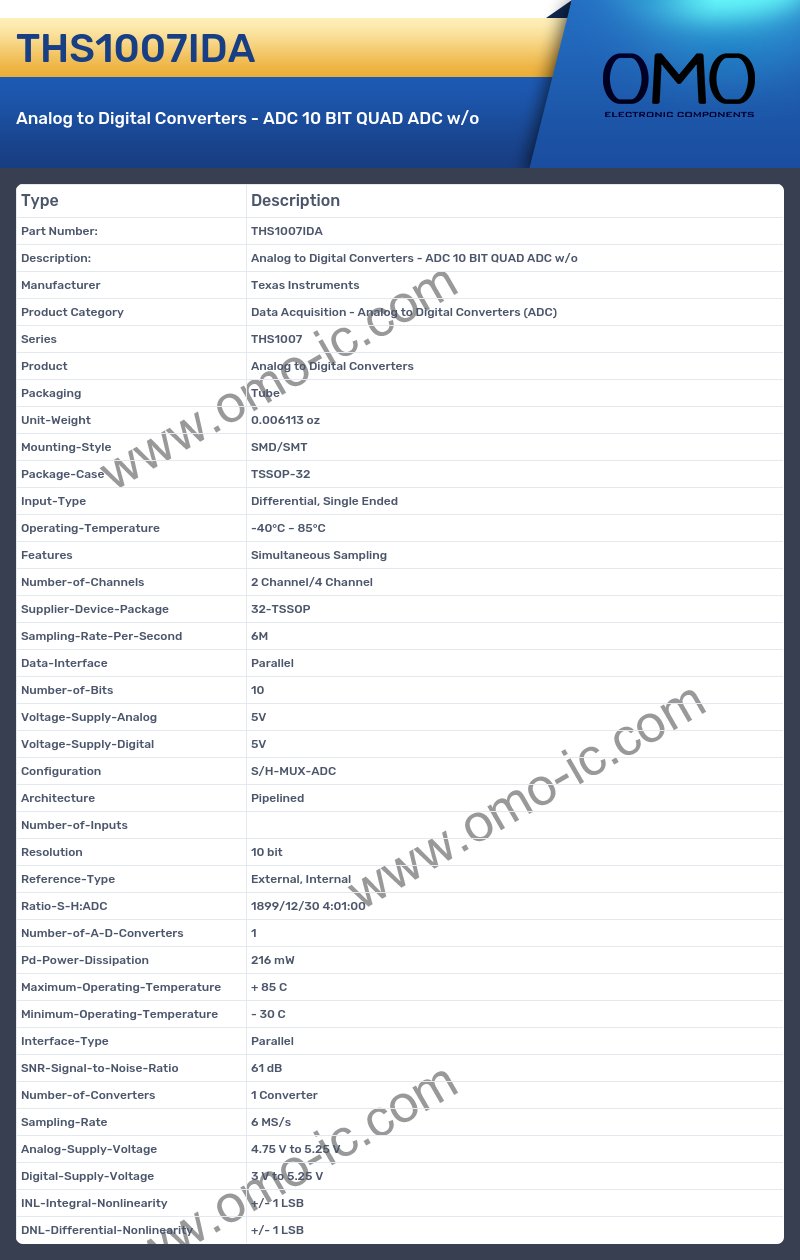

THS1007IDA Image

THS1007IDA Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series THS1007
• Product Analog to Digital Converters
• Packaging Tube
• Unit-Weight 0.006113 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-32
• Input-Type Differential, Single Ended
• Operating-Temperature -40°C ~ 85°C
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel/4 Channel
• Supplier-Device-Package 32-TSSOP
• Sampling-Rate-Per-Second 6M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 5V
• Configuration S/H-MUX-ADC
• Architecture Pipelined
• Number-of-Inputs
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 1899/12/30 4:01:00
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 216 mW
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 30 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 61 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 6 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 3 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
