THS10064CDA Overview

Product belongs to the THS10064 series. This product is categorized as Analog to Digital Converters Tube Alternate Packaging is the packaging method for this product Weight of 0.006113 oz SMD/SMT Mounting-Style TSSOP-32 The Differential, Single Ended for this product is CMOS/TTL. Operational temperature range: 0°C ~ 70°C Number of channels: 2 Channel/4 Channel Supplier device package: 32-TSSOP This product's 6M. Data-Interface: Parallel 10 bits The Voltage-Supply-Analog is 5V. The Voltage Supply Digital for this product is 3 V ~ 5.25 V. Configuration S/H-MUX-ADC The architecture of this product is Pipelined . External, Internal is the reference type. 1 units Power-off control: 216 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Parallel interface type Signal-to-Noise Ratio of 61 dB Number-of-Converters: 1 Converter 6 MS/s Sampling Rate Analog supply voltage: 4.75 V to 5.25 V Digital Supply Voltage: 3 V to 5.25 V Integral Nonlinearity: +/- 1 LSB Differential nonlinearity: +/- 1 LSB

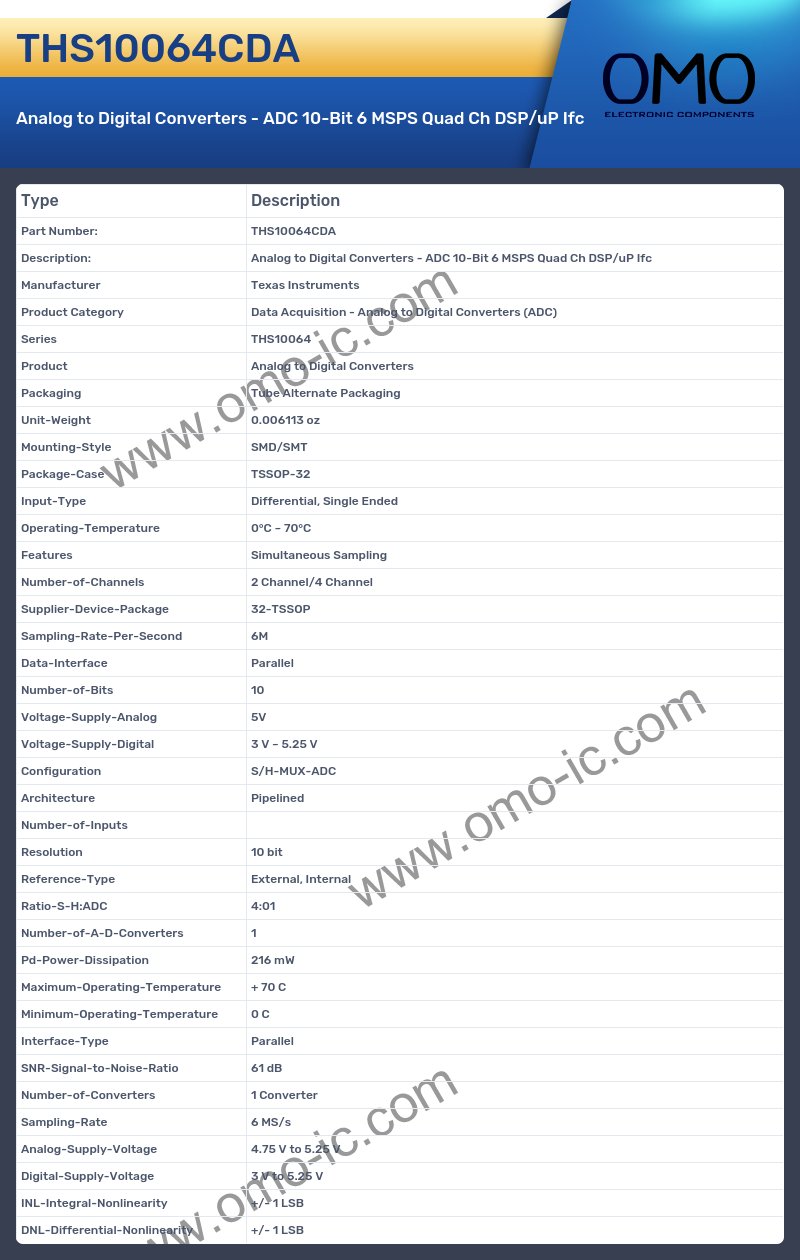

THS10064CDA Image

THS10064CDA Specifications

• Manufacturer Texas Instruments
• Product Category Data Acquisition - Analog to Digital Converters (ADC)
• Series THS10064
• Product Analog to Digital Converters
• Packaging Tube Alternate Packaging
• Unit-Weight 0.006113 oz
• Mounting-Style SMD/SMT
• Package-Case TSSOP-32
• Input-Type Differential, Single Ended
• Operating-Temperature 0°C ~ 70°C
• Features Simultaneous Sampling
• Number-of-Channels 2 Channel/4 Channel
• Supplier-Device-Package 32-TSSOP
• Sampling-Rate-Per-Second 6M
• Data-Interface Parallel
• Number-of-Bits 10
• Voltage-Supply-Analog 5V
• Voltage-Supply-Digital 3 V ~ 5.25 V
• Configuration S/H-MUX-ADC
• Architecture Pipelined
• Number-of-Inputs
• Resolution 10 bit
• Reference-Type External, Internal
• Ratio-S-H:ADC 4:01
• Number-of-A-D-Converters 1
• Pd-Power-Dissipation 216 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Interface-Type Parallel
• SNR-Signal-to-Noise-Ratio 61 dB
• Number-of-Converters 1 Converter
• Sampling-Rate 6 MS/s
• Analog-Supply-Voltage 4.75 V to 5.25 V
• Digital-Supply-Voltage 3 V to 5.25 V
• INL-Integral-Nonlinearity +/- 1 LSB
• DNL-Differential-Nonlinearity +/- 1 LSB
