TDE1767DP

TDE1767DP Overview

Product belongs to the TDE1767 series. This product is categorized as Relay Drivers Type: Interface Circuit - Relay and Lamp - Driver Tube is the packaging method for this product Weight of 0.032805 oz Through Hole Mounting-Style PDIP-8 The Inverting, Non-Inverting for this product is CMOS/TTL. Operational temperature range: -25°C ~ 85°C (TA) Output-Type: Bipolar Interface: On/Off Supplier device package: 8-DIP The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Single Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The -. Voltage-Load range is 6 V ~ 45 V. Our product delivers a 1.2A of 50mA for efficient power management. The Switch-Type is Relay, Solenoid Driver. Power-off control: 52 W Maximum operating temperature of + 85 C Minimum operating temperature: - 25 C 5.8 mA is 92 nA. Maximum supply voltage of 45 V Minimum supply voltage is 6 V Number-of-Drivers: 1 Driver

TDE1767DP Image

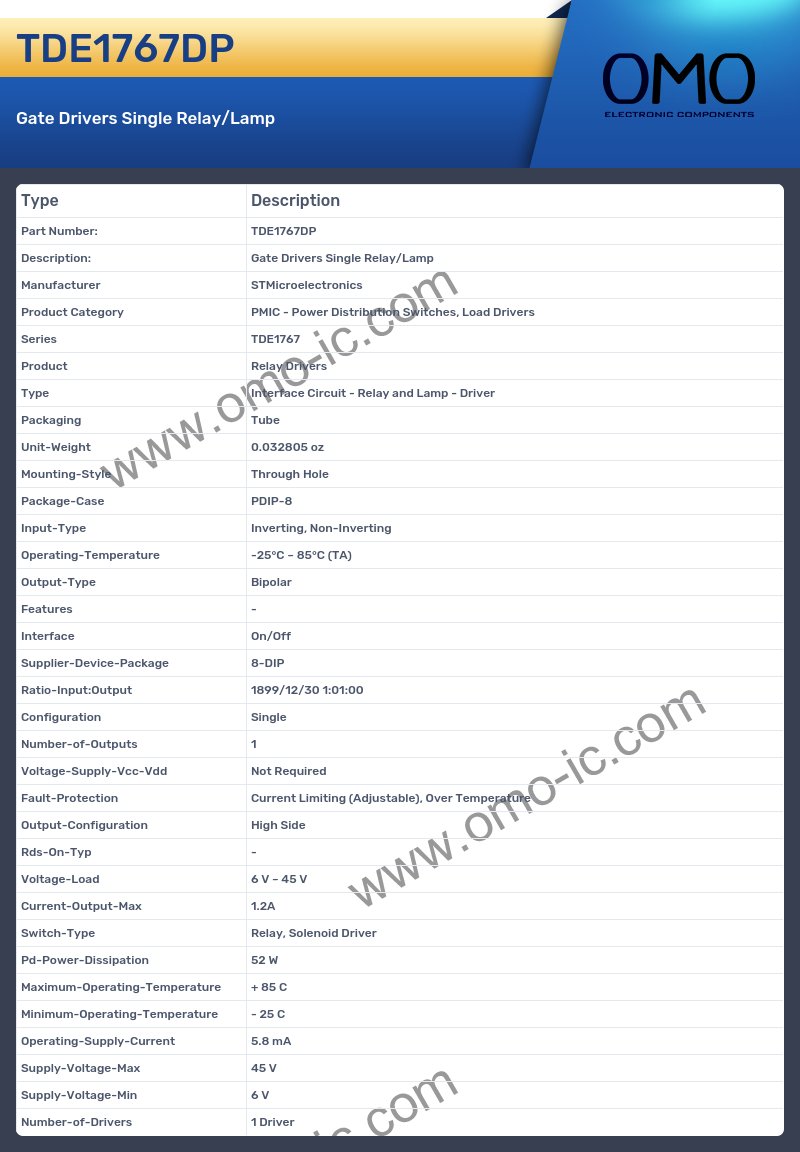

TDE1767DP Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series TDE1767
• Product Relay Drivers
• Type Interface Circuit - Relay and Lamp - Driver
• Packaging Tube
• Unit-Weight 0.032805 oz
• Mounting-Style Through Hole
• Package-Case PDIP-8
• Input-Type Inverting, Non-Inverting
• Operating-Temperature -25°C ~ 85°C (TA)
• Output-Type Bipolar
• Features -
• Interface On/Off
• Supplier-Device-Package 8-DIP
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Single
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Adjustable), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ -
• Voltage-Load 6 V ~ 45 V
• Current-Output-Max 1.2A
• Switch-Type Relay, Solenoid Driver
• Pd-Power-Dissipation 52 W
• Maximum-Operating-Temperature + 85 C
• Minimum-Operating-Temperature - 25 C
• Operating-Supply-Current 5.8 mA
• Supply-Voltage-Max 45 V
• Supply-Voltage-Min 6 V
• Number-of-Drivers 1 Driver
