STW12N150K5

STW12N150K5 Overview

Product belongs to the MDmesh K5 series. Tube is the packaging method for this product Weight of 1.340411 oz Through Hole Mounting-Style TO-247-3 Si is the technology used. Operational temperature range: -55°C ~ 150°C (TJ) Through Hole mounting type Number of channels: 1 Channel Supplier device package: TO-247 This product uses an MOSFET N-Channel, Metal Oxide FET-Type transistor. 1500V (1.5kV) This product has an 1360pF @ 100V value of 300pF @ 25V. This product's Standard. 7A (Tc) continuous drain-ID current at 25°C; This product has an 1.9 Ohm @ 3.5A, 10V of 12 Ohm @ 150mA, 0V. Power-off control: 250 W Maximum operating temperature of + 150 C Minimum operating temperature: - 55 C This product has a 37 ns of 16 ns. This product has a 8 ns of 16 ns. This product's +/- 30 V. The ID of continuous drain current is 7 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 1.5 kV. This product has a 3 V to 5 V Vgs-th gate-source threshold voltage for efficient power management. The 1.9 Ohms for this product is 12 Ohms. The transistor polarity is N-Channel. 'Typical-Turn-Off-Delay-Time' of 90 ns This product has a 25 ns. Qg-Gate-Charge is 47 nC. This product operates in Enhancement channel mode for optimal performance.

STW12N150K5 Image

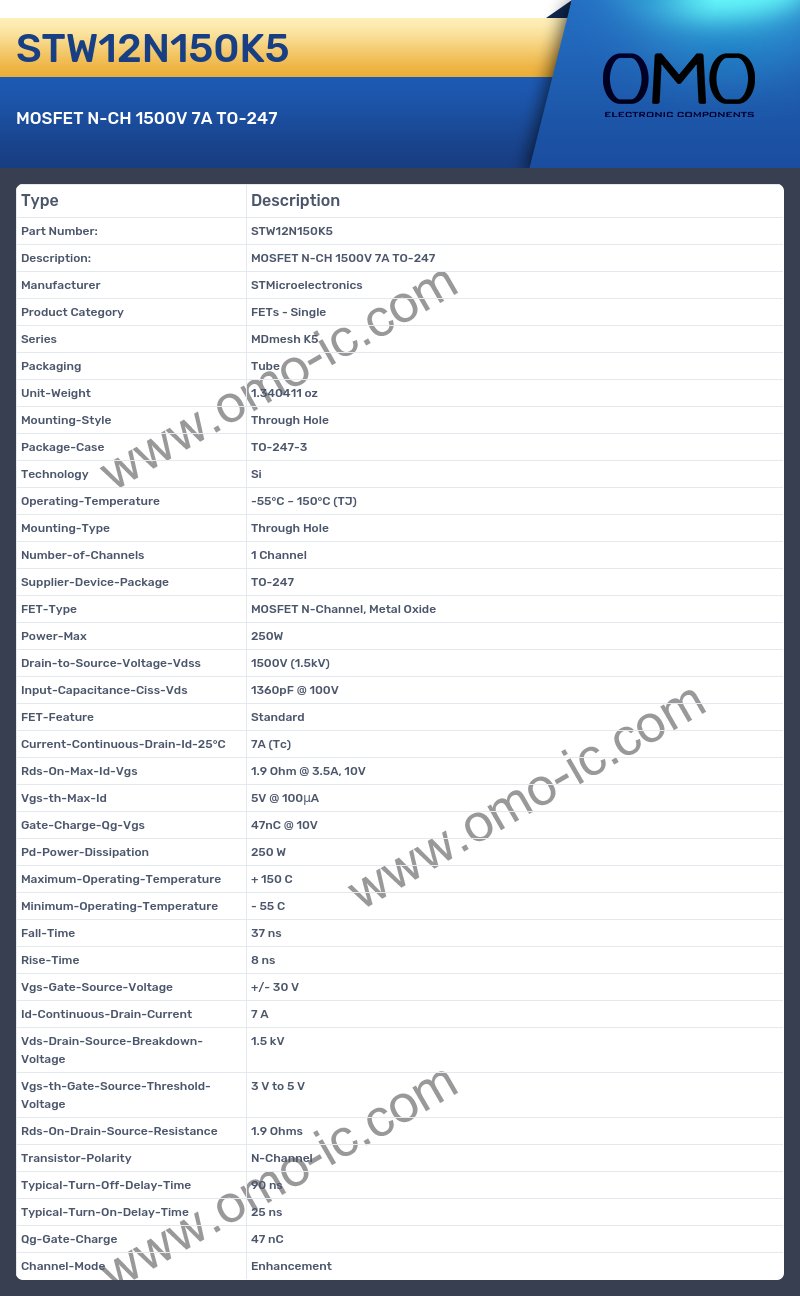

STW12N150K5 Specifications

• Manufacturer STMicroelectronics
• Product Category FETs - Single
• Series MDmesh K5
• Packaging Tube
• Unit-Weight 1.340411 oz
• Mounting-Style Through Hole
• Package-Case TO-247-3
• Technology Si
• Operating-Temperature -55°C ~ 150°C (TJ)
• Mounting-Type Through Hole
• Number-of-Channels 1 Channel
• Supplier-Device-Package TO-247
• FET-Type MOSFET N-Channel, Metal Oxide
• Power-Max 250W
• Drain-to-Source-Voltage-Vdss 1500V (1.5kV)
• Input-Capacitance-Ciss-Vds 1360pF @ 100V
• FET-Feature Standard
• Current-Continuous-Drain-Id-25°C 7A (Tc)
• Rds-On-Max-Id-Vgs 1.9 Ohm @ 3.5A, 10V
• Vgs-th-Max-Id 5V @ 100μA
• Gate-Charge-Qg-Vgs 47nC @ 10V
• Pd-Power-Dissipation 250 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 55 C
• Fall-Time 37 ns
• Rise-Time 8 ns
• Vgs-Gate-Source-Voltage +/- 30 V
• Id-Continuous-Drain-Current 7 A
• Vds-Drain-Source-Breakdown-Voltage 1.5 kV
• Vgs-th-Gate-Source-Threshold-Voltage 3 V to 5 V
• Rds-On-Drain-Source-Resistance 1.9 Ohms
• Transistor-Polarity N-Channel
• Typical-Turn-Off-Delay-Time 90 ns
• Typical-Turn-On-Delay-Time 25 ns
• Qg-Gate-Charge 47 nC
• Channel-Mode Enhancement
