STTS2002B2DN3F

STTS2002B2DN3F Overview

Product belongs to the STTS2002 series. This product is categorized as Sensor Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style TDFN-8 Operational temperature range: -40°C ~ 125°C Surface Mount mounting type Output-Type: I2C/SMBus Product function is Temp Monitoring System (Sensor). Voltage Supply Range: 2.3 V ~ 3.6 V Supplier device package: 8-TDFN (2x3) Configuration Local Topology: ADC (Sigma Delta), EEPROM, Register Bank feedback Accuracy is rated at ±3°C(Max) . Internal Our product includes an Output-Alarm feature to alert users of potential issues, Yes. No fan output available Power-off control: Shutdown Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 160 uA is 92 nA. 2-Wire I2C SMBus interface type Output current: 10 mA Maximum supply voltage of 3.6 VDC Minimum supply voltage is 2.3 VDC Programmable temperature threshold

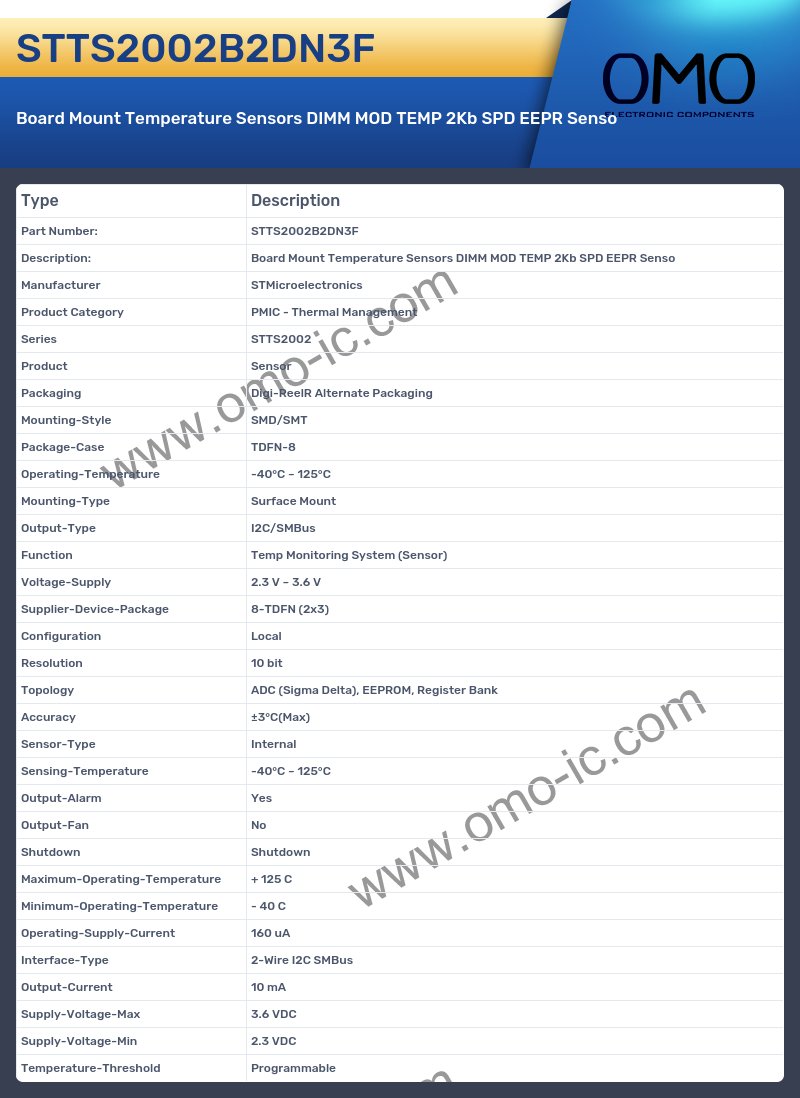

STTS2002B2DN3F Image

STTS2002B2DN3F Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Thermal Management
• Series STTS2002
• Product Sensor
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case TDFN-8
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Surface Mount
• Output-Type I2C/SMBus
• Function Temp Monitoring System (Sensor)
• Voltage-Supply 2.3 V ~ 3.6 V
• Supplier-Device-Package 8-TDFN (2x3)
• Configuration Local
• Resolution 10 bit
• Topology ADC (Sigma Delta), EEPROM, Register Bank
• Accuracy ±3°C(Max)
• Sensor-Type Internal
• Sensing-Temperature -40°C ~ 125°C
• Output-Alarm Yes
• Output-Fan No
• Shutdown Shutdown
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 160 uA
• Interface-Type 2-Wire I2C SMBus
• Output-Current 10 mA
• Supply-Voltage-Max 3.6 VDC
• Supply-Voltage-Min 2.3 VDC
• Temperature-Threshold Programmable
