STTH5R06FP

STTH5R06FP Overview

Product belongs to the STTH5R06 series. This product is categorized as Ultra Fast Recovery Rectifiers Tube is the packaging method for this product Weight of 0.090478 oz Through Hole Mounting-Style TO-220-2 Full Pack, Isolated Tab Through Hole mounting type Supplier device package: TO-220FPAC Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 20μA @ 600V Current-Reverse-Leakage-Vr 1. Vf Max 2.9V @ 5A is the Voltage-Forward; Maximum DC reverse voltage 600V The 5A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 2.9 V VR Reverse Voltage of 600 V Ir-Reverse-Current is 20 uA. If-Forward-Current is 5 A. Maximum Surge Current: 50 A

STTH5R06FP Image

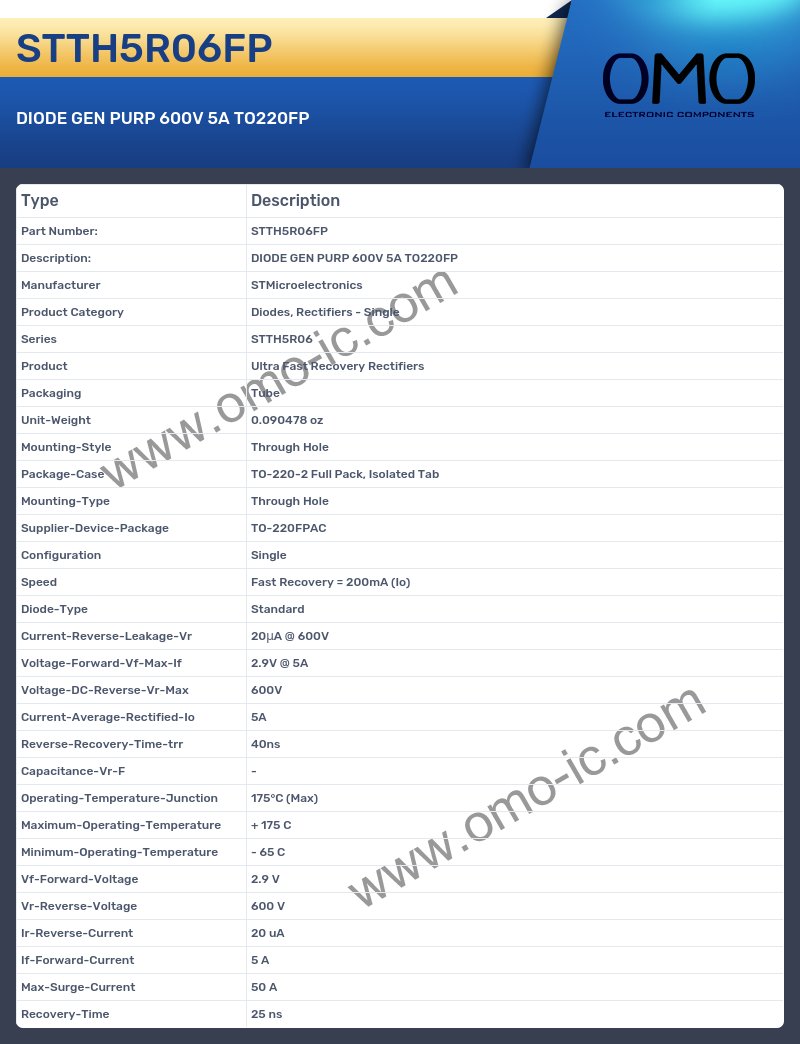

STTH5R06FP Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH5R06
• Product Ultra Fast Recovery Rectifiers
• Packaging Tube
• Unit-Weight 0.090478 oz
• Mounting-Style Through Hole
• Package-Case TO-220-2 Full Pack, Isolated Tab
• Mounting-Type Through Hole
• Supplier-Device-Package TO-220FPAC
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 20μA @ 600V
• Voltage-Forward-Vf-Max-If 2.9V @ 5A
• Voltage-DC-Reverse-Vr-Max 600V
• Current-Average-Rectified-Io 5A
• Reverse-Recovery-Time-trr 40ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 2.9 V
• Vr-Reverse-Voltage 600 V
• Ir-Reverse-Current 20 uA
• If-Forward-Current 5 A
• Max-Surge-Current 50 A
• Recovery-Time 25 ns
