STTH5L06RL

STTH5L06RL Overview

Product belongs to the STTH5L06 series. This product is categorized as Ultra Fast Recovery Rectifiers Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.038801 oz Through Hole Mounting-Style DO-201AD, Axial Through Hole mounting type Supplier device package: DO-201AD Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 5μA @ 600V Current-Reverse-Leakage-Vr 1. Vf Max 1.3V @ 5A is the Voltage-Forward; Maximum DC reverse voltage 600V The 5A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.3 V VR Reverse Voltage of 600 V Ir-Reverse-Current is 5 uA. If-Forward-Current is 5 A. Maximum Surge Current: 110 A

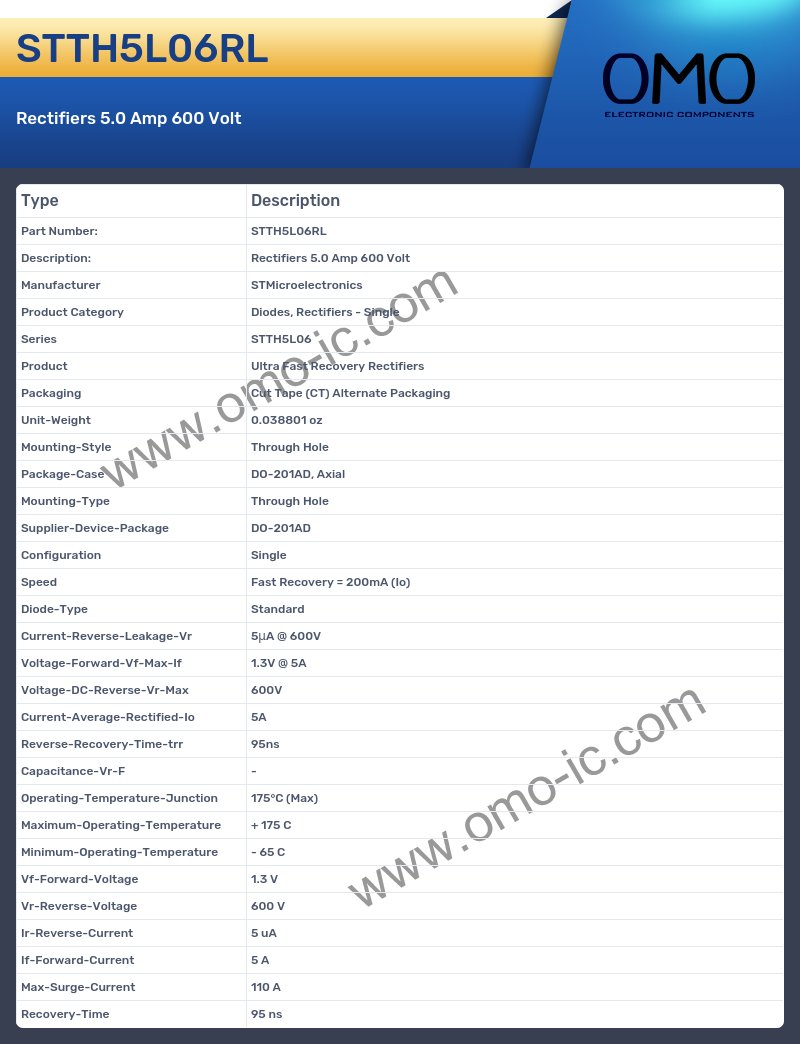

STTH5L06RL Image

STTH5L06RL Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH5L06
• Product Ultra Fast Recovery Rectifiers
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.038801 oz
• Mounting-Style Through Hole
• Package-Case DO-201AD, Axial
• Mounting-Type Through Hole
• Supplier-Device-Package DO-201AD
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 5μA @ 600V
• Voltage-Forward-Vf-Max-If 1.3V @ 5A
• Voltage-DC-Reverse-Vr-Max 600V
• Current-Average-Rectified-Io 5A
• Reverse-Recovery-Time-trr 95ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.3 V
• Vr-Reverse-Voltage 600 V
• Ir-Reverse-Current 5 uA
• If-Forward-Current 5 A
• Max-Surge-Current 110 A
• Recovery-Time 95 ns
