STTH512B-TR

STTH512B-TR Overview

Product belongs to the STTH512 series. This product is categorized as Ultra Fast Recovery Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.063493 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Surface Mount mounting type Supplier device package: D-Pak Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 5μA @ 1200V Current-Reverse-Leakage-Vr 1. Vf Max 2.2V @ 5A is the Voltage-Forward; Maximum DC reverse voltage 1200V (1.2kV) The 5A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 2.2 V VR Reverse Voltage of 1200 V Ir-Reverse-Current is 5 uA. If-Forward-Current is 5 A. Maximum Surge Current: 55 A

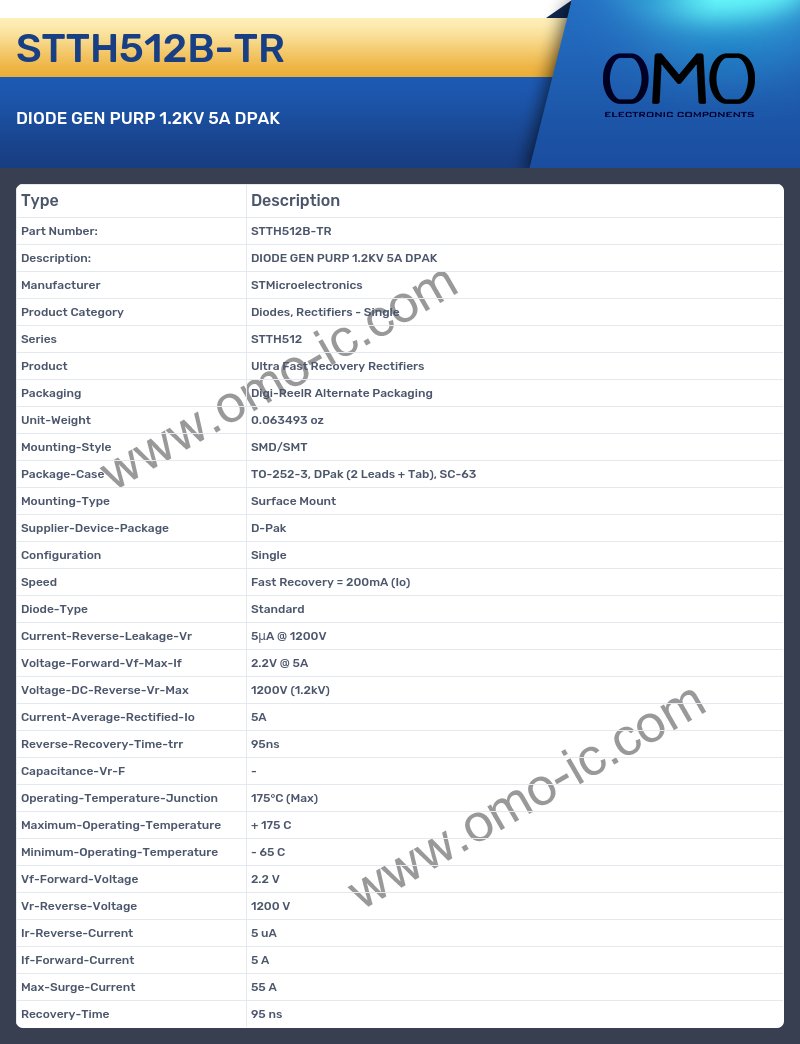

STTH512B-TR Image

STTH512B-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH512
• Product Ultra Fast Recovery Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.063493 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Mounting-Type Surface Mount
• Supplier-Device-Package D-Pak
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 5μA @ 1200V
• Voltage-Forward-Vf-Max-If 2.2V @ 5A
• Voltage-DC-Reverse-Vr-Max 1200V (1.2kV)
• Current-Average-Rectified-Io 5A
• Reverse-Recovery-Time-trr 95ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 2.2 V
• Vr-Reverse-Voltage 1200 V
• Ir-Reverse-Current 5 uA
• If-Forward-Current 5 A
• Max-Surge-Current 55 A
• Recovery-Time 95 ns
