STTH4R02U

STTH4R02U Overview

Product belongs to the STTH4R02 series. This product is categorized as Ultra Fast Recovery Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006349 oz SMD/SMT Mounting-Style DO-214AA, SMB Surface Mount mounting type Supplier device package: SMB Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 3μA @ 200V Current-Reverse-Leakage-Vr 1. Vf Max 1.05V @ 4A is the Voltage-Forward; Maximum DC reverse voltage 200V The 4A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.25 V at 12 A VR Reverse Voltage of 200 V Ir-Reverse-Current is 3 uA. If-Forward-Current is 4 A. Maximum Surge Current: 70 A

STTH4R02U Image

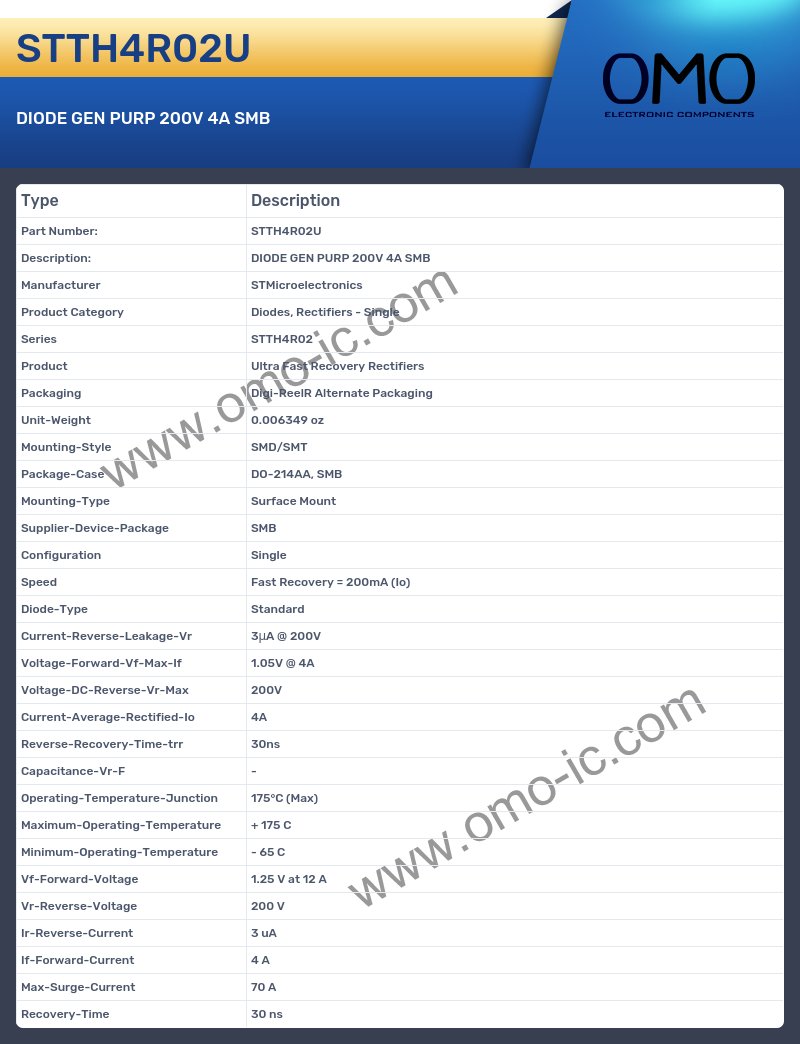

STTH4R02U Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH4R02
• Product Ultra Fast Recovery Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006349 oz
• Mounting-Style SMD/SMT
• Package-Case DO-214AA, SMB
• Mounting-Type Surface Mount
• Supplier-Device-Package SMB
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 3μA @ 200V
• Voltage-Forward-Vf-Max-If 1.05V @ 4A
• Voltage-DC-Reverse-Vr-Max 200V
• Current-Average-Rectified-Io 4A
• Reverse-Recovery-Time-trr 30ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.25 V at 12 A
• Vr-Reverse-Voltage 200 V
• Ir-Reverse-Current 3 uA
• If-Forward-Current 4 A
• Max-Surge-Current 70 A
• Recovery-Time 30 ns
