STTH3R02RL

STTH3R02RL Overview

Product belongs to the STTH3R02 series. This product is categorized as Ultra Fast Recovery Rectifiers Cut Tape (CT) Alternate Packaging is the packaging method for this product Weight of 0.038801 oz Through Hole Mounting-Style DO-201AD, Axial Through Hole mounting type Supplier device package: DO-201AD Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 3μA @ 200V Current-Reverse-Leakage-Vr 1. Vf Max 1V @ 3A is the Voltage-Forward; Maximum DC reverse voltage 200V The 3A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.2 V at 9 A VR Reverse Voltage of 200 V Ir-Reverse-Current is 3 uA. If-Forward-Current is 3 A. Maximum Surge Current: 75 A

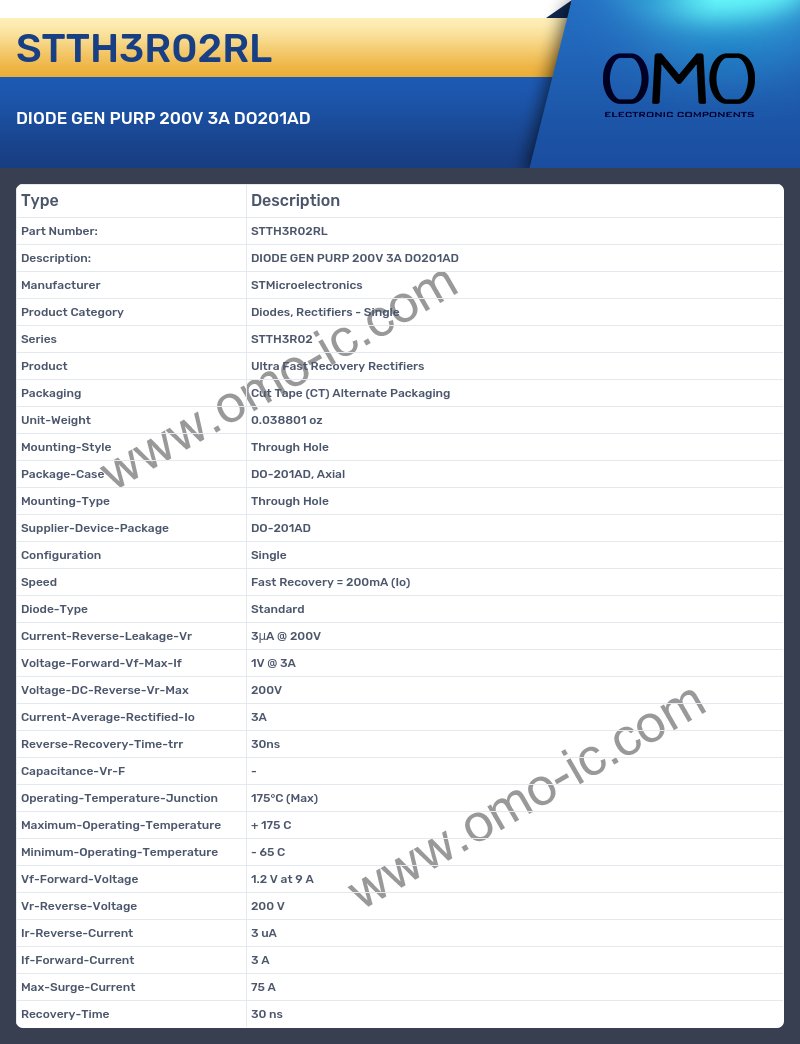

STTH3R02RL Image

STTH3R02RL Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH3R02
• Product Ultra Fast Recovery Rectifiers
• Packaging Cut Tape (CT) Alternate Packaging
• Unit-Weight 0.038801 oz
• Mounting-Style Through Hole
• Package-Case DO-201AD, Axial
• Mounting-Type Through Hole
• Supplier-Device-Package DO-201AD
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 3μA @ 200V
• Voltage-Forward-Vf-Max-If 1V @ 3A
• Voltage-DC-Reverse-Vr-Max 200V
• Current-Average-Rectified-Io 3A
• Reverse-Recovery-Time-trr 30ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.2 V at 9 A
• Vr-Reverse-Voltage 200 V
• Ir-Reverse-Current 3 uA
• If-Forward-Current 3 A
• Max-Surge-Current 75 A
• Recovery-Time 30 ns
