STTH15L06G-TR

STTH15L06G-TR Overview

Product belongs to the STTH15L06 series. This product is categorized as Ultra Fast Recovery Rectifiers Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.070548 oz SMD/SMT Mounting-Style TO-263-3, D2Pak (2 Leads + Tab), TO-263AB Surface Mount mounting type Supplier device package: D2PAK Configuration Single Operating frequency: Fast Recovery = 200mA (Io) Standard diode type The 15μA @ 600V Current-Reverse-Leakage-Vr 1. Vf Max 1.55V @ 15A is the Voltage-Forward; Maximum DC reverse voltage 600V The 20A Current-Average-Rectified-Io; The capacitance value of this product is - for maximum efficiency. Operating-Temperature-Junction: 175°C (Max) Maximum operating temperature of + 175 C Minimum operating temperature: - 65 C Vf-Forward-Voltage: 1.55 V at 15 A VR Reverse Voltage of 600 V Ir-Reverse-Current is 15 uA. If-Forward-Current is 20 A. Maximum Surge Current: 130 A

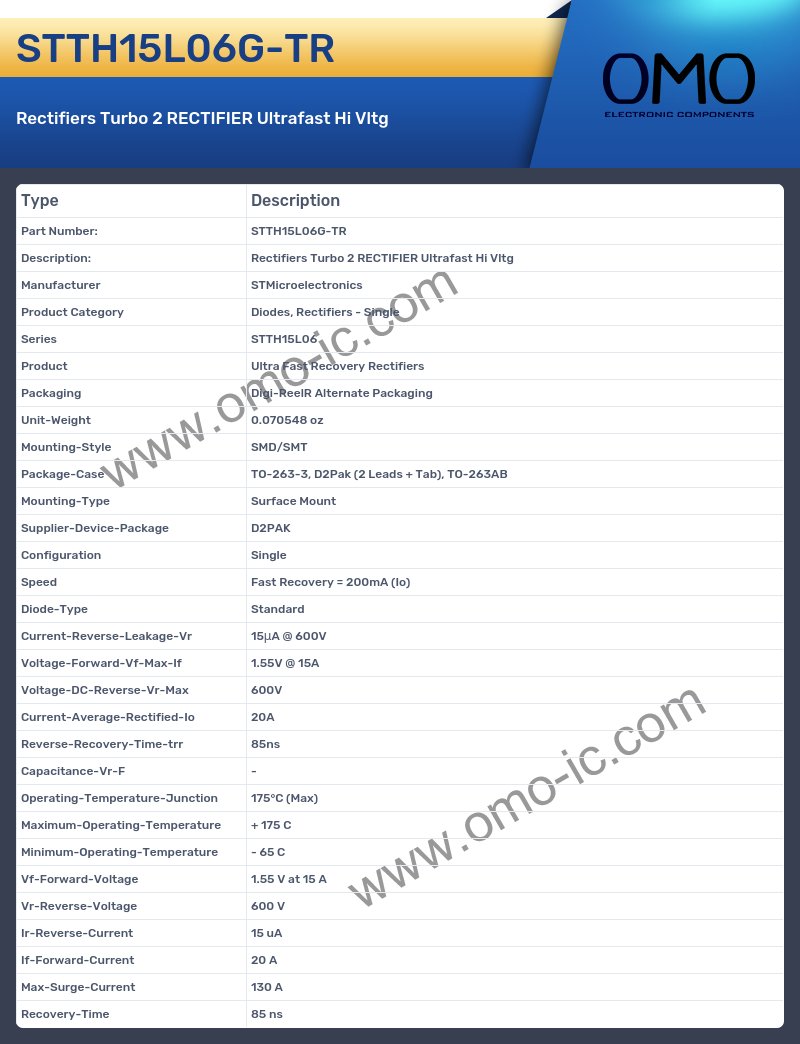

STTH15L06G-TR Image

STTH15L06G-TR Specifications

• Manufacturer STMicroelectronics
• Product Category Diodes, Rectifiers - Single
• Series STTH15L06
• Product Ultra Fast Recovery Rectifiers
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.070548 oz
• Mounting-Style SMD/SMT
• Package-Case TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
• Mounting-Type Surface Mount
• Supplier-Device-Package D2PAK
• Configuration Single
• Speed Fast Recovery = 200mA (Io)
• Diode-Type Standard
• Current-Reverse-Leakage-Vr 15μA @ 600V
• Voltage-Forward-Vf-Max-If 1.55V @ 15A
• Voltage-DC-Reverse-Vr-Max 600V
• Current-Average-Rectified-Io 20A
• Reverse-Recovery-Time-trr 85ns
• Capacitance-Vr-F -
• Operating-Temperature-Junction 175°C (Max)
• Maximum-Operating-Temperature + 175 C
• Minimum-Operating-Temperature - 65 C
• Vf-Forward-Voltage 1.55 V at 15 A
• Vr-Reverse-Voltage 600 V
• Ir-Reverse-Current 15 uA
• If-Forward-Current 20 A
• Max-Surge-Current 130 A
• Recovery-Time 85 ns
